Plessey

6 WAY MALE & FEMALE PAIR MULTI WAY PLESSEY CONNECTORS fba15c

6 WAY MALE & FEMALE PAIR MULTI WAY PLESSEY CONNECTORS fba15c

£15.00
£15.00
Sale Sold out
Taxes included.

6 WAY PLUG & SOCKET

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

This type is a matching 6 way male and female pair, with 2 hole mounting plates. Solder tag connections.

Two of the connections are at a 90 degree angle to the other four, thus avoiding an incorrect connection.

Only the connector bodies are supplied, used with some heat shrink tubing or other substitute for a housing (if required) they offer a quality pair of connections at a good price.

Superb vintage military specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

 Rated as high as 1000V working, and upto 10A 250V per contact.

Dimensions of the bodies are approx 24mm x 17mm and the mounting plates have securing holes at approx 27mm centres.

 New and unused vintage stock.

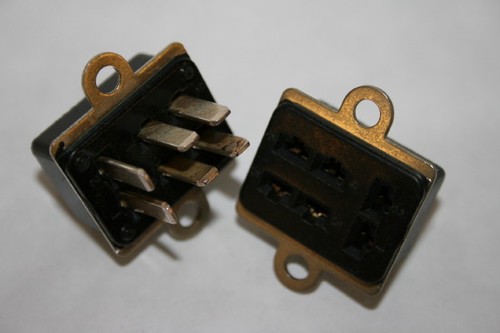

 SUPPLIED AS SHOWN IN THE PHOTO.
