6 POSITION MULTI / POLE WAY NSF WAFER ROTARY MILITARY QUALITY SWITCH fd7d83

6 POSITION MULTI / POLE WAY NSF WAFER ROTARY MILITARY QUALITY SWITCH fd7d83

£25.00
£25.00
Sale Sold out
Taxes included.

6 POSITION 2 WAFER ROTARY SWITCH

Manufactured by NSF to military specifications these are a premium quality old style stacked wafer rotary switch, with silver plated contacts.

Interesting configuration of poles and ways, set over 2 wafers.

Position 1 Wafer 1 has nothing, Wafer 2 has 1 pole 1 way.
Position 2 Wafer 1 has nothing, Wafer 2 has nothing.
Positions 3 - 6 Wafer 1 has 2 poles 4 ways, Wafer 2 has 1 pole 1 way.

All are break before make.

Behind panel dimensions are roughly 45mm long x 38mm across, and the control shaft is standard 6.3mm diameter, and approximately 15mm long, plus the mounting bush (10mm deep) which requires a 10mm hole for mounting.

NEW OLD STOCK, LOVELY QUALITY INSTRUMENT CONTROL SWITCH

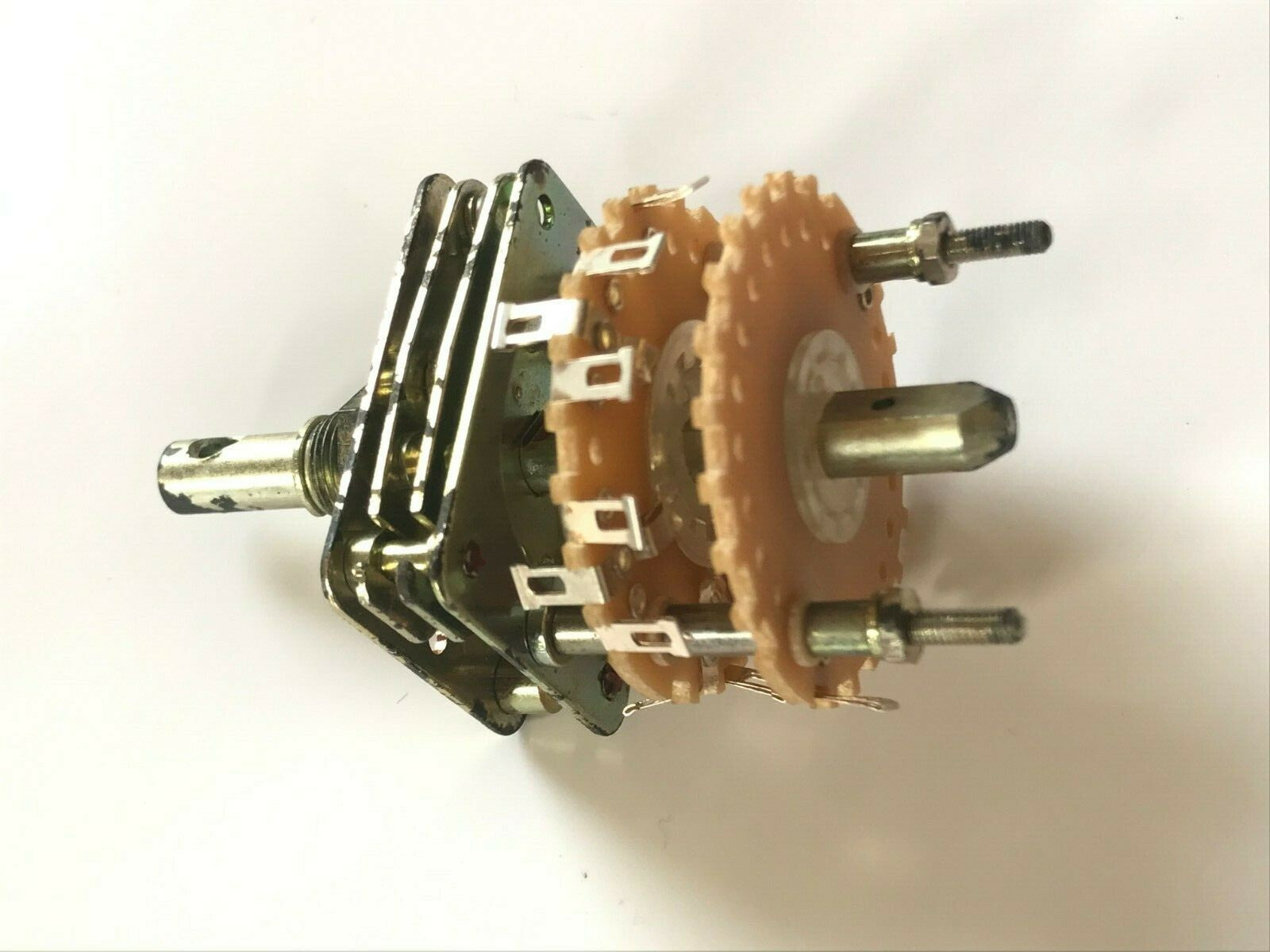

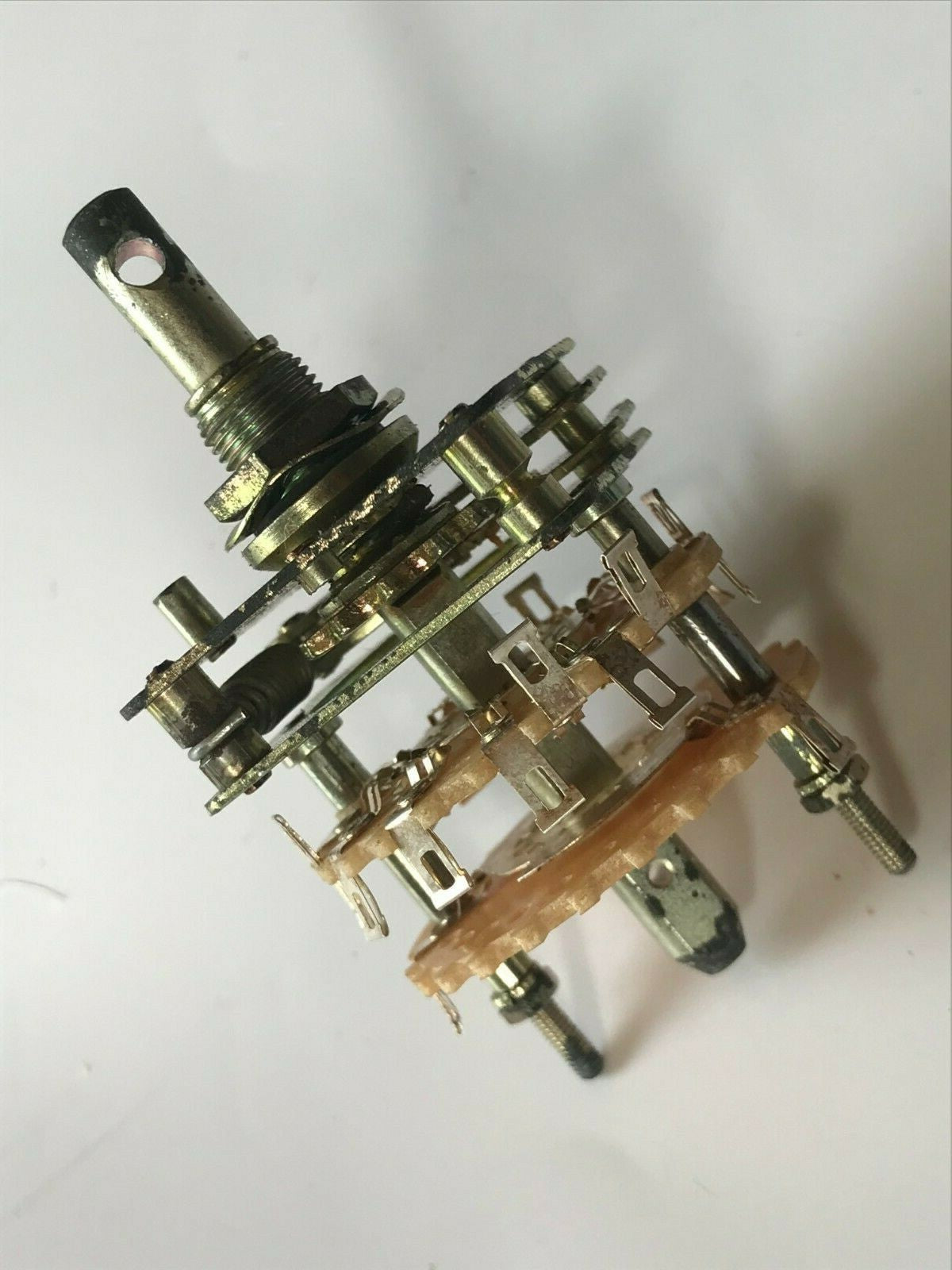

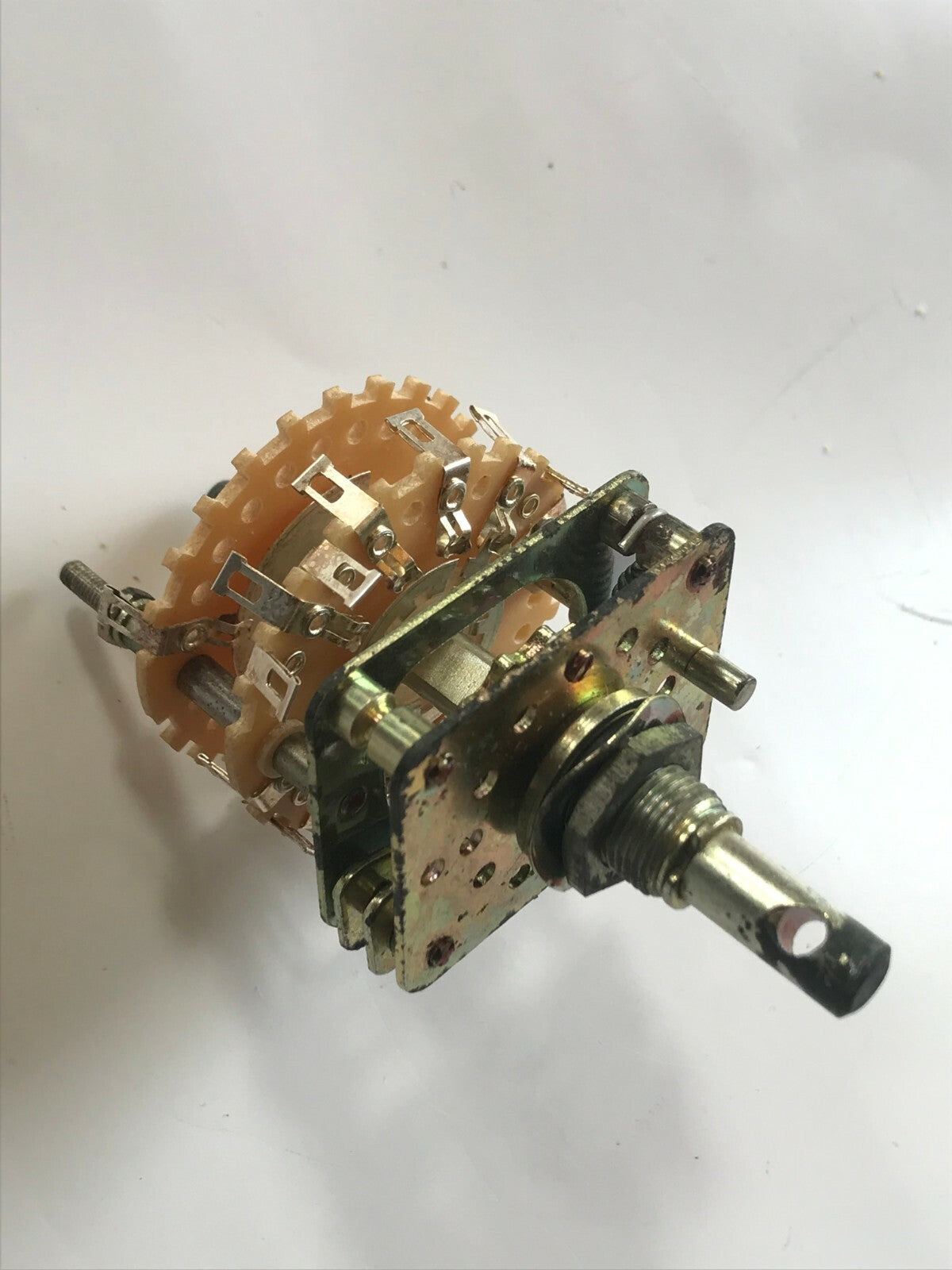

SUPPLIED AS SHOWN IN THE PHOTO.
