5V - 6V DC LATCHING HIGH POWER RELAY 100A CONTACTS WILL TTL SWITCH x1 - 20 fba13

5V - 6V DC LATCHING HIGH POWER RELAY 100A CONTACTS WILL TTL SWITCH x1 - 20 fba13

£10.00
£10.00
Sale Sold out
Taxes included.
HOW MANY

6V LATCHING RELAYS 100A CONTACTS

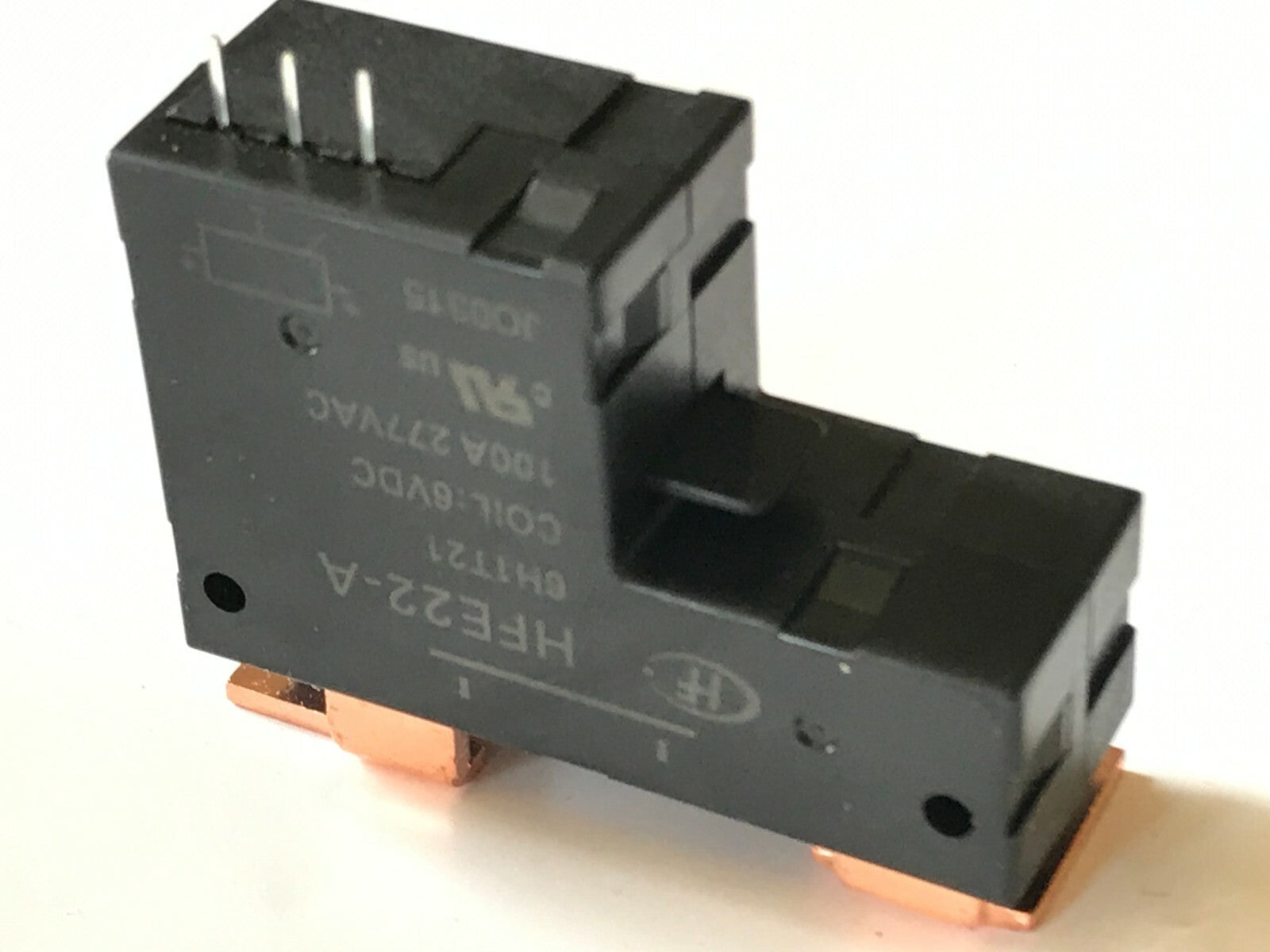

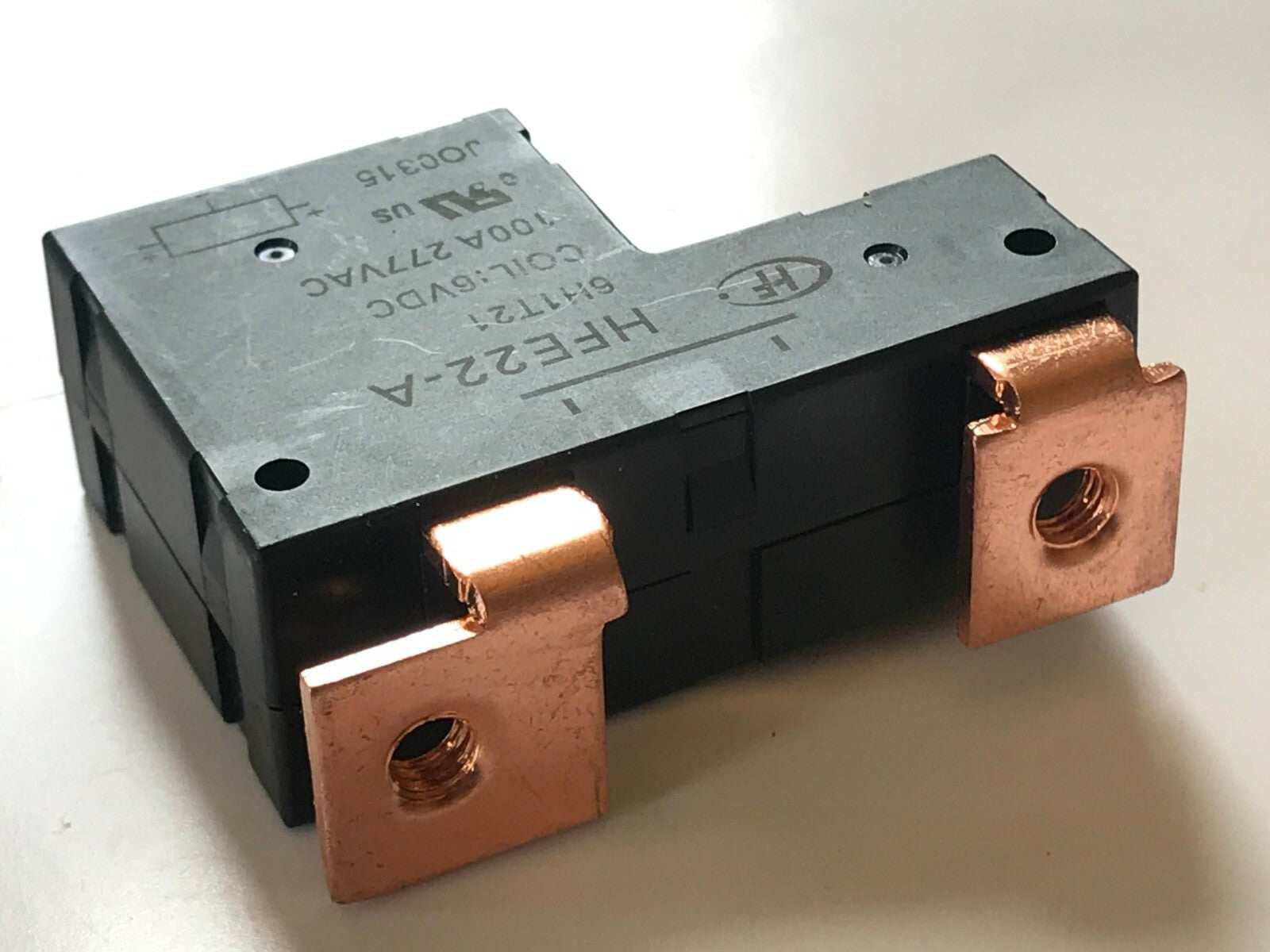

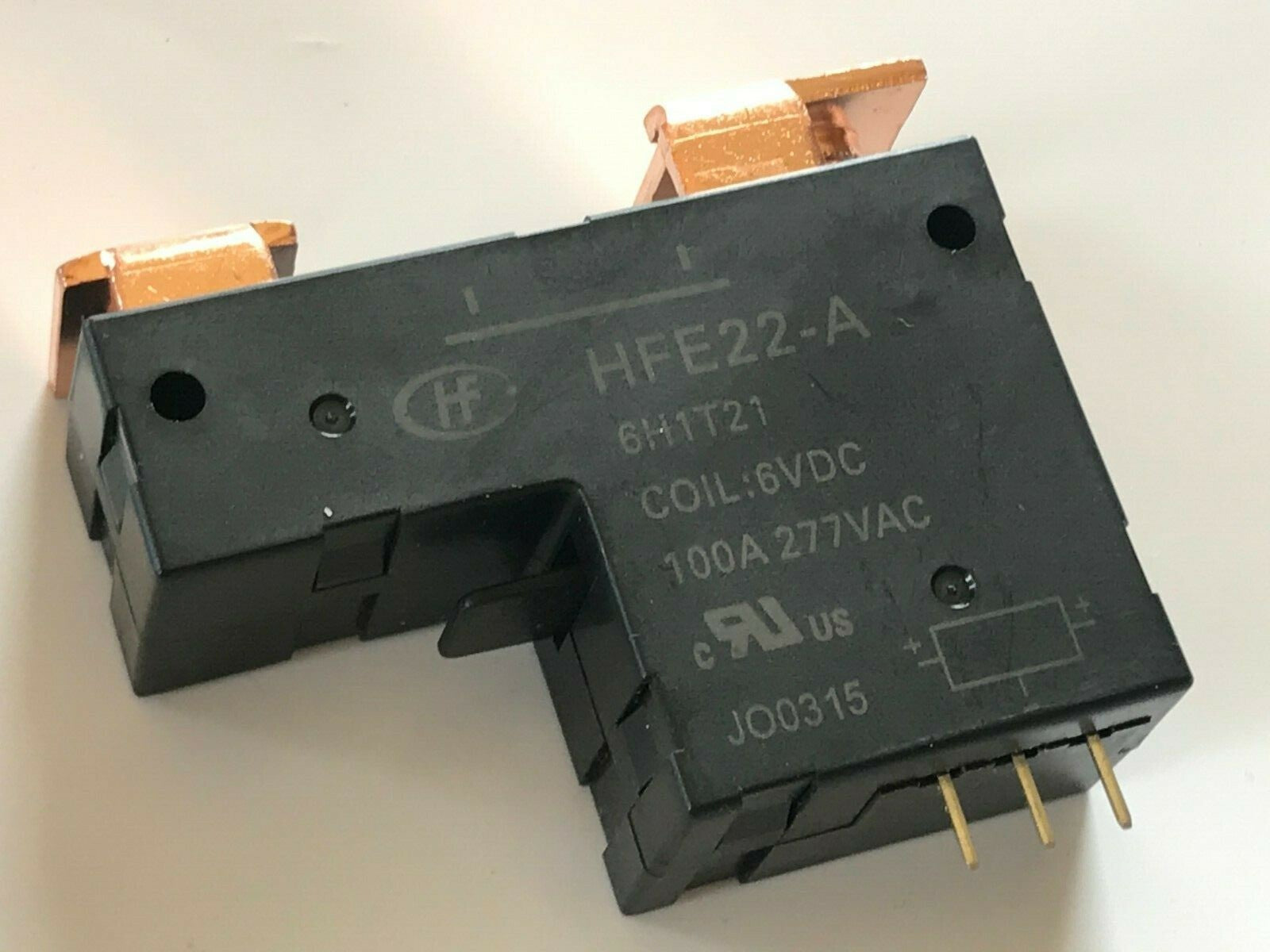

Manufactured by Hongfa as their part number
HFE22-A-006H1T21 these are a premium quality industry standard 6V coil high power latching relays.

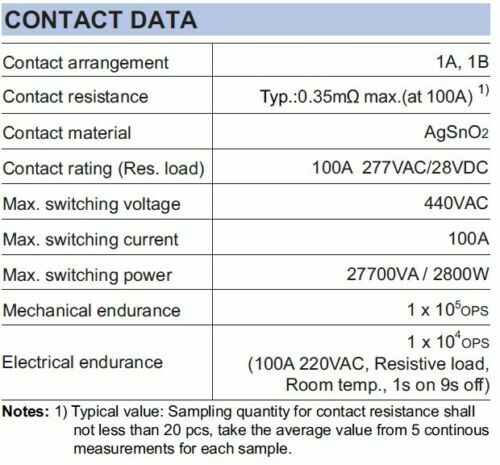

Quite sensitive - they easily come in on 5V so ideal for TTL interfacing,  SPST silver plated latching contacts rated to 100A at 270Vac.

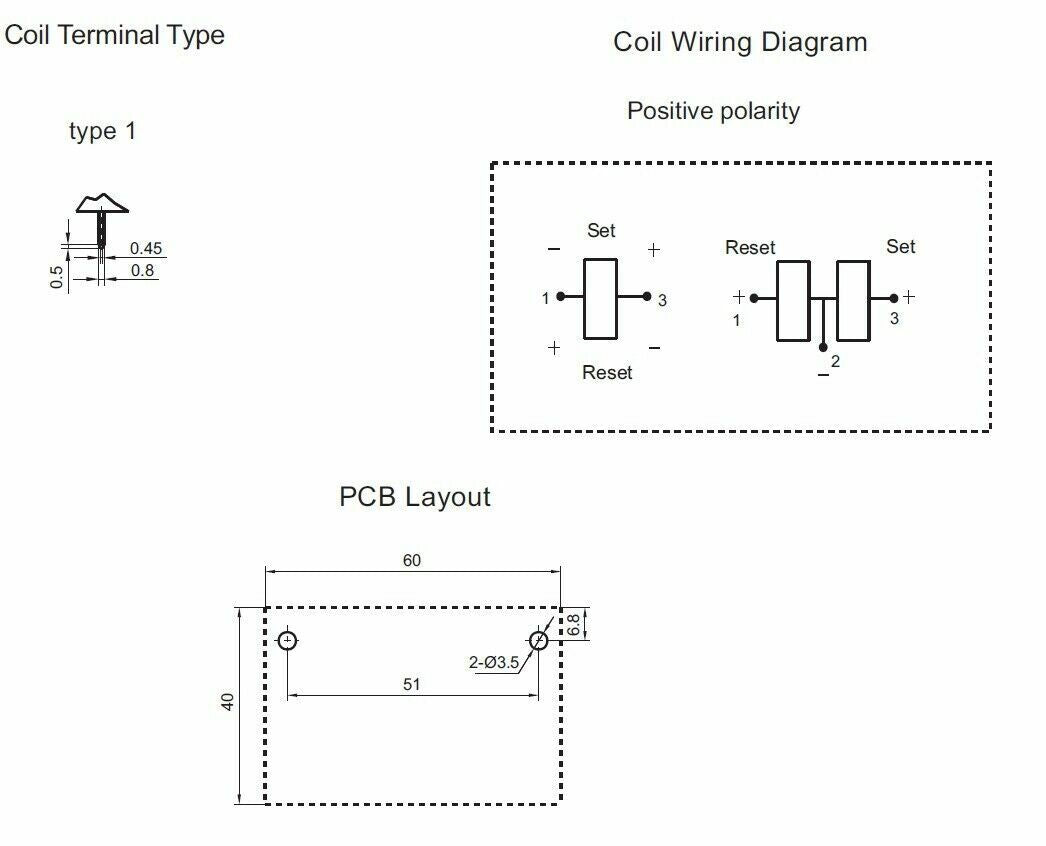

So effectively a 6V controlled 100A on / off switch, - it has 3 control terminals, one is common, one makes or closes the relay contact, and one opens or breaks the contacts.

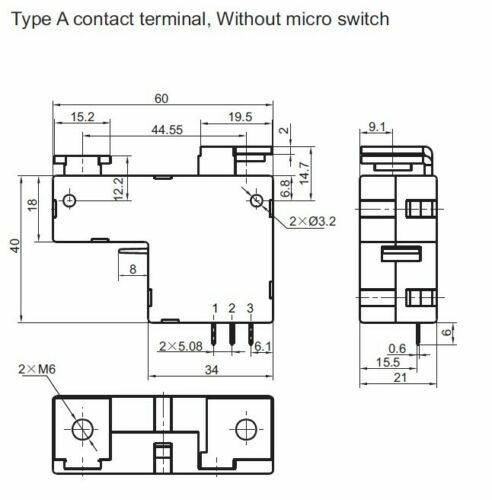

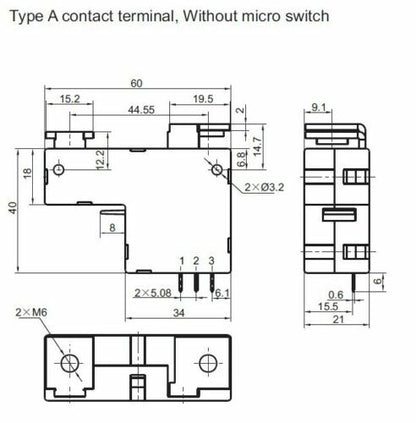

 Please see photo for exact dimensions but overall they are roughly  60 × 54 including connections × 21 (mm)

There is also a little plastic leaver that allows manual control of the contacts
