EUROCLAMP

5 WAY PCB CONNECTOR PLUG & SOCKET 3.81.mm PITCH VERY NEAT EUROCLAMP ad1P51

Name: 5 WAY PCB CONNECTOR PLUG & SOCKET 3.81.mm PITCH VERY NEAT EUROCLAMP ad1P51
Brand: EUROCLAMP
Price: 4.00 GBP
Availability: InStock

£4.00

Sale Sold out

Taxes included.

Quantity

Manufactured by Euroclamp in Italy, these are very neat lovely quality miniature circuit board connectors.

They consist of a 3.81mm pitch circuit board mount (through hole) female, and a cable mounted 5 way male, that has screw terminals for the wires.

Polarised so they cannot be connected the wrong way round, they provide a very neat solution to take connections off from a circuit board, and a very secure positive connection.

For the female:

Pitch: 3,81 mm

Housing height: 7,25 mm

Housing depth: 9,20 mm

Connectors are rated to 160V and 11A.

We also sell the plugs and sockets individually, just search our items with 'Euroclamp' and you will find all the types.

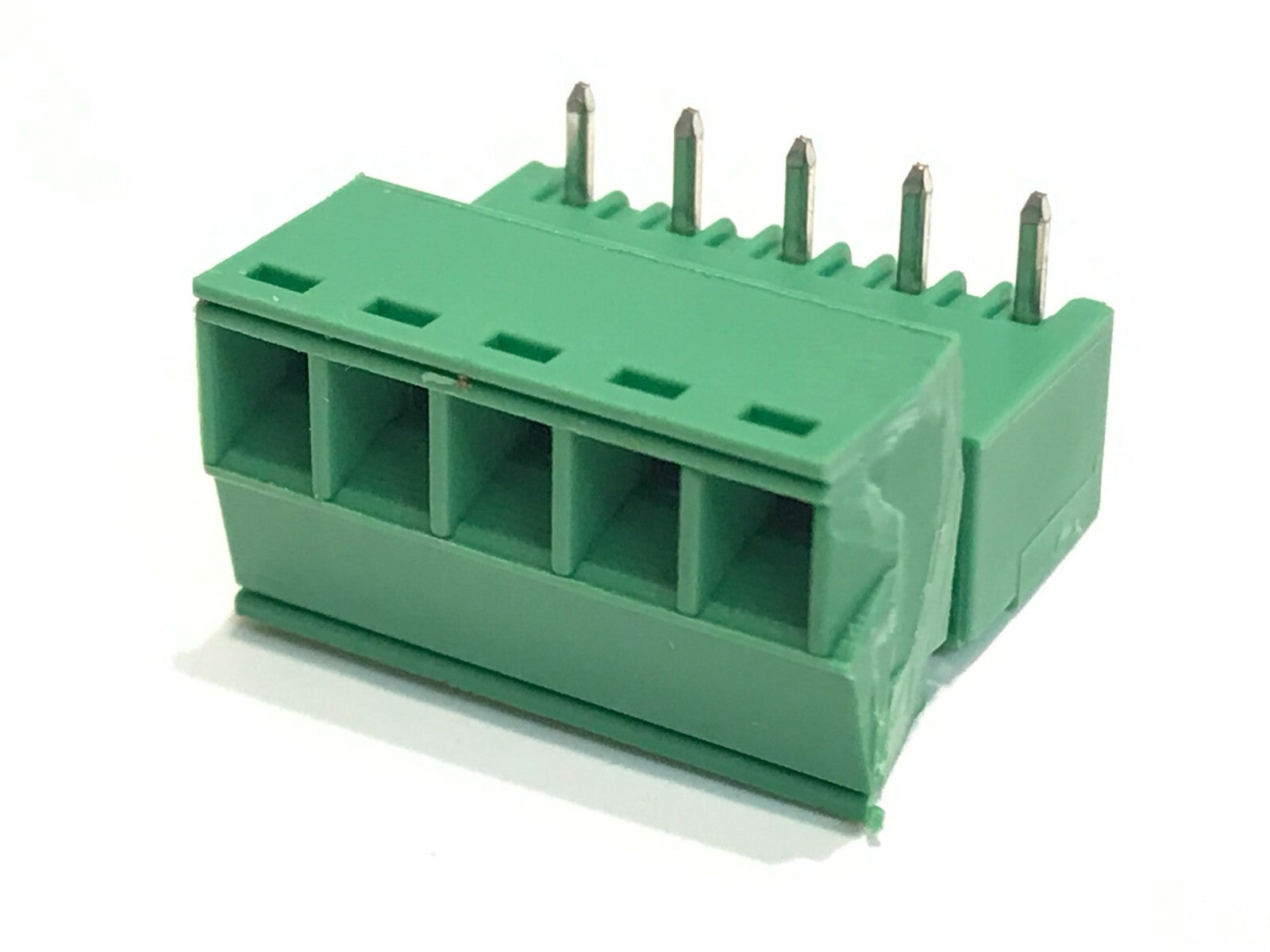

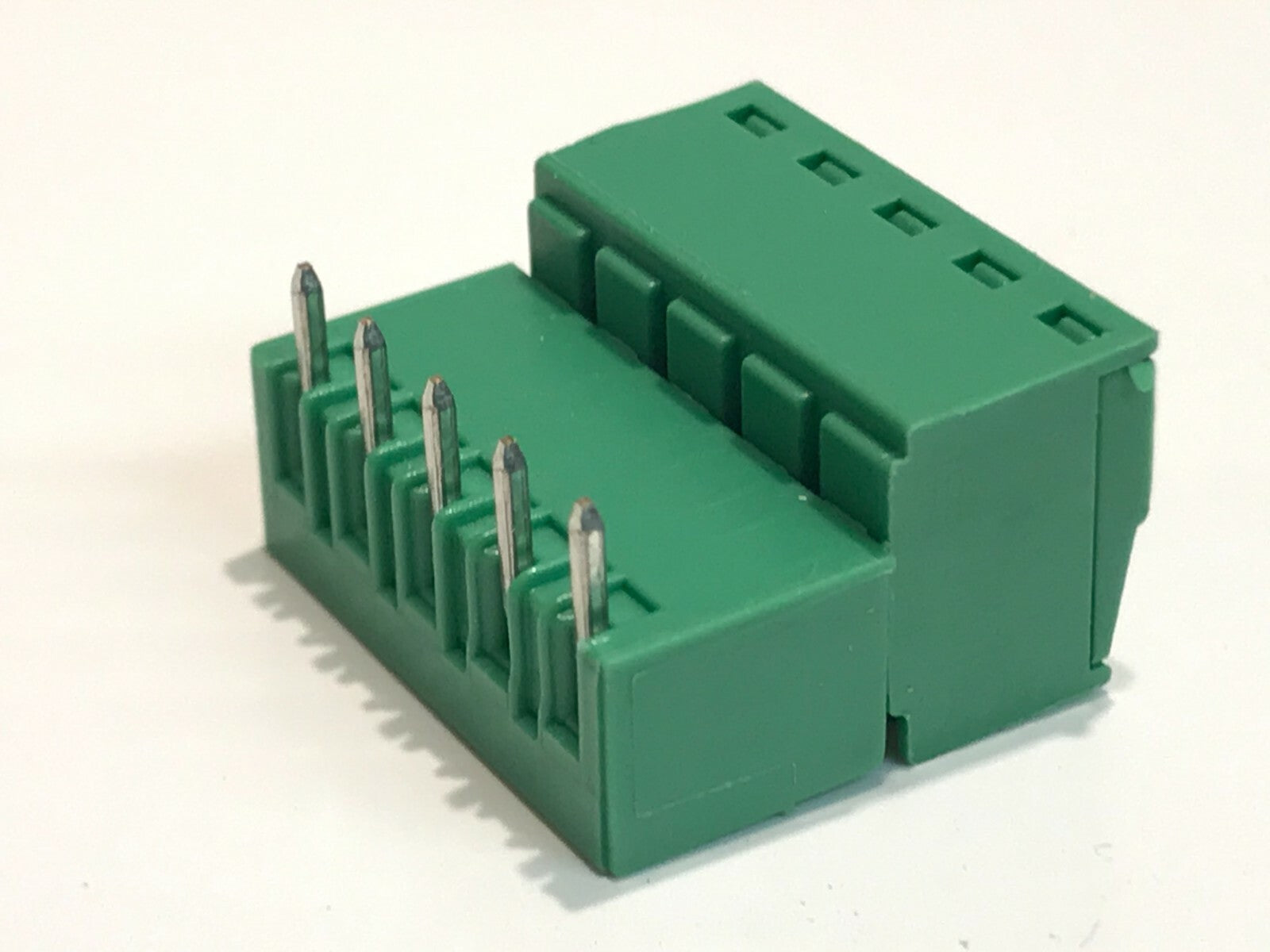

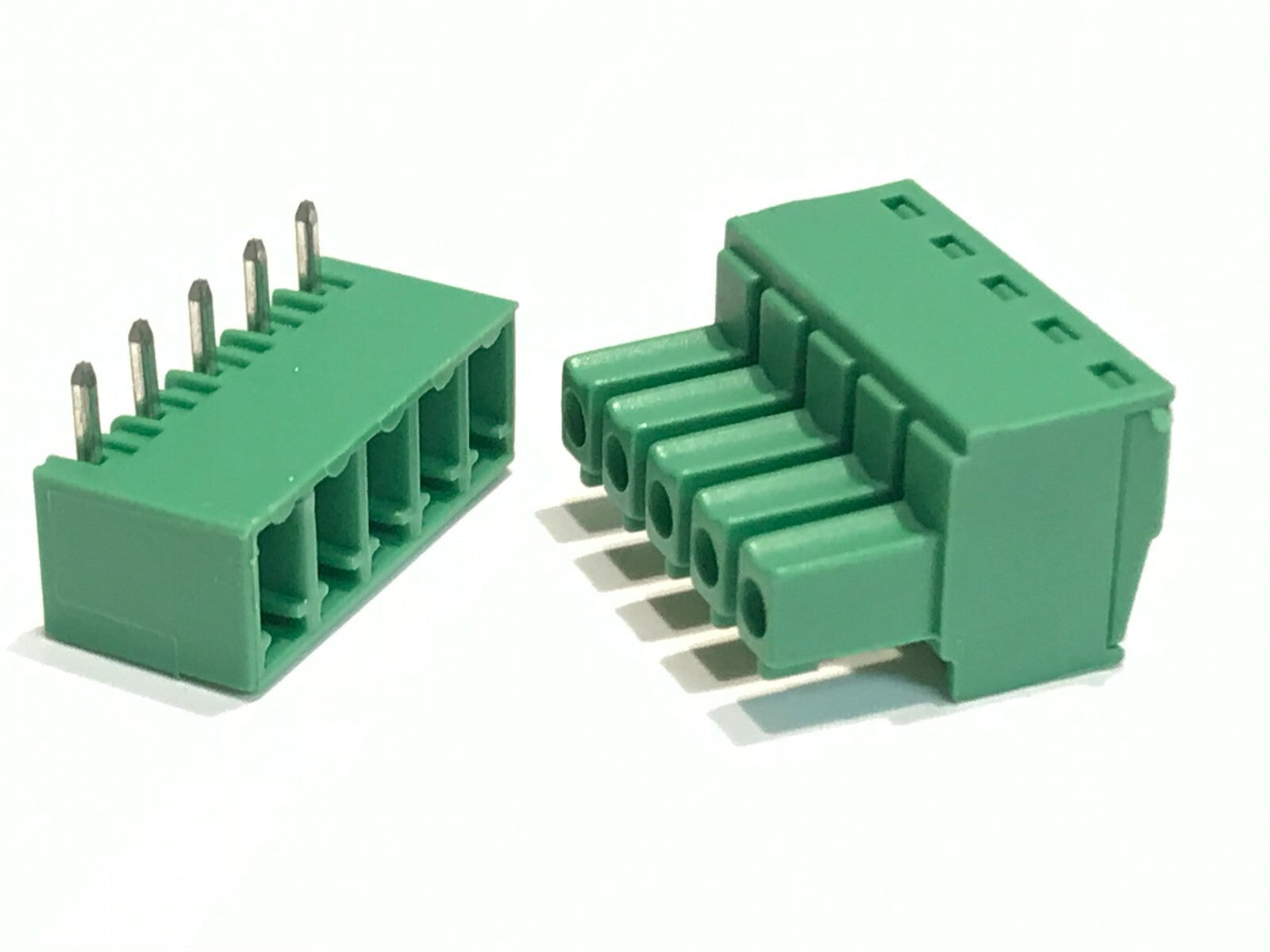

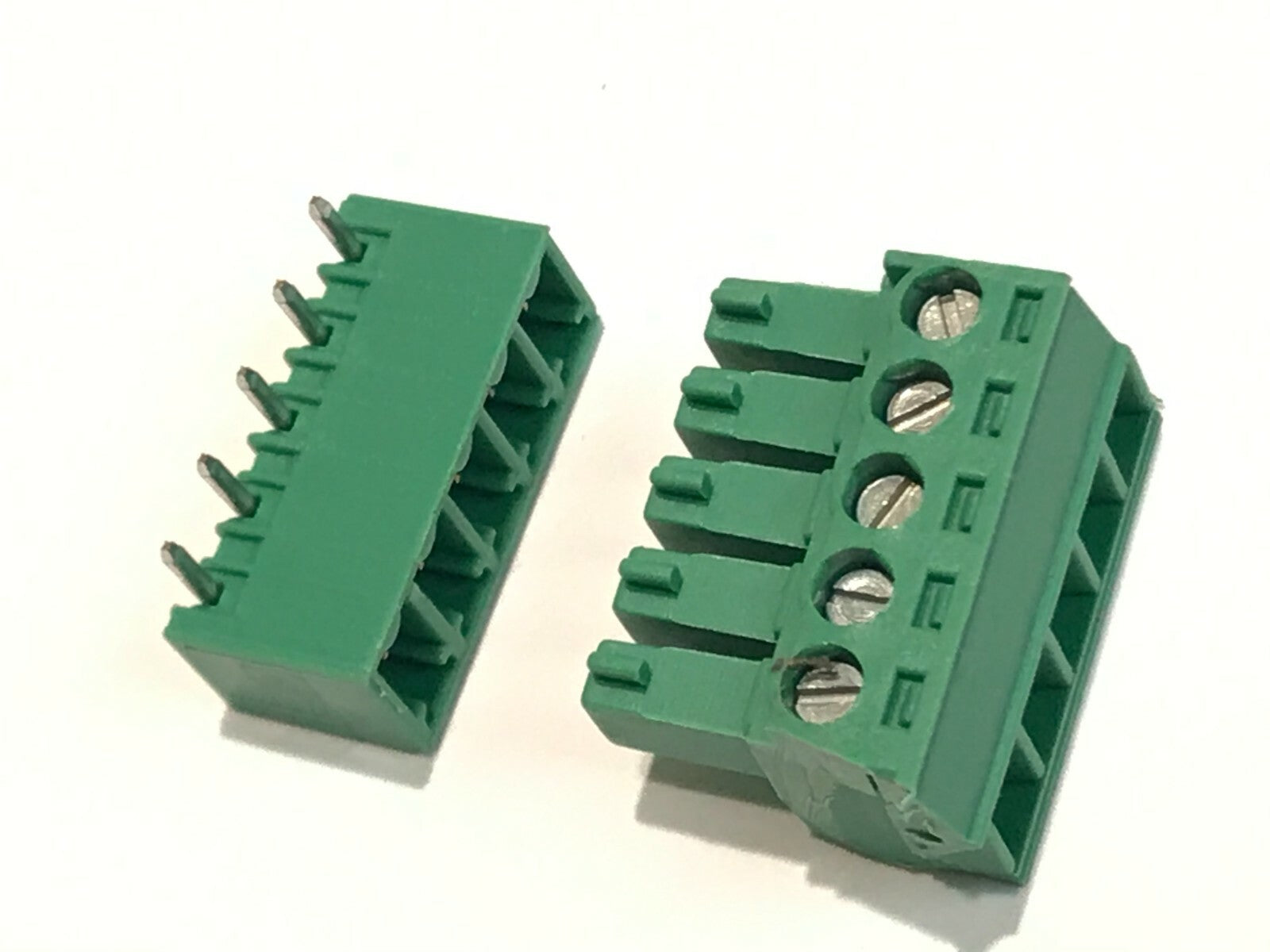

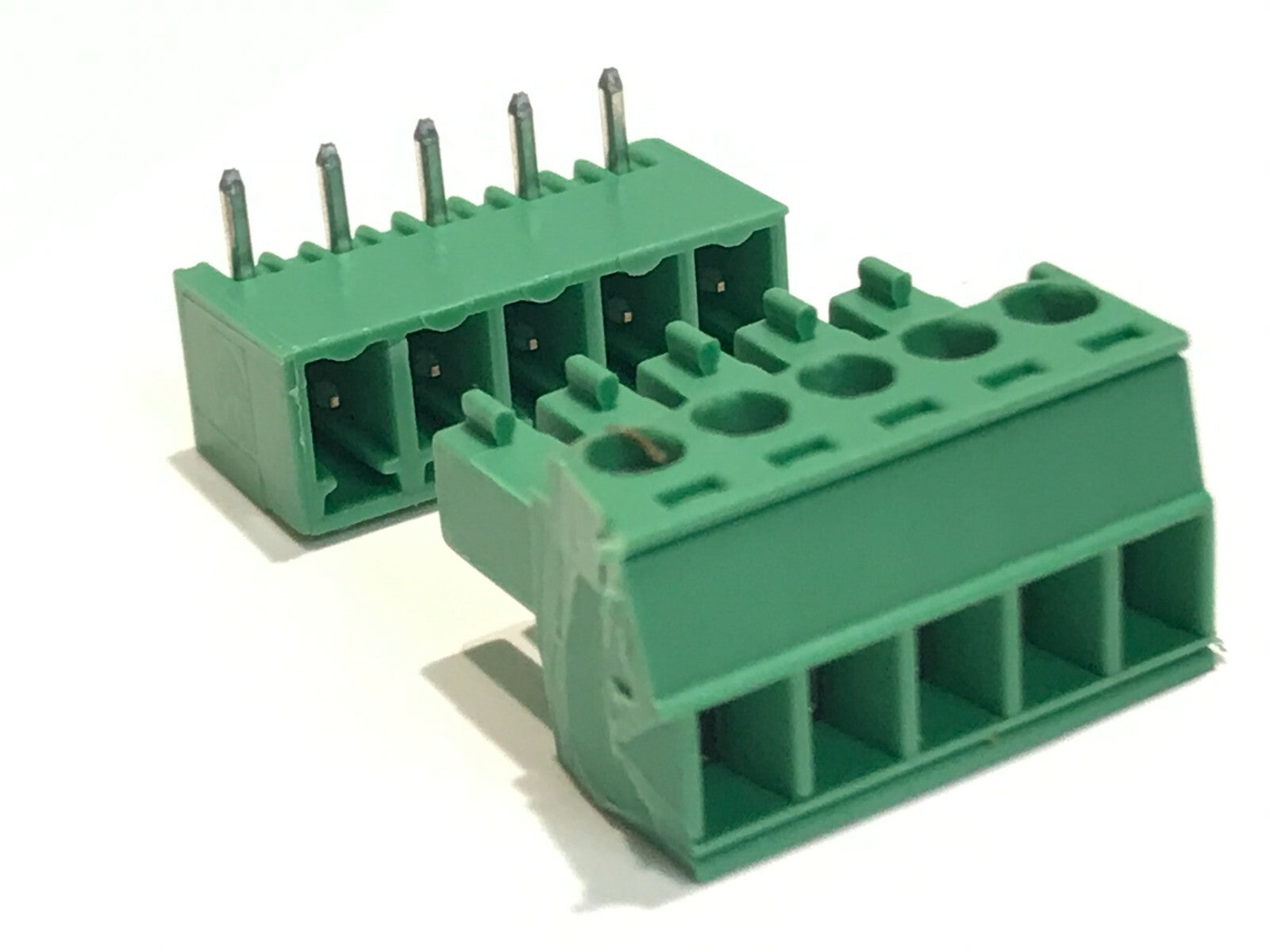

Supplied as shown in the photograph.
