4 WAY PCB TERMINAL BLOCK CONNECTOR 5mm PITCH 17.5A BEST QUALITY EUROCLAMP blb129

4 WAY PCB TERMINAL BLOCK CONNECTOR 5mm PITCH 17.5A BEST QUALITY EUROCLAMP blb129

£1.50
£1.50
Sale Sold out
Taxes included.
HOW MANY

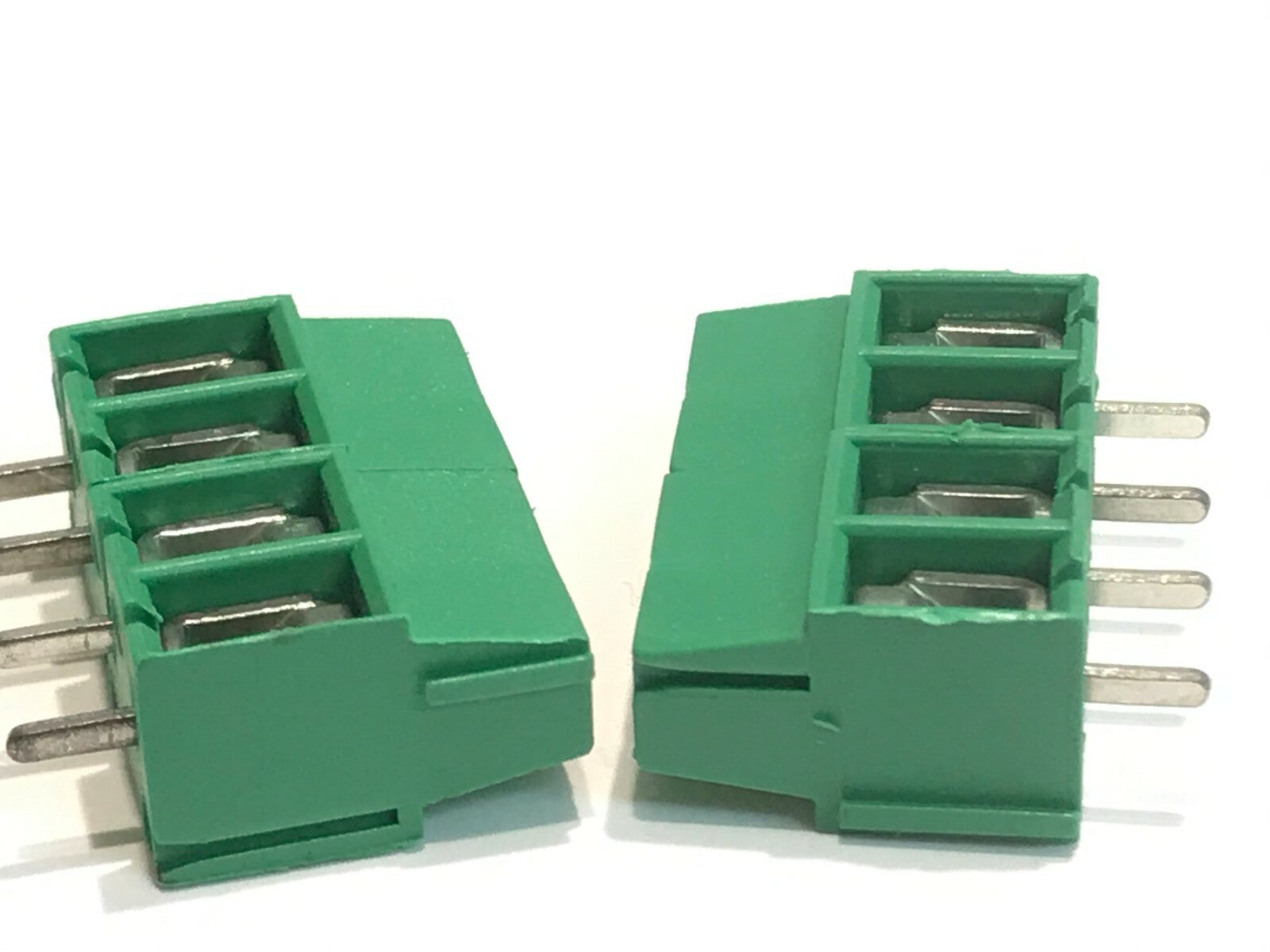

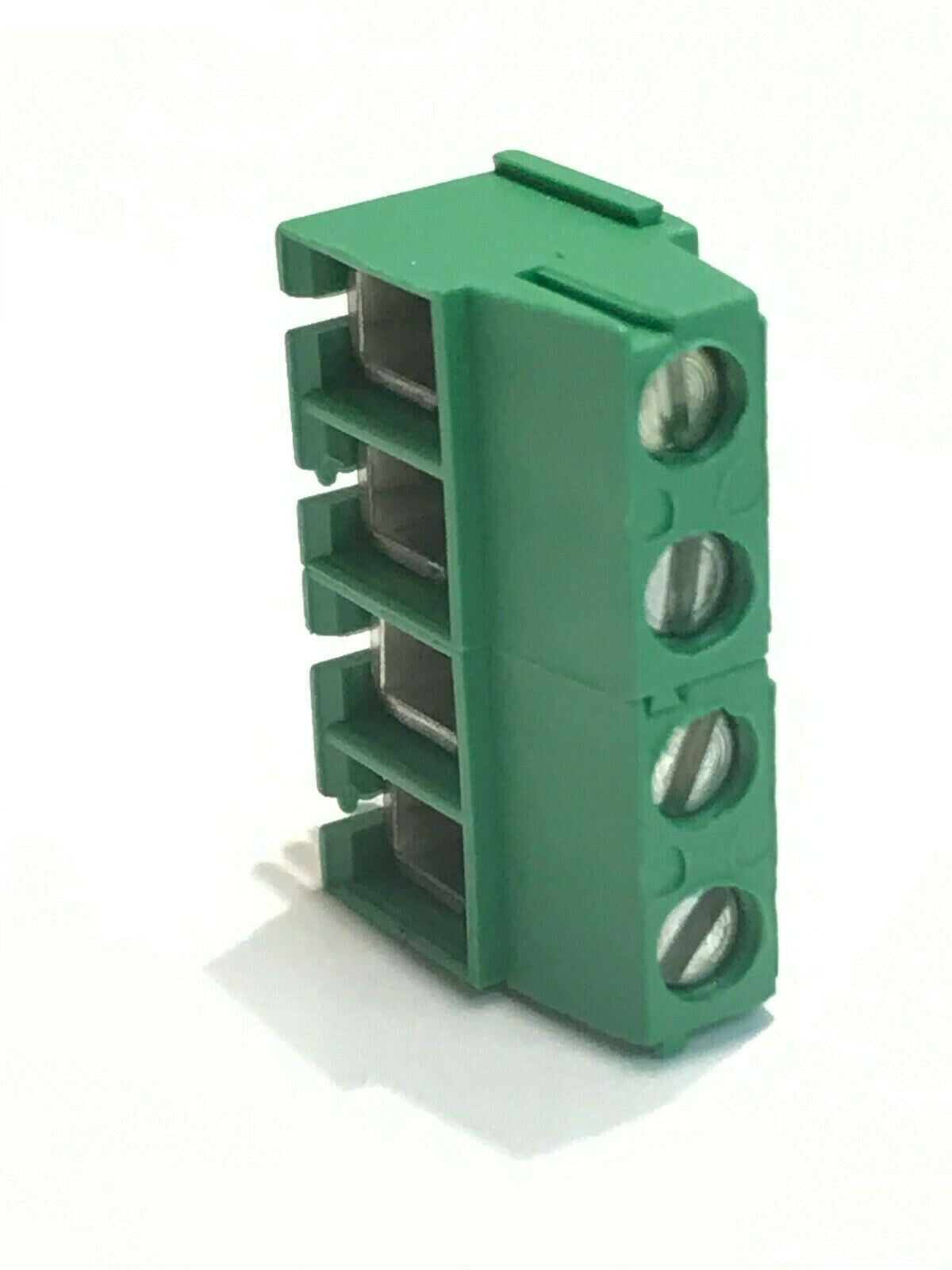

4 WAY PCB TERMINAL CONNECTION BLOCKS

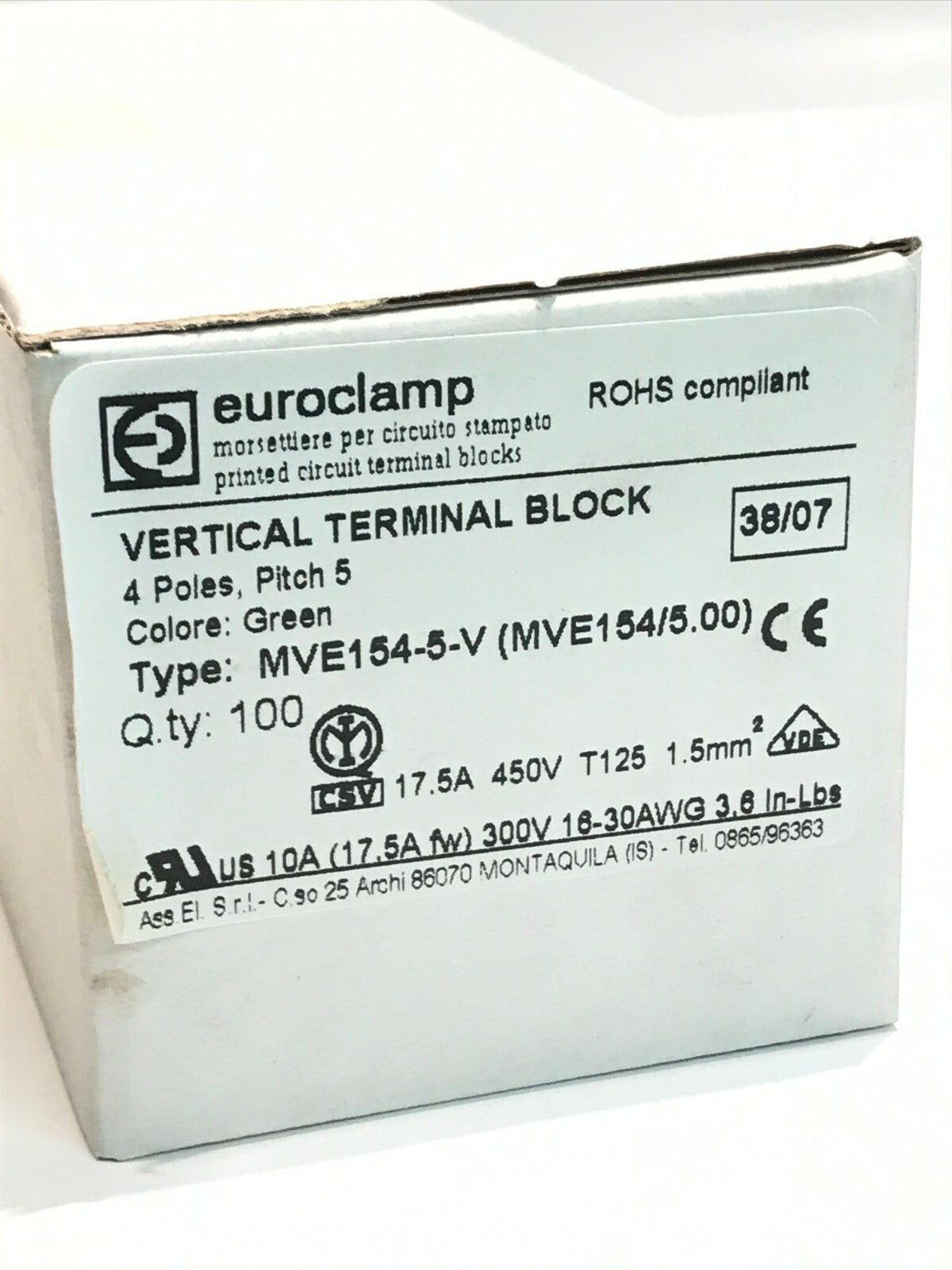

Manufactured in Italy by Euroclamp as their part number
MVE154-5-V these are premium quality industry standard printed circuit board terminal connection blocks.

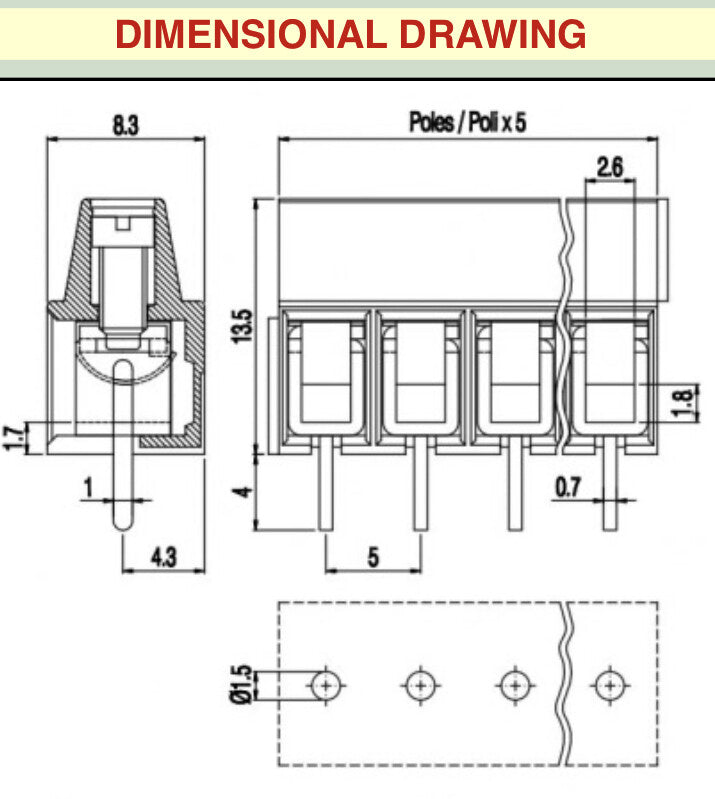

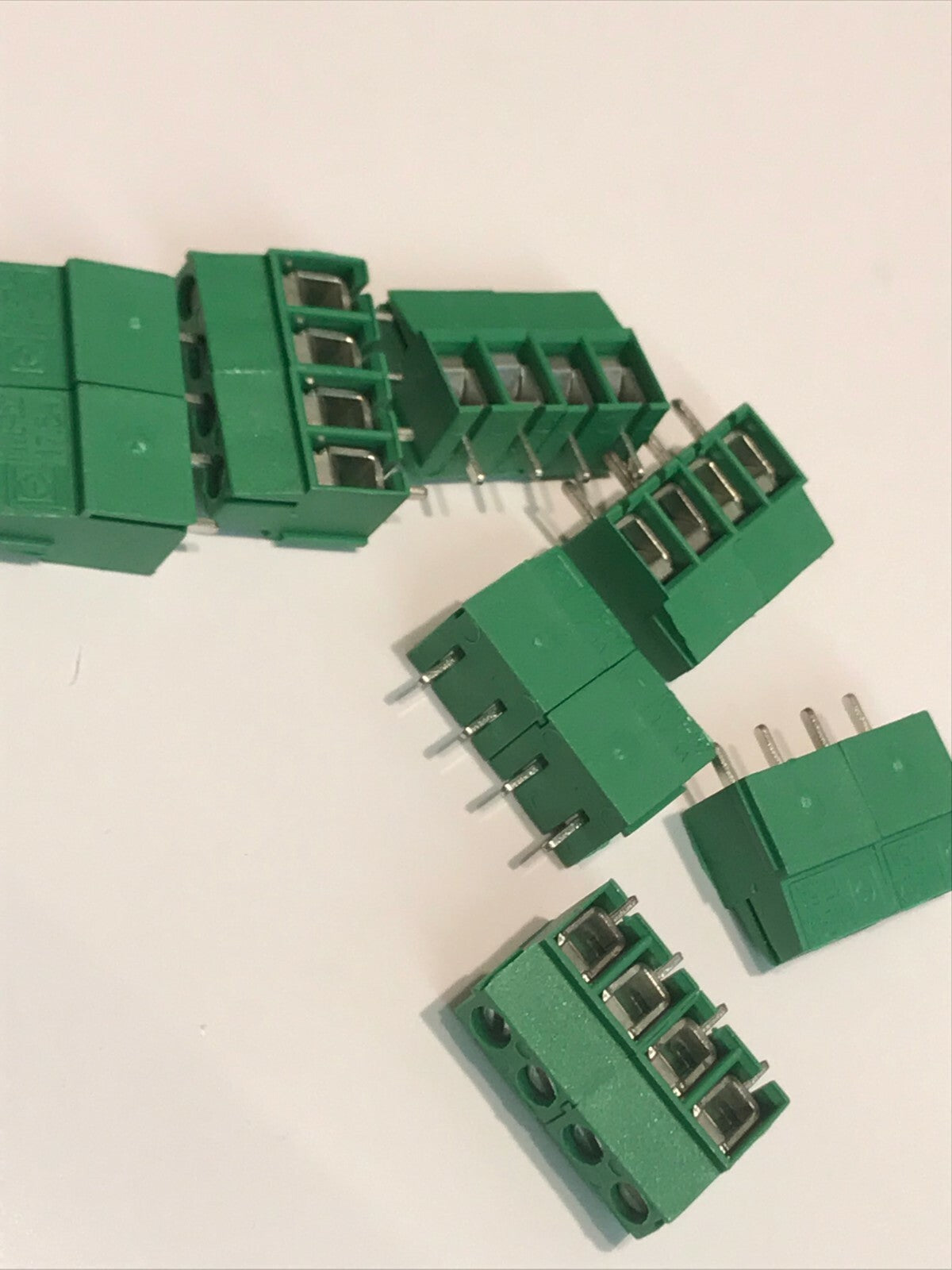

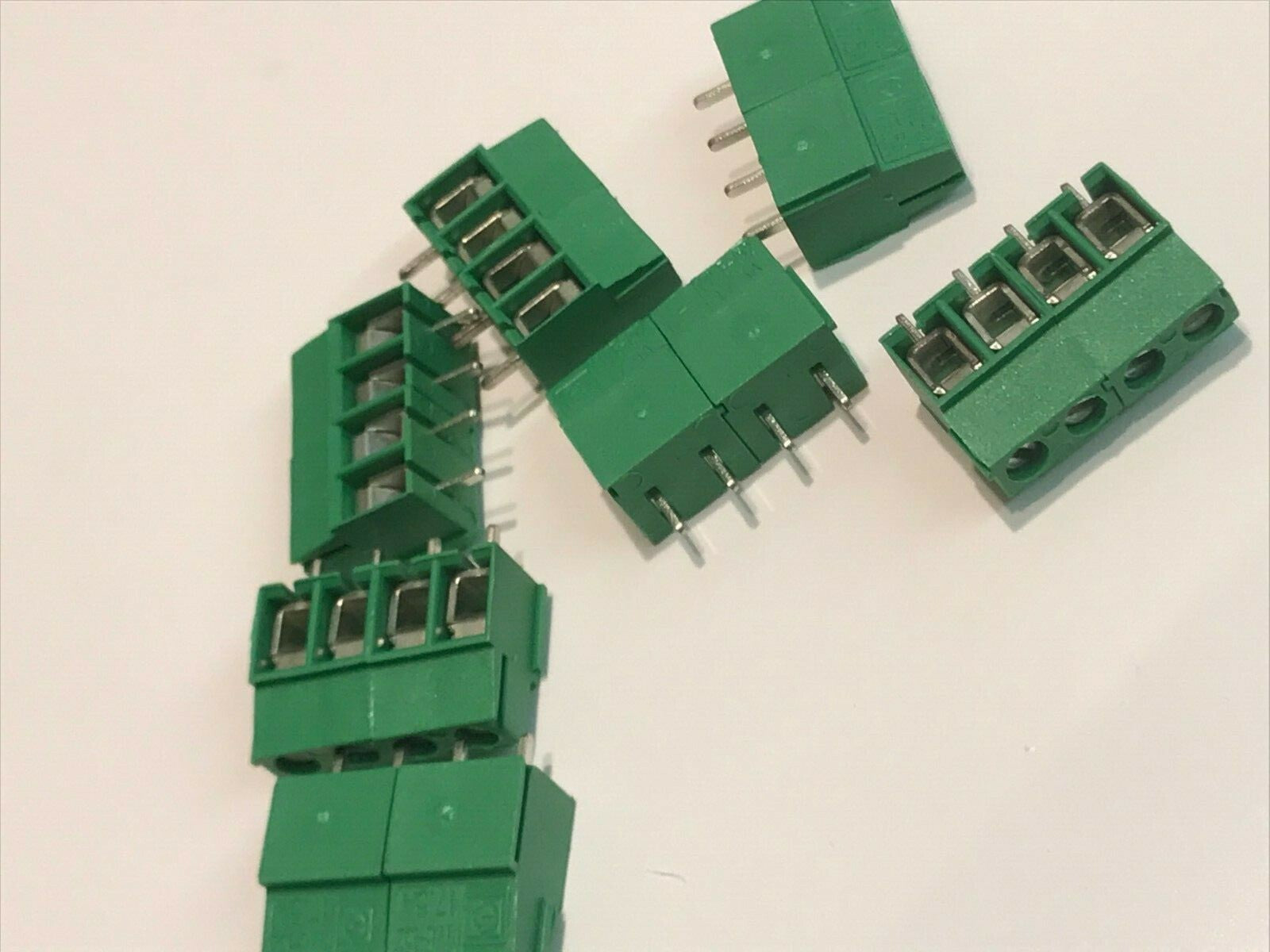

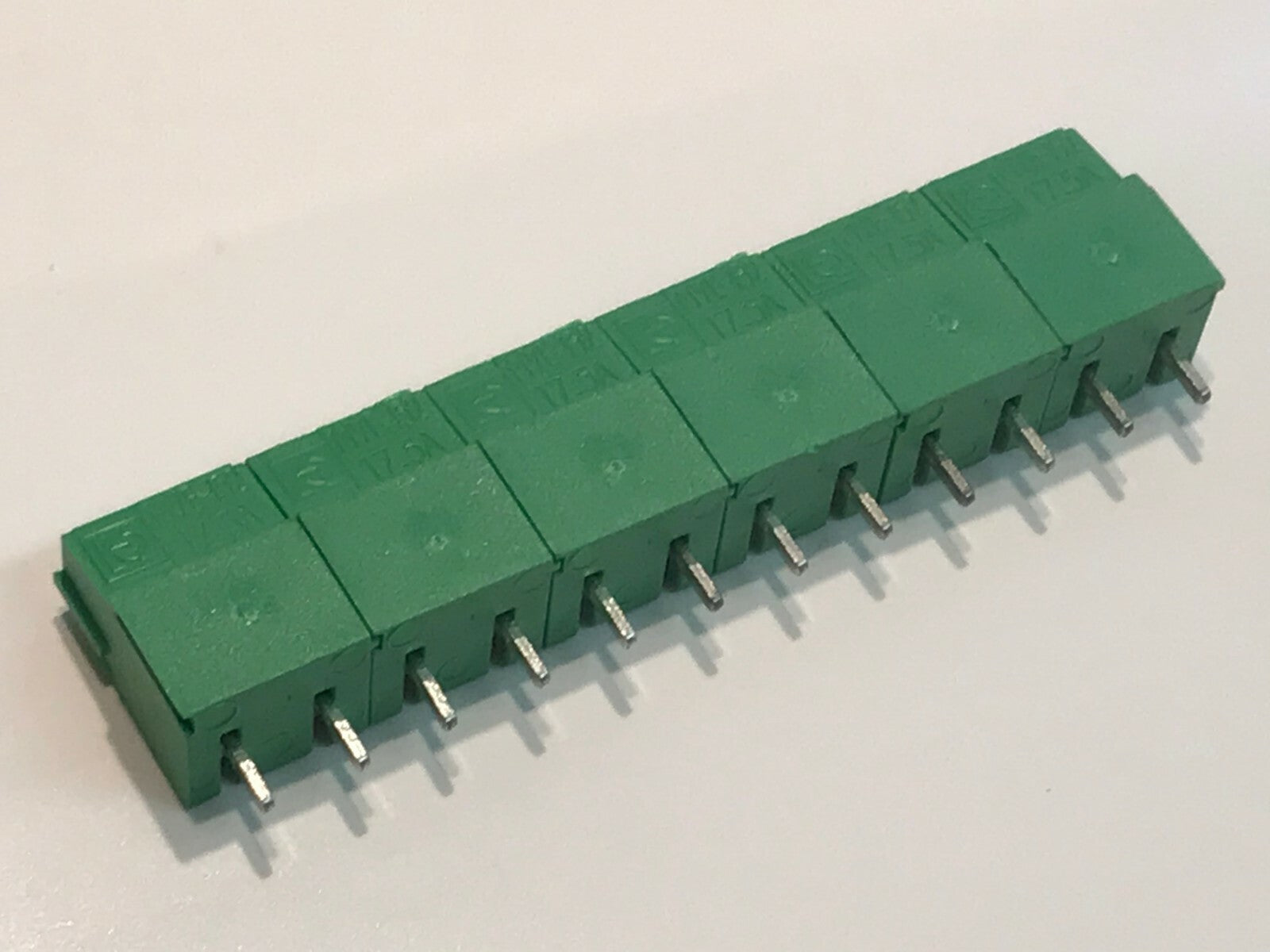

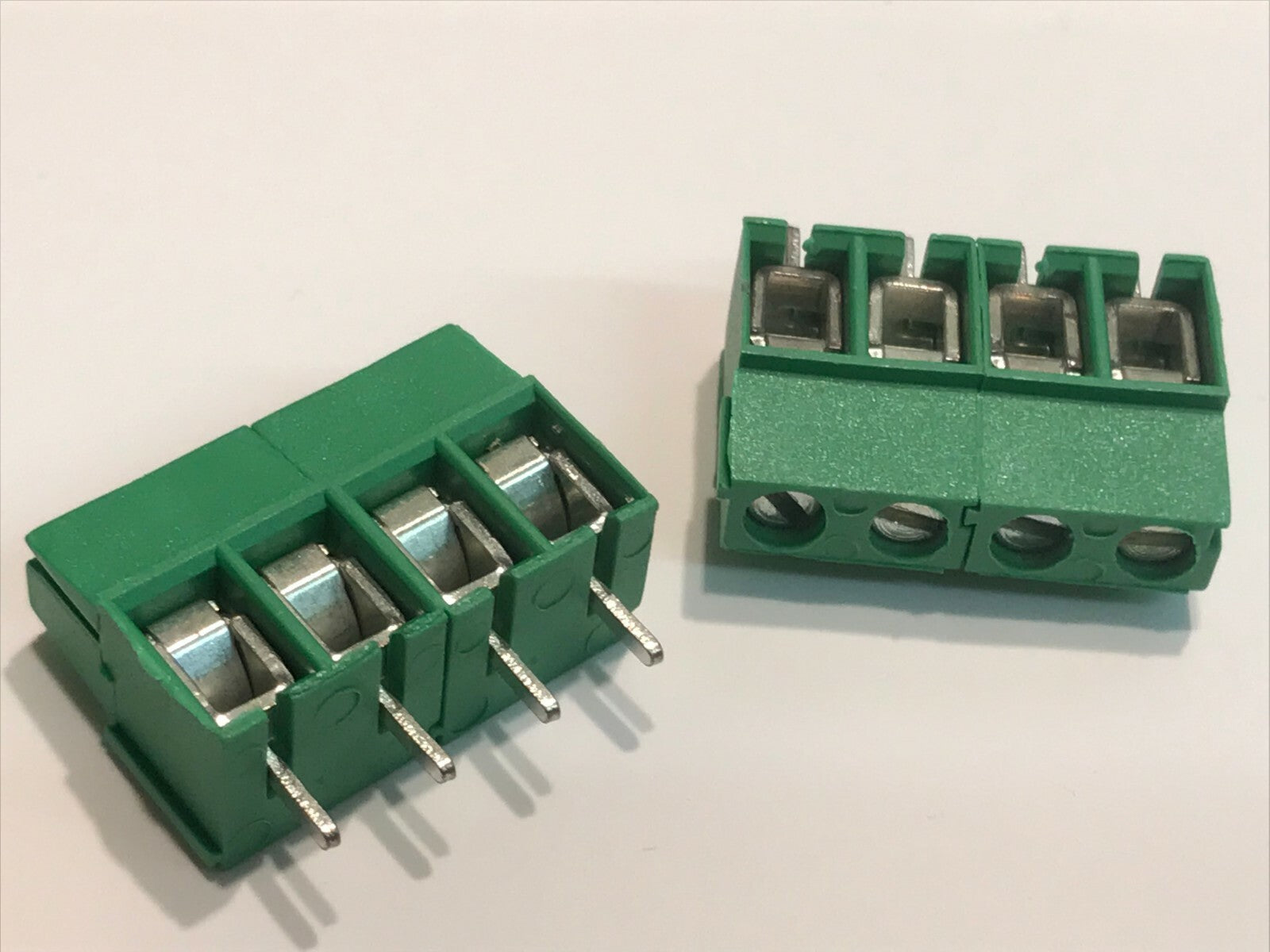

These ones are 4 ways and are modular, so you can join multiple blocks together. They also split down into blocks of 2.  For the exact dimensions see the drawing in the photos above.

5mm hole pitch, and rated to 17.5A at 450V.

GENERAL INFORMATION

Pitch: 5 mm
Housing height: 13,50 mm
Housing depth: 8,30 mm
Wire section: 1.5 mm² / 16 AWG
Clamp opening size: 2.6 × 1.8 mm
Wire stripping:     max 7 mm

ELECTRICAL CHARACTERISTICS Current: 17.5A
Voltage: 450V
Test voltage: 2.5 kVrms/60s
These are lovely quality, not the cheap Chinese rubbish.
Free UK postage included in prices, makes them very good value.
