4 WAY MINI PCB TERMINAL BLOCK CONNECTOR 3.5mm PITCH 10A BEST QUALITY blb157

4 WAY MINI PCB TERMINAL BLOCK CONNECTOR 3.5mm PITCH 10A BEST QUALITY blb157

£1.50
£1.50
Sale Sold out
Taxes included.
HOW MANY

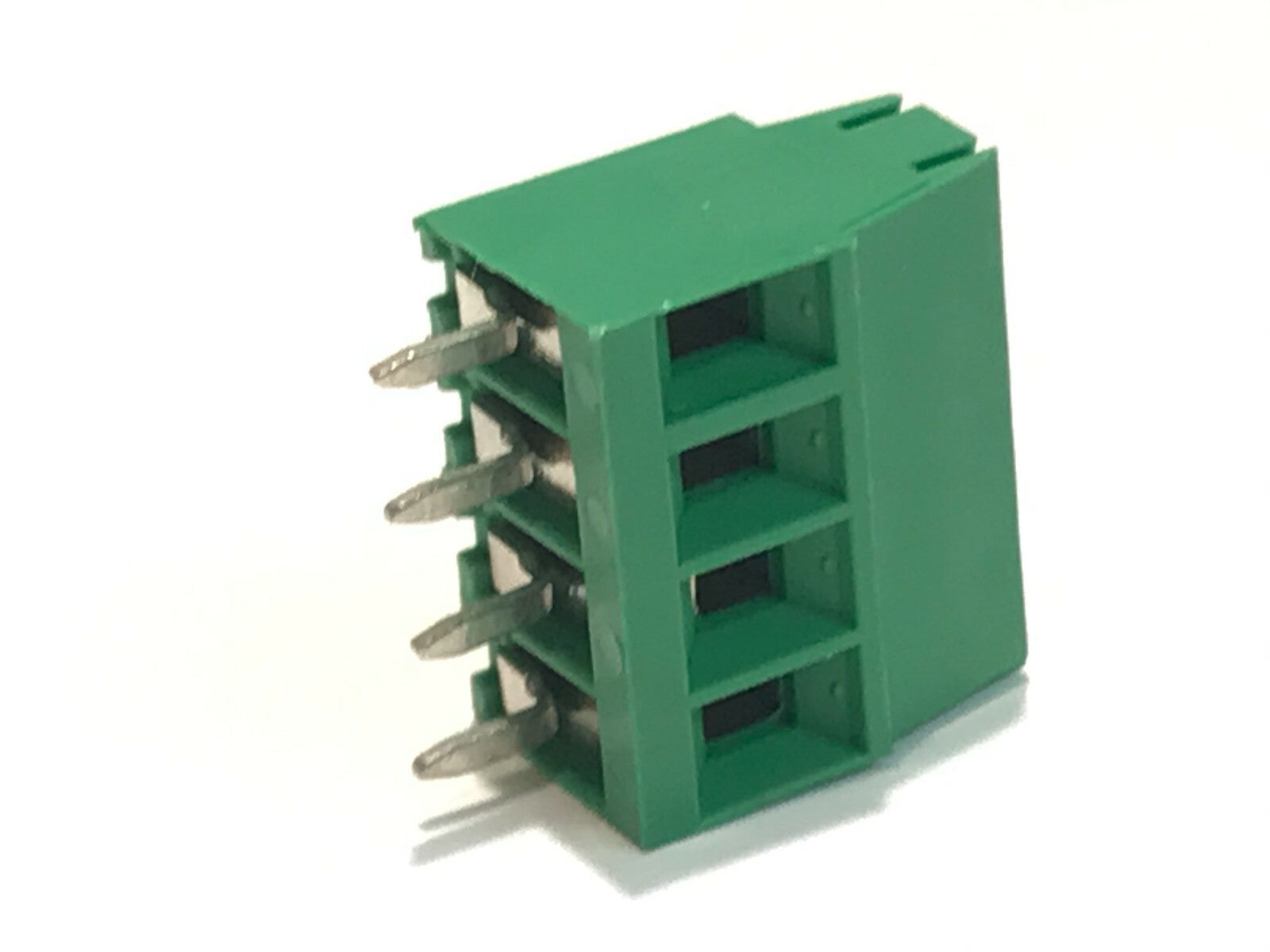

4 WAY MINI PCB TERMINAL CONNECTION BLOCKS

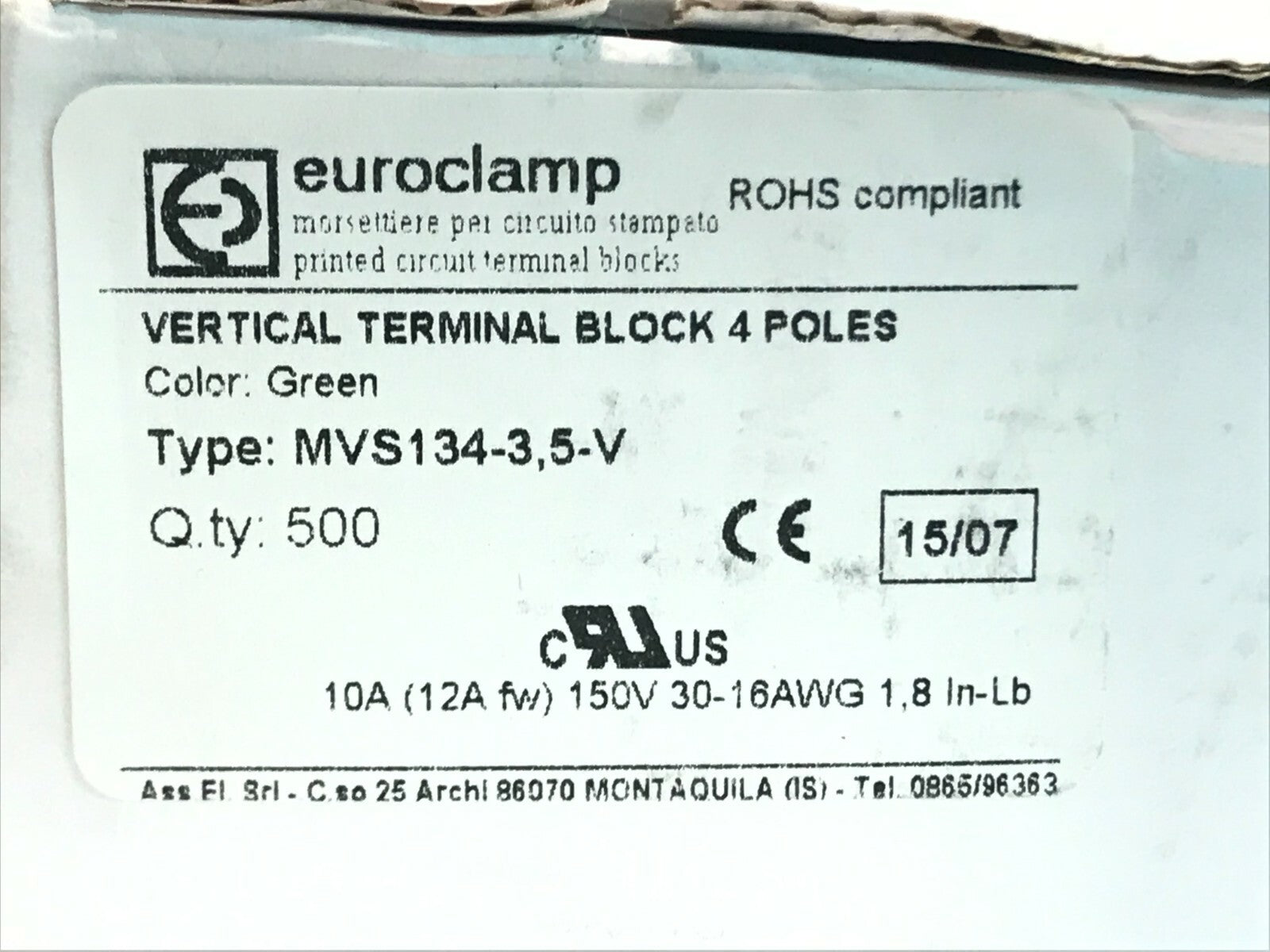

Manufactured in Italy by Euroclamp as their part number
MVE134-3,5-V these are premium quality miniature (smaller than the most common size) industry standard printed circuit board terminal connection blocks.

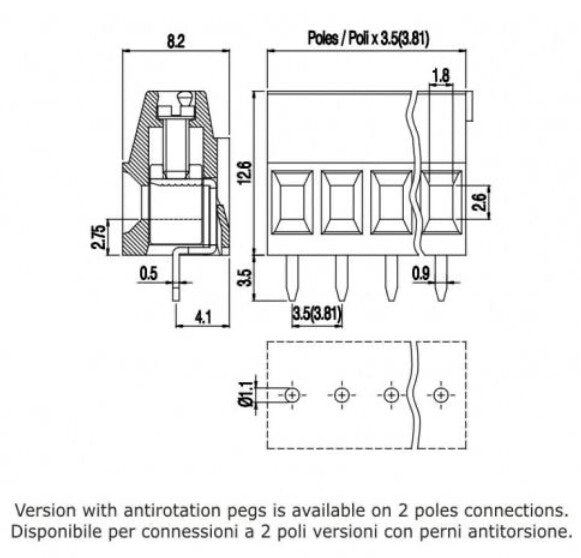

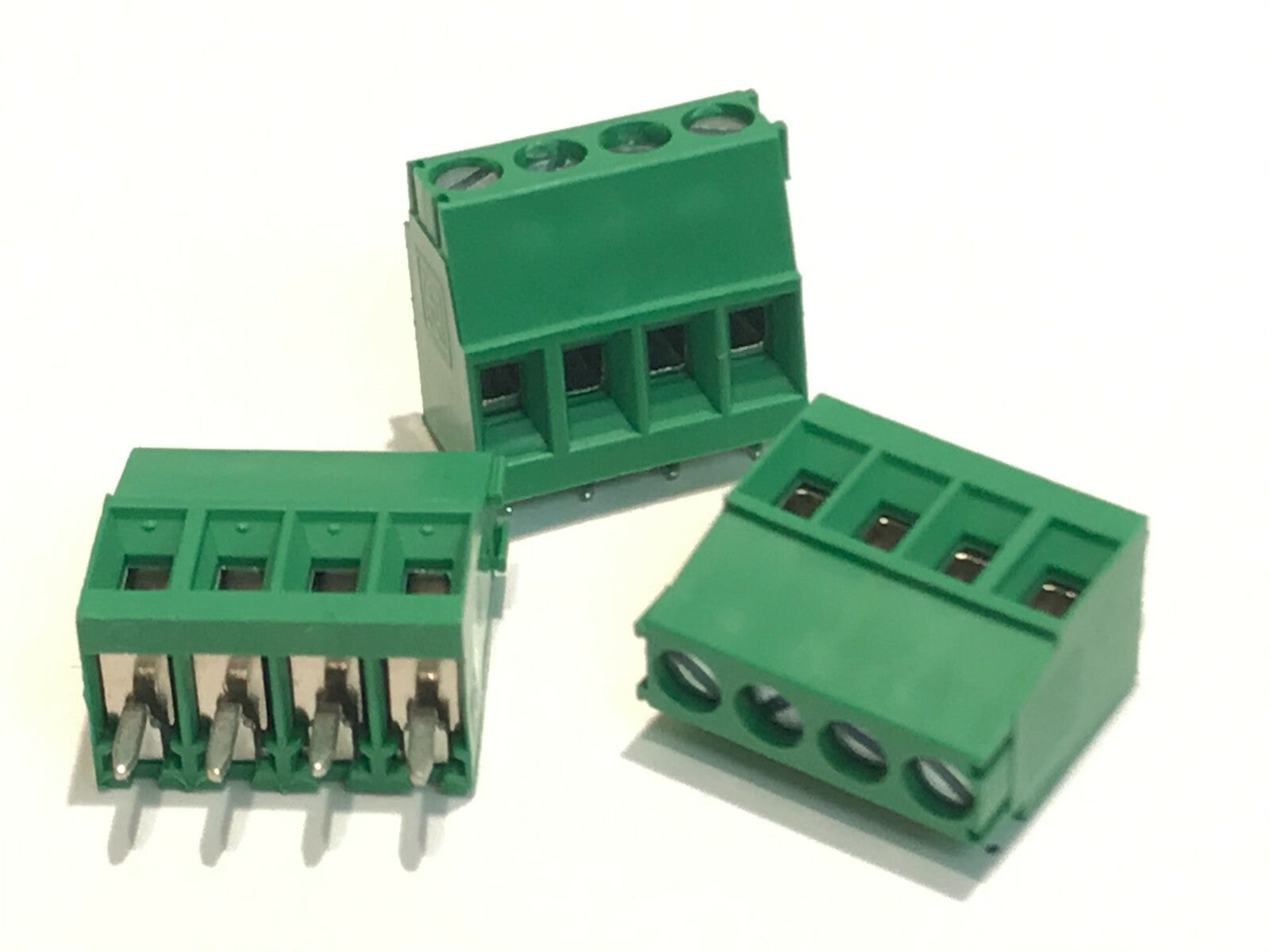

These ones are 4 ways and are modular, so you can join multiple blocks together.  For the exact dimensions see the drawing in the photos above.

3.5mm PCB hole pitch, and rated to 10A at 150V.

GENERAL INFORMATION

Pitch: 3.5 mm
Housing height: 12.60 mm
Housing depth: 8.20 mm
Wire section: 1.5 mm² / 16 AWG
Clamp opening size: 1.8 × 2.6mm
Wire stripping:     max 6mm

ELECTRICAL CHARACTERISTICS

Current: 10A
Voltage: 150V
Test voltage: 12.5 kVrms/60s
These are lovely quality, not the cheap Chinese rubbish.
Free UK postage included in prices, makes them very good value.
