4 HOLE CHASSIS MOUNT SMA FEMALE FLAT BACK RADIALL R125.410.001 fd5e32

4 HOLE CHASSIS MOUNT SMA FEMALE FLAT BACK RADIALL R125.410.001 fd5e32

£4.00
£4.00
Sale Sold out
Taxes included.

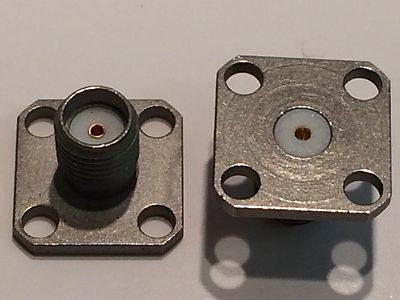

4 HOLE CHASSIS MOUNT FLAT BACK SMA FEMALE

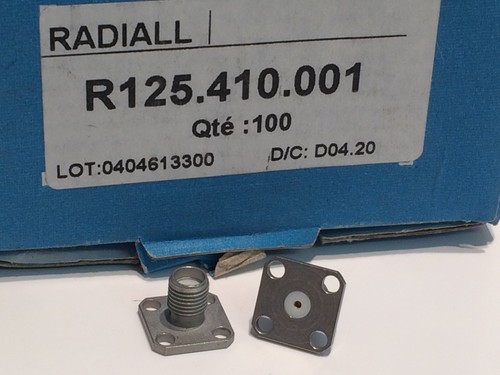

Manufactured by Radiall as their part number R125.410.001, these are a best quality passivated stainless steel plate and gold connector using teflon/PTFE insulation, 4 hole chassis mount SMA female.

Completely flat rear,  the rear connection is a receptical designed to accept a 0.93mm pin, we guess the application for this type of connector is where a push fit is necessary, not a permanent soldered connection.
Standard 4 hole footprint for SMA, 13mm square with mounting holes at 9mm centers,

Datasheet for this connector is available here:
https://radiall-files.s3.amazonaws.com/tds/coaxialconnectors/R125410001EN.pdf

PRICED AND SUPPLIED EACH X1
