4 HOLE CHASSIS MOUNT SMA FEMALE BEST QUALITY RADIALL R124.416.326 ad2z6

4 HOLE CHASSIS MOUNT SMA FEMALE BEST QUALITY RADIALL R124.416.326 ad2z6

£5.00
£5.00
Sale Sold out
Taxes included.

4 HOLE CHASSIS MOUNT SMA FEMALE

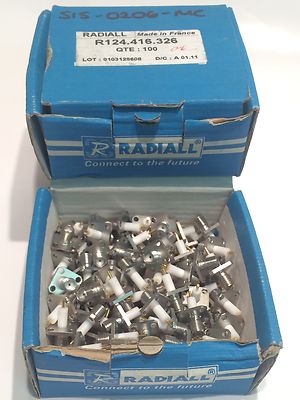

Manufactured by Radiall as their part number R124.416.326, these are a premium quality nickel plate and gold connector using teflon/PTFE insulation, 4 hole chassis mount SMA female.

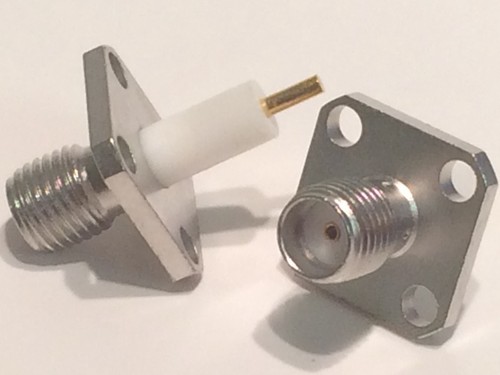

Standard 4 hole footprint for SMA, 13mm square with mounting holes at 9mm centers, and the rear connection pin is 12mm long, 7mm of which is covered with the insulation as shown in the photo.

PRICED AND SUPPLIED EACH X1 WITH QUANTITY DISCOUNTS AVAILABLE
