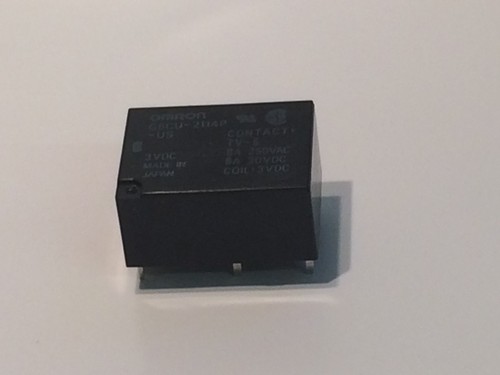

OMRON G6CU-2114P 3V LATCHING RELAY


Manufactured by Omron as their part G6CU-2114P-US-3VDC, these are a low operating voltage - just 3 Volts latching coil - but with 250 Volt AC 8 Amp rated normally open AND normally closed single pole (off / on, on /off) contacts.

 As a latching relay, the contacts switch over when the coil voltage is applied, then the voltage on the coil needs to be reversed for the contacts to switch back again.

 Coil resistance is 45 Ohms.

A miniature relay, dimensions are 20mm x 15mm wide x 10mm high.

Priced and supplied individually.
