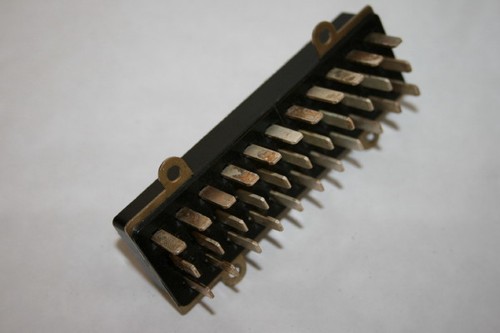

33 PIN PANEL MALE PLESSEY CONNECTOR JONES PLUG

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

This type is 33 way (primarily designed as a chassis mount) male with 4 hole mounting plate. Eleven of the connections are at a 90 degree angle to the other twenty-two, thus avoiding an incorrect connection. This variety does not have the round locating pin.

 Superb vintage military specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

Centers of the 4 holes for mounting are approx 56mm x 35mm

 New and unused vintage stock.
