33 PIN MULTI WAY CONNECTORS PLESSEY JONES PLUG & SOCKET fd2g1

33 PIN MULTI WAY CONNECTORS PLESSEY JONES PLUG & SOCKET fd2g1

£35.00
£35.00
Sale Sold out
Taxes included.

33 PIN MULTI WAY CONNECTORS

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

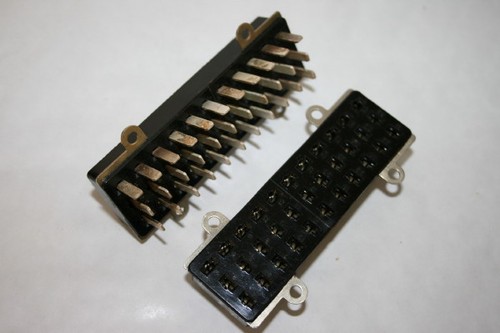

This type is a matching 33 way male and female pair, with 4 hole mounting plates.

Eleven of the connections are at a 90 degree angle to the other twenty-two. This variety of the Plessey range does not have the round locating pin.

 Only the connector bodies are supplied, used with some large heat shrink tubing or by mounting in a small die cast aluminium box for a housing (if required) they offer a quality pair of connections at a good price.

Connectors of this size and quality would cost a fortune now, well over £100 for a matched pair like this.

Superb vintage military specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

Centers of the 4 holes for mounting are approx 56mm x 35mm

New and unused vintage stock.
