ITT CANON

32 WAY HEAVY DUTY LOCKING CONNECTORS ITT CANON 32 PIN PLUG & SOCKET PAIR ad1u8

32 WAY HEAVY DUTY LOCKING CONNECTORS ITT CANON 32 PIN PLUG & SOCKET PAIR ad1u8

£29.50
£29.50
Sale Sold out
Taxes included.

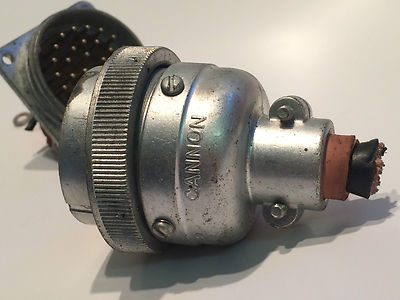

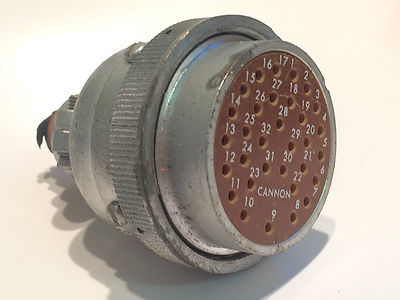

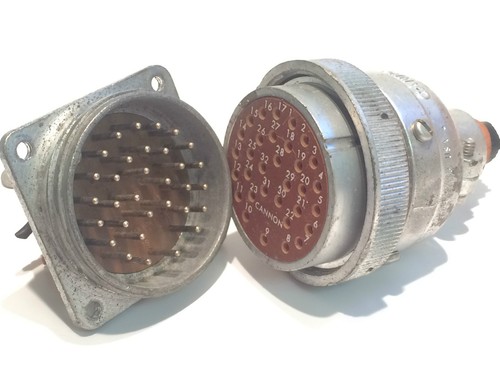

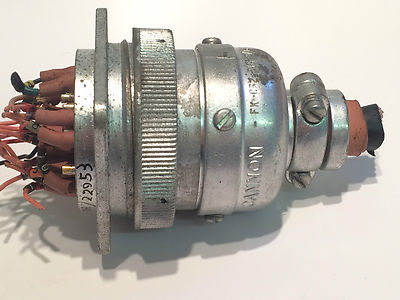

32 PIN MULTI WAY CONNECTORS CANON PLUG & SOCKET

Manufactured by ITT Canon in the USA astheir part number FK-C32, these are a matching pair of 32 way connectors, a panel mounting male with pins, and an interlocking cable mounted female.

Made to military specifications they are superb quality connectors, they have rugged aluminium bodies, rated to 10A per contact.

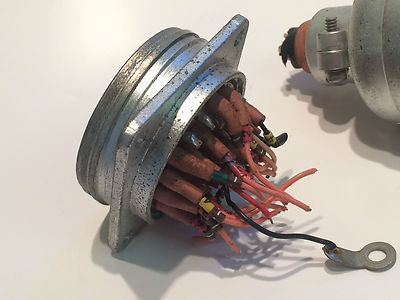

Not new, removed from military equipment, so you will have to remove the existing wires before using, but they represent a fantastic quality multi pole connector at a very reasonable price.


Dimensions of the cable mount female are roughly 52mm diameter at the widest point (across the locking ring) x 60mm long from the front of the connector to the back of the cable clamp.

The panel mount male is 47mm square with 3.5mm mounting holes at 37mm centers.

PRICED AND SUPPLIED AS 1 PAIR, PANEL MOUNT MALE AND LOCKING CABLE MOUNT FEMALE.
