3 POLE 6 WAY VINTAGE CERAMIC ROTARY WAFER SWITCH MILITARY SPEC fbb1c

3 POLE 6 WAY VINTAGE CERAMIC ROTARY WAFER SWITCH MILITARY SPEC fbb1c

£26.00
£26.00
Sale Sold out
Taxes included.

3 POLE 6 WAY CERAMIC ROTARY SWITCH

New unused vintage military specification stock, these are an old pattern 'clunk clunk sound' heavy duty ceramic and Bakelite wafer rotary switch with heavily silver plated contacts. Extremely well constructed.

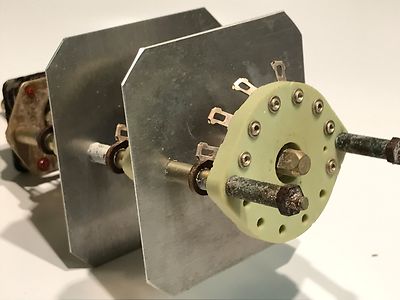

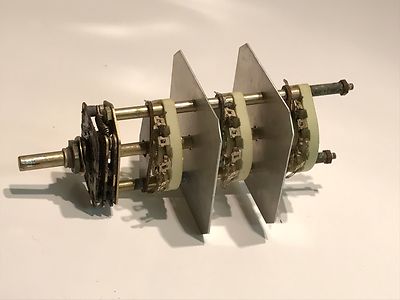

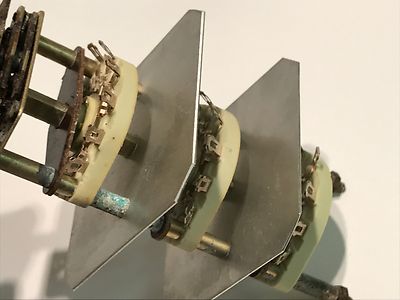

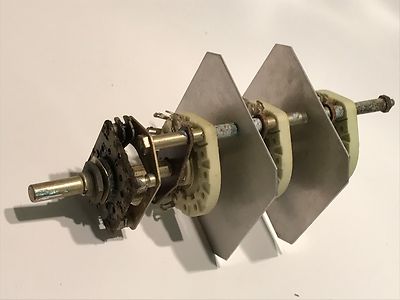

 3 pole 6 way,  make before break, with aluminium screening plates between the sections.

Shaft is standard 1/4" - 6mm and behind panel dimensions are roughly 122mm long x 63mm across the screening plates, the ceramic wafers are 47mm at their widest.

Poles or spacers could be removed if required to make a switch that is not so deep.

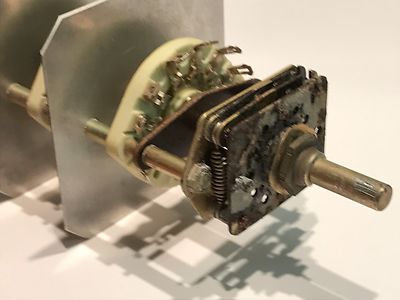

These lovely switches are new old stock however may have surface corrosion to the front mounting plate as can be seen in the photos, this in no way detracts from the quality or electrical performance.

Priced & supplied individually  X1
