3 POLE 17 WAY MULTI WAY STACKED WAFER ROTARY SWITCH bsc2b

3 POLE 17 WAY MULTI WAY STACKED WAFER ROTARY SWITCH bsc2b

£30.00
£30.00
Sale Sold out
Taxes included.

3 POLE 17 WAY ROTARY SWITCH

Old pattern 'clunk clunk sound' stacked wafer rotary switch, well constructed offering the following configuration:

 3 single pole wafers each offering 17 positions.

 Quite an interesting one this, the first wafer is just a straight forward single pole 17 way break before make, but the other 2 wafers also have the configuration that all other 16 ways are shorted together except from the one selected. That is achieved by the use of a second set of contacts on the reverse side of each wafer. If this arrangement is not desirable it would be possible to modify the switch to make the same configuration as the first wafer.

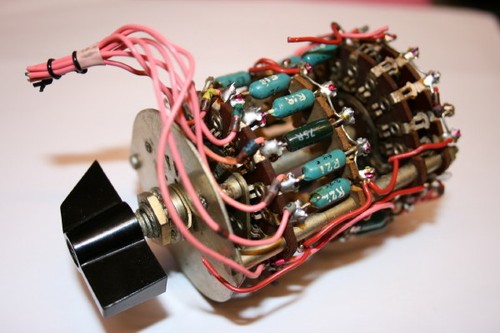

Removed from redundant military equipment but in perfect working condition, existing wiring and resistors will need to be removed before use, supplied with nice original 1960's control knob.

Low price for a switch of this size and quality, ideal for attenuators.

Behind panel dimensions are roughly 80mm long x 60mm across.
