24V AC SINGLE POLE ON - OFF HEAVY DUTY RELAY WITH 30A CONTACTS x1 ad2k9

24V AC SINGLE POLE ON - OFF HEAVY DUTY RELAY WITH 30A CONTACTS x1 ad2k9

£14.00
£14.00
Sale Sold out
Taxes included.

24V AC HEAVY DUTY SINGLE POLE RELAYS
size="6">

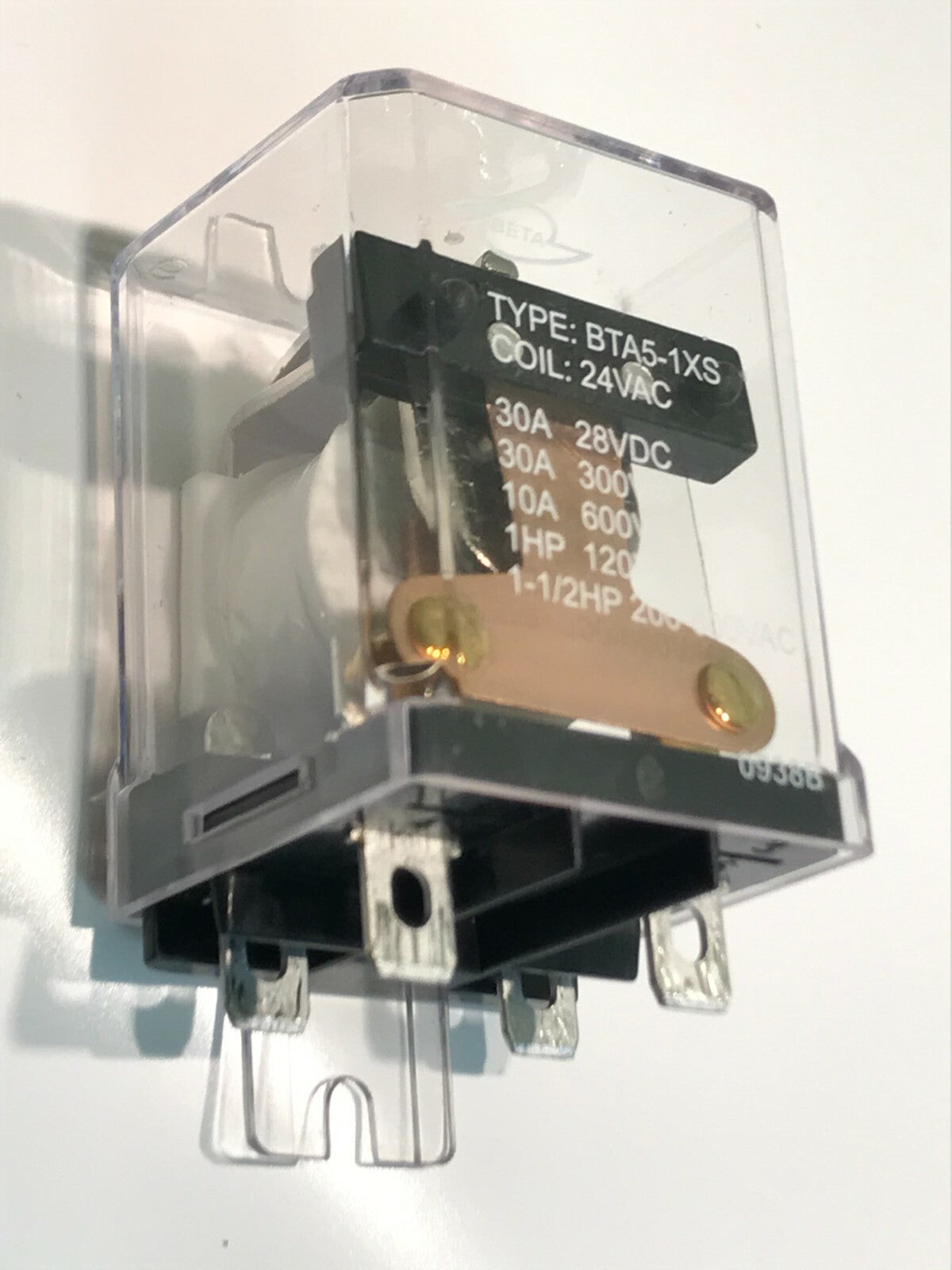

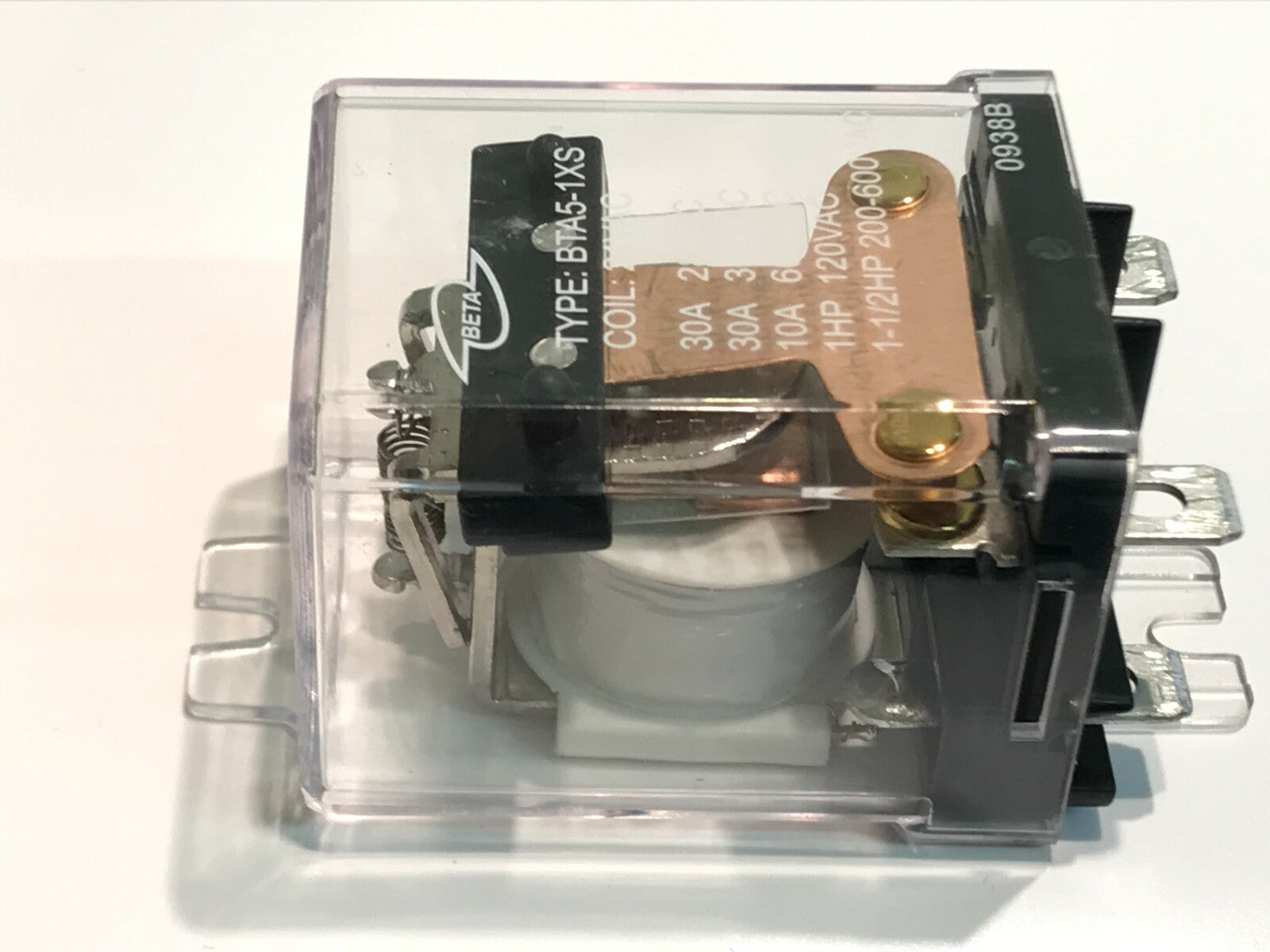

 Manufactured by Beta as their part number
BTA5-1XS-S-C1-24VAC these are a premium quality industry standard 24V AC coil high power ON - OFF ( so single pole single throw SPST) relays.

 SPST gold plated heavy duty contacts rated to 30A at 28Vdc, 30A at 300Vac, 1HP at 120Vac

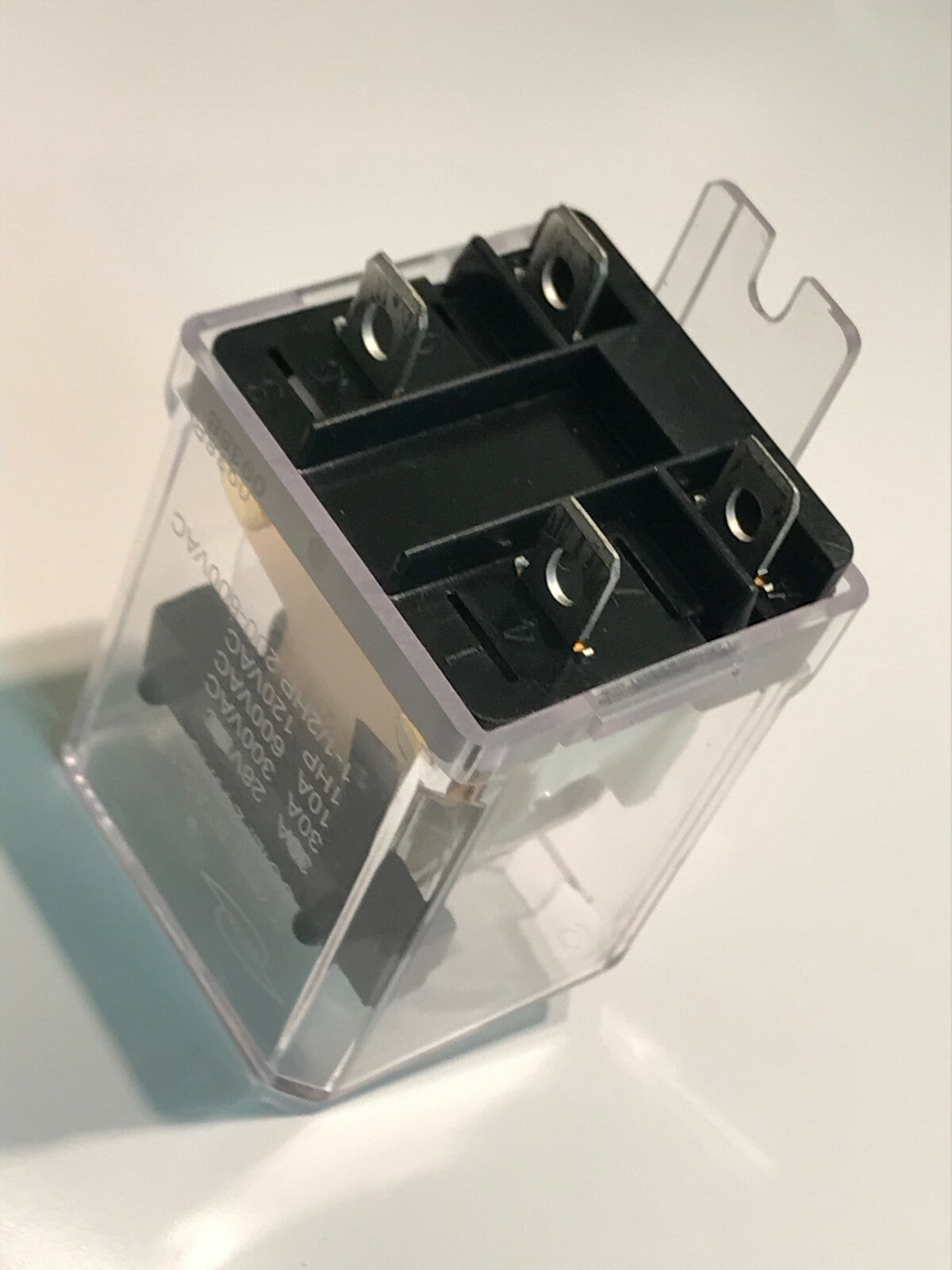

4 Faston 6.3mm spade terminal connections and with flange mounts if it is required to be bolted down.

UL & CE Approved

 Dimensions of the main body 48 x 38 x 35mm (plus connections) 70mm across the flange mount with mounting centers at 64mm.
Overall body length including the connections is 57mm.
