24V AC PULL SOLENOID BY EKS SOLENOIDS fd7j2

24V AC PULL SOLENOID BY EKS SOLENOIDS fd7j2

Regular price £20.00
Regular price Sale price £20.00
Sale Sold out
Taxes included.


24V AC PULL SOLENOID

Manufactured in Germany by EKS Solnoids as their part numbers 1312011220, these are a strong 24V ac pull solenoid.

The frame dimensions are 40mm long x 27mm wide x 22mm high.

The plunger is 9mm diameter with a 2mm hole near the end through which there is a metal lever, this can be removed with a pair of pliers if not needed.

The weight is 135g.

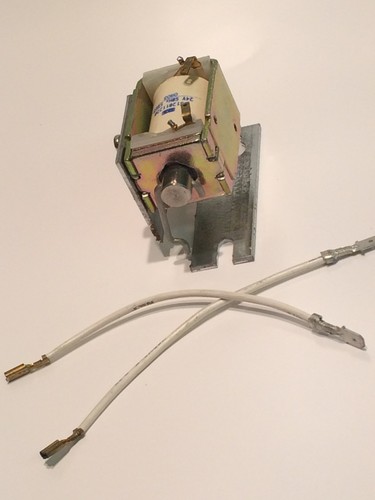

There are 2x M3 threaded mounting holes in each side and also a mounting bracket is included. Connection is made by solder tags though a couple of connection wires are also included.

 The pull stroke of the plunger is 10mm. Pull force is upto 5N and holding forse is upto 14.5N

 For the full data check out the manufacturers website here: www.eks-magnete.de
It is under AC/ DC solenoids and the type is 131..
