24V AC DOUBLE POLE SINGLE THROW HEAVY DUTY RELAY WITH 25A CONTACTS x1 fba13B

24V AC DOUBLE POLE SINGLE THROW HEAVY DUTY RELAY WITH 25A CONTACTS x1 fba13B

£14.00
£14.00
Sale Sold out
Taxes included.

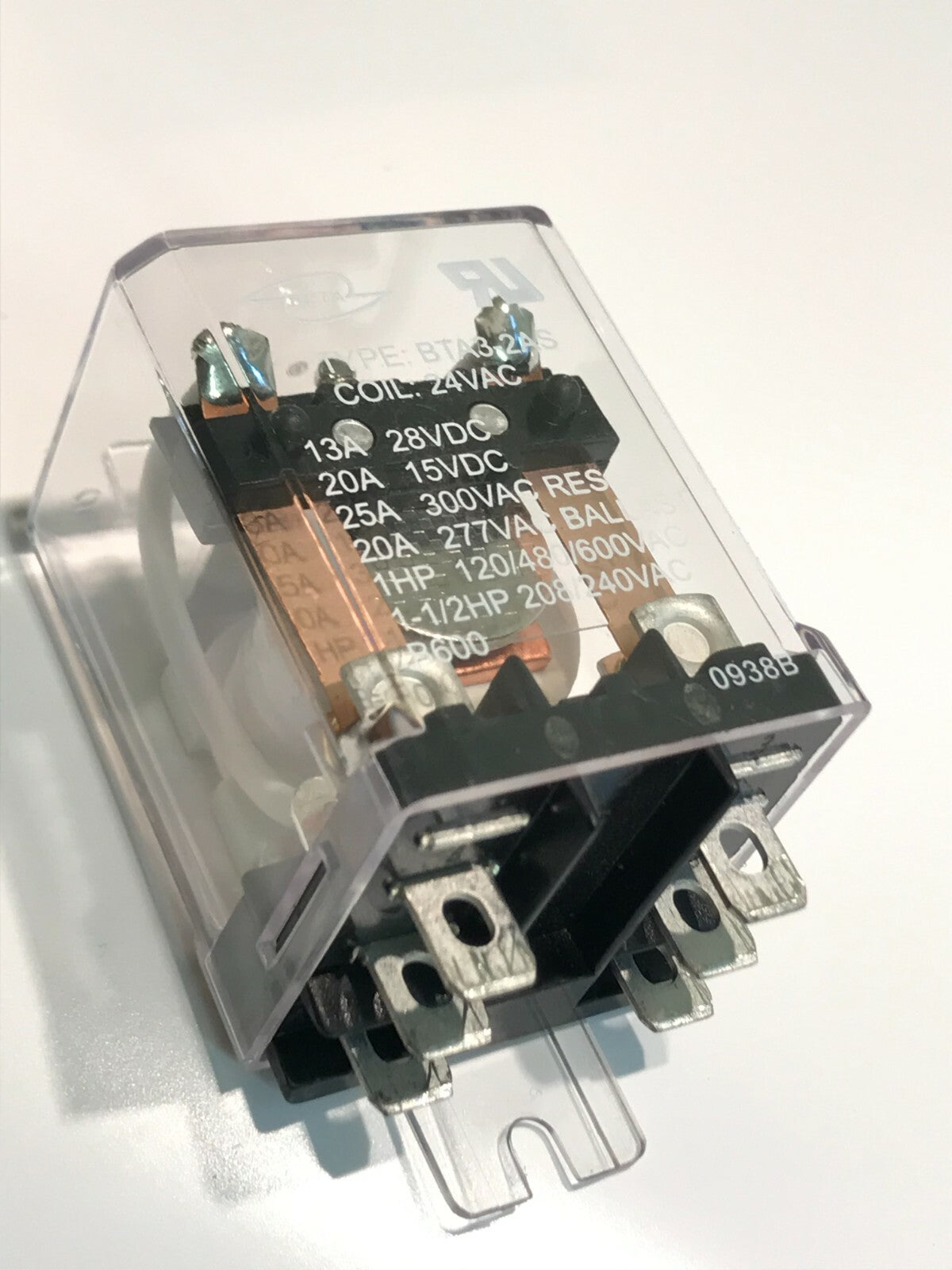

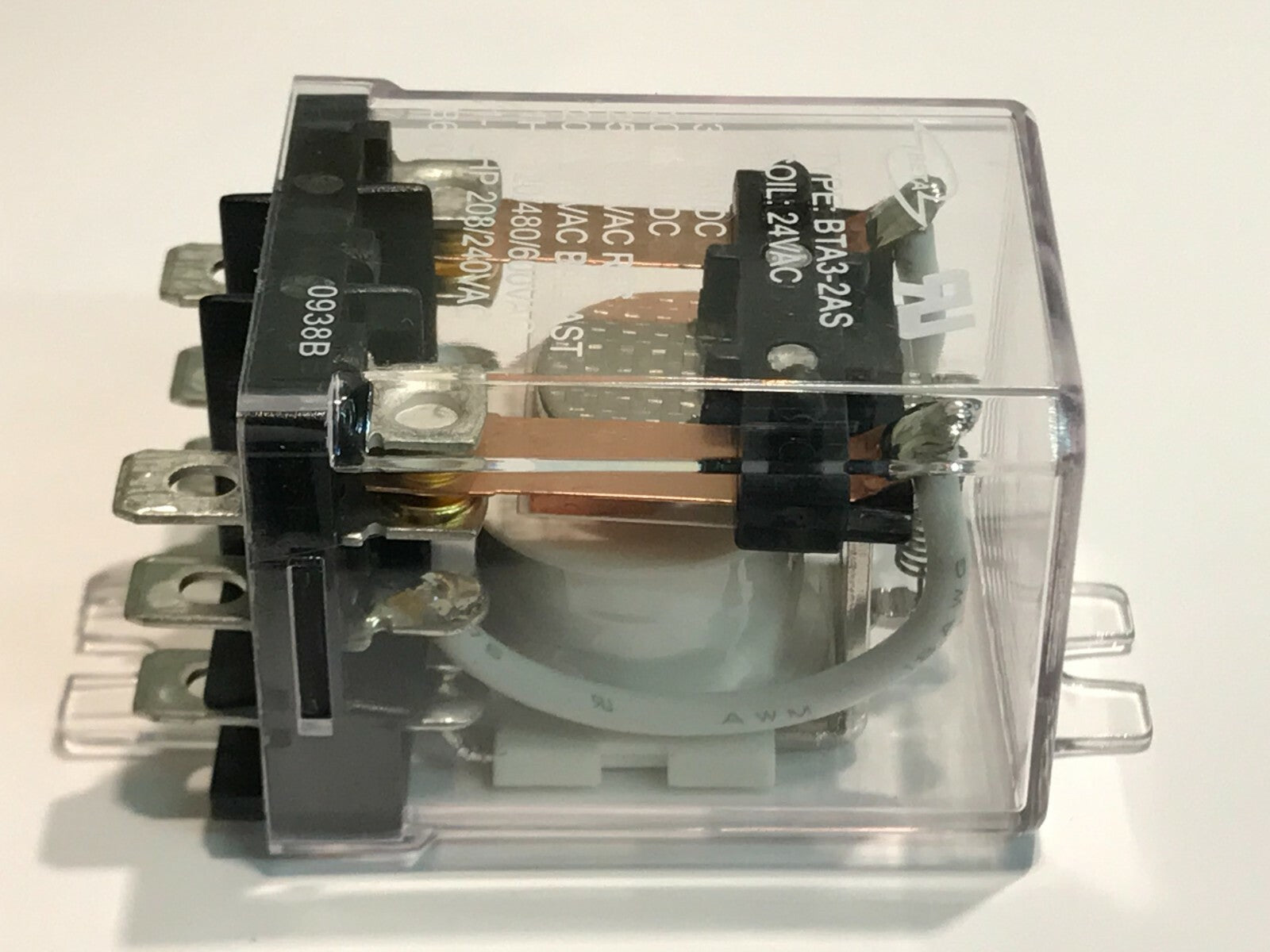

24V AC HEAVY DUTY DOUBLE POLE RELAYS

Manufactured by Beta as their part number
BTA3-2AS-S-C1-24VAC these are a premium quality industry standard 24V AC coil high power relay with double pole single throw (so double pole on - off) contacts.

 DPST gold plated heavy duty contacts rated to 13A at 28Vdc, 25A at 300Vac (resistive), 20A at 277Vac (Ballast - Inductive) 1HP at 120Vac

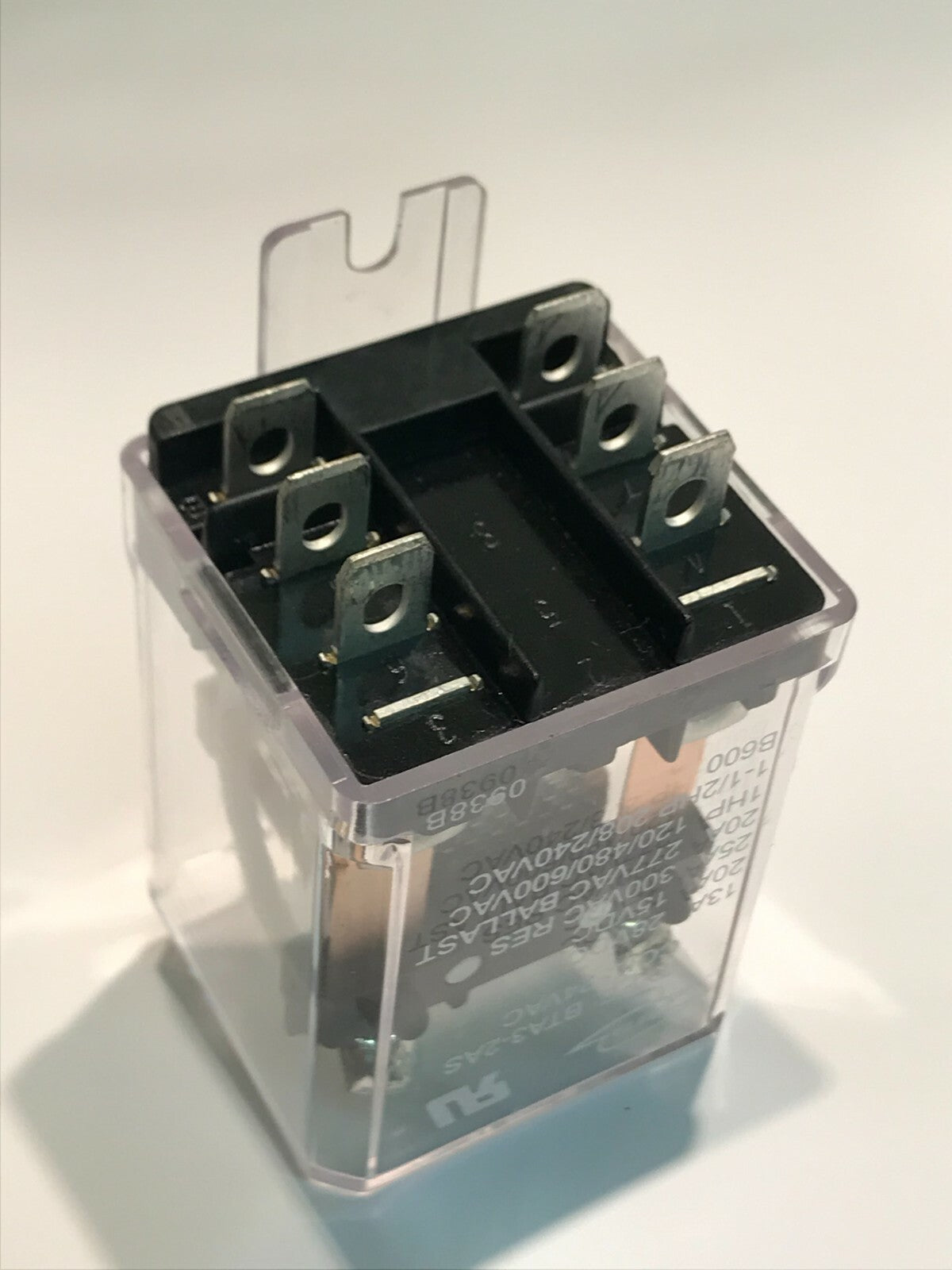

6 Faston 6.3mm spade terminal connections and with flange mounts if it is required to be bolted down.

UL & CE Approved

 Dimensions of the main body 48 x 38 x 35mm (plus connections) 70mm across the flange mount with mounting centers at 64mm.
Overall body length including the connections is 57mm.
