24V AC 3 POLE CHANGE OVER HEAVY DUTY RELAY WITH 20A CONTACTS x1 fd1K16

24V AC 3 POLE CHANGE OVER HEAVY DUTY RELAY WITH 20A CONTACTS x1 fd1K16

£15.00
£15.00
Sale Sold out
Taxes included.

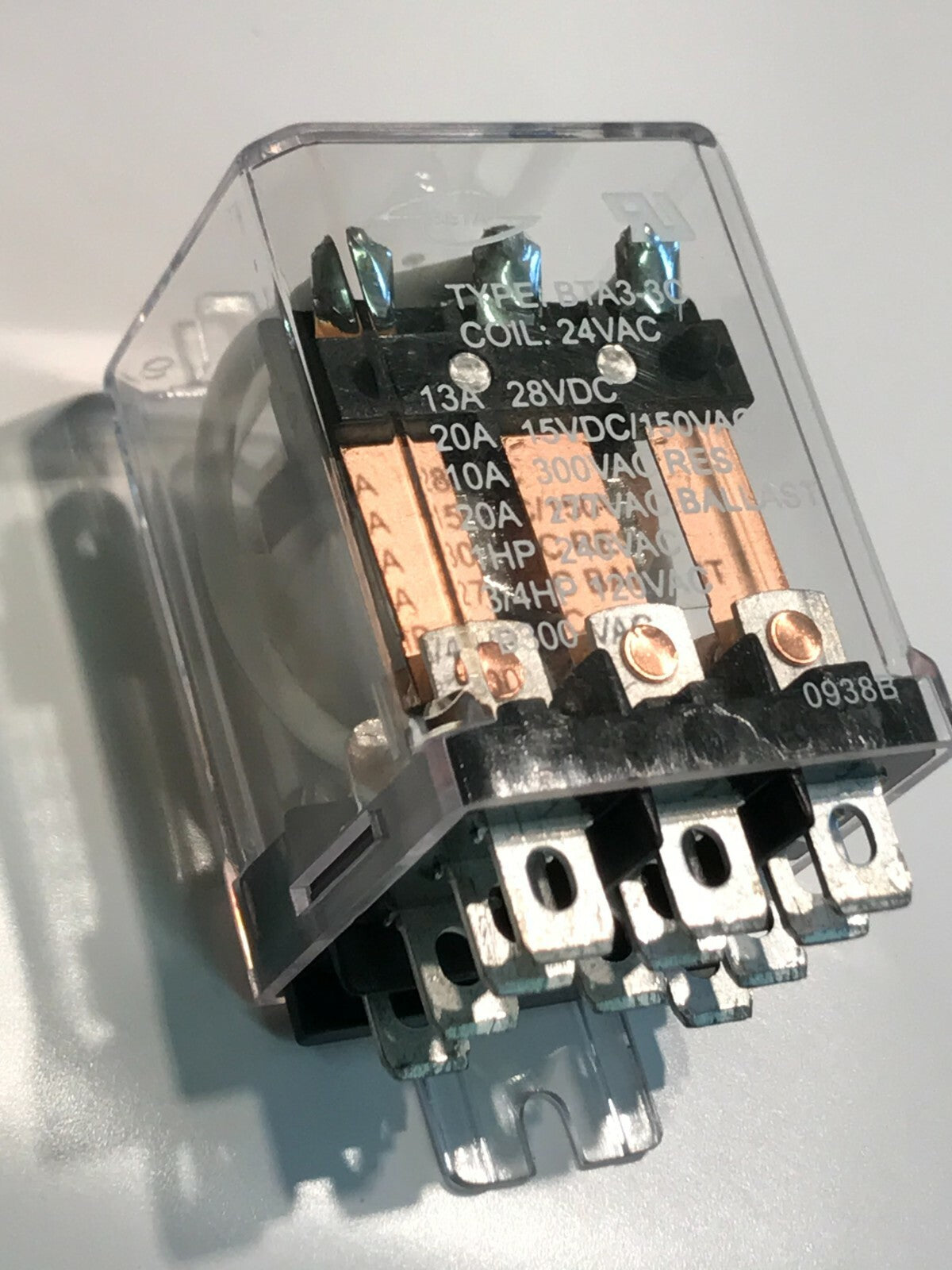

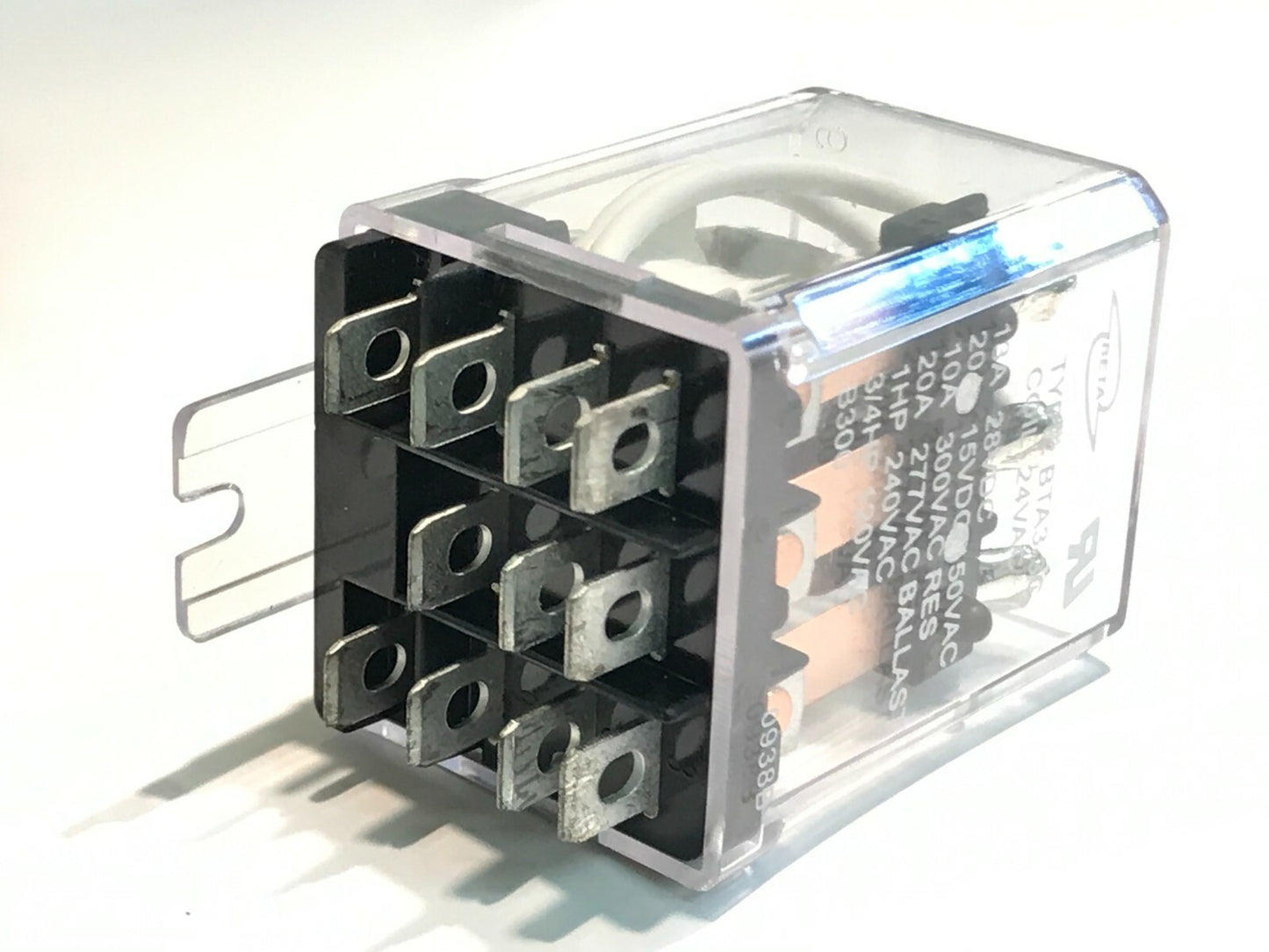

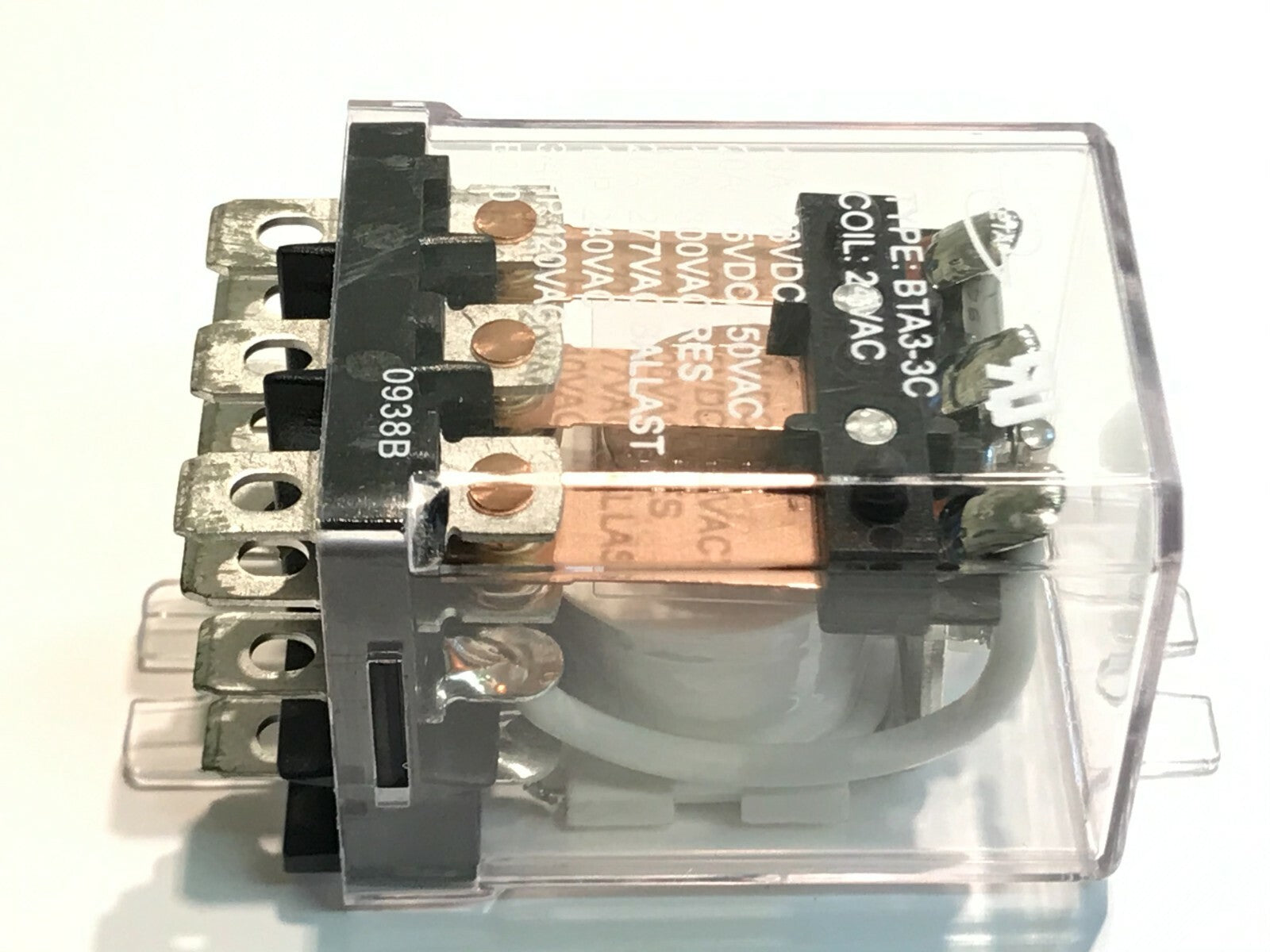

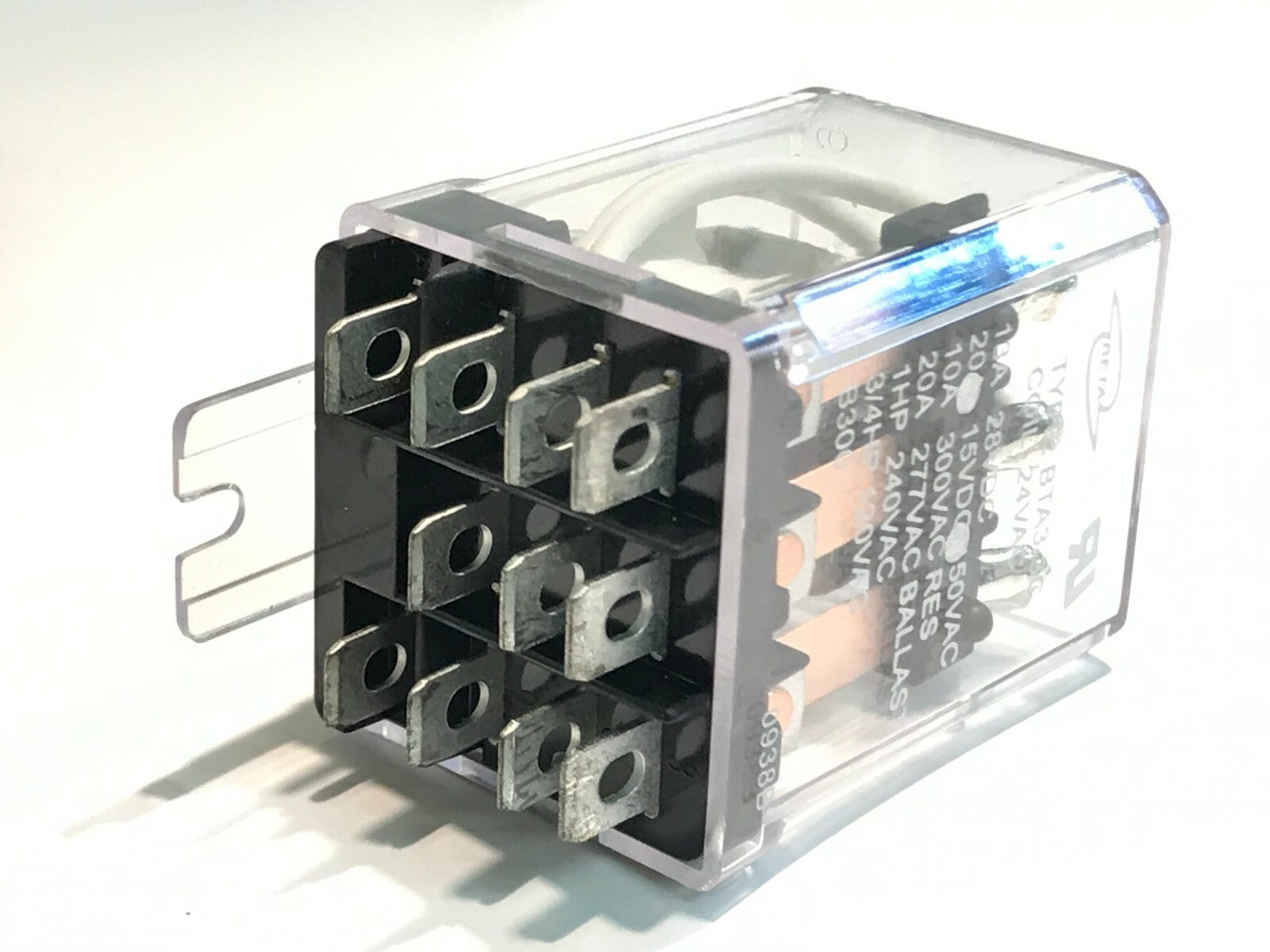

24V AC HEAVY DUTY TRIPLE POLE RELAYS

Manufactured by Beta as their part number
BTA3-3C-24VAC these are a premium quality industry standard 24V AC coil high power relay with triple pole change over (3PDT) contacts.

 3PDT gold plated heavy duty contacts rated to 13A at 28Vdc, 20A at 15Vdc, 10A at 300Vac (resistive), 20A at 277Vac (Ballast - Inductive) 1HP at 240Vac

11 Faston 6.3mm spade terminal connections and with flange mounts if it is required to be bolted down.

UL & CE Approved

 Dimensions of the main body 48 x 38 x 35mm (plus connections) 70mm across the flange mount with mounting centers at 64mm.
Overall body length including the connections is 57mm.
