Plessey

24 WAY PLESSEY PANEL MALE JONES SOCKET CONNECTOR fd2f3

24 WAY PLESSEY PANEL MALE JONES SOCKET CONNECTOR fd2f3

£22.00
£22.00
Sale Sold out
Taxes included.

24 WAY HEAVY DUTY CONNECTORS

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

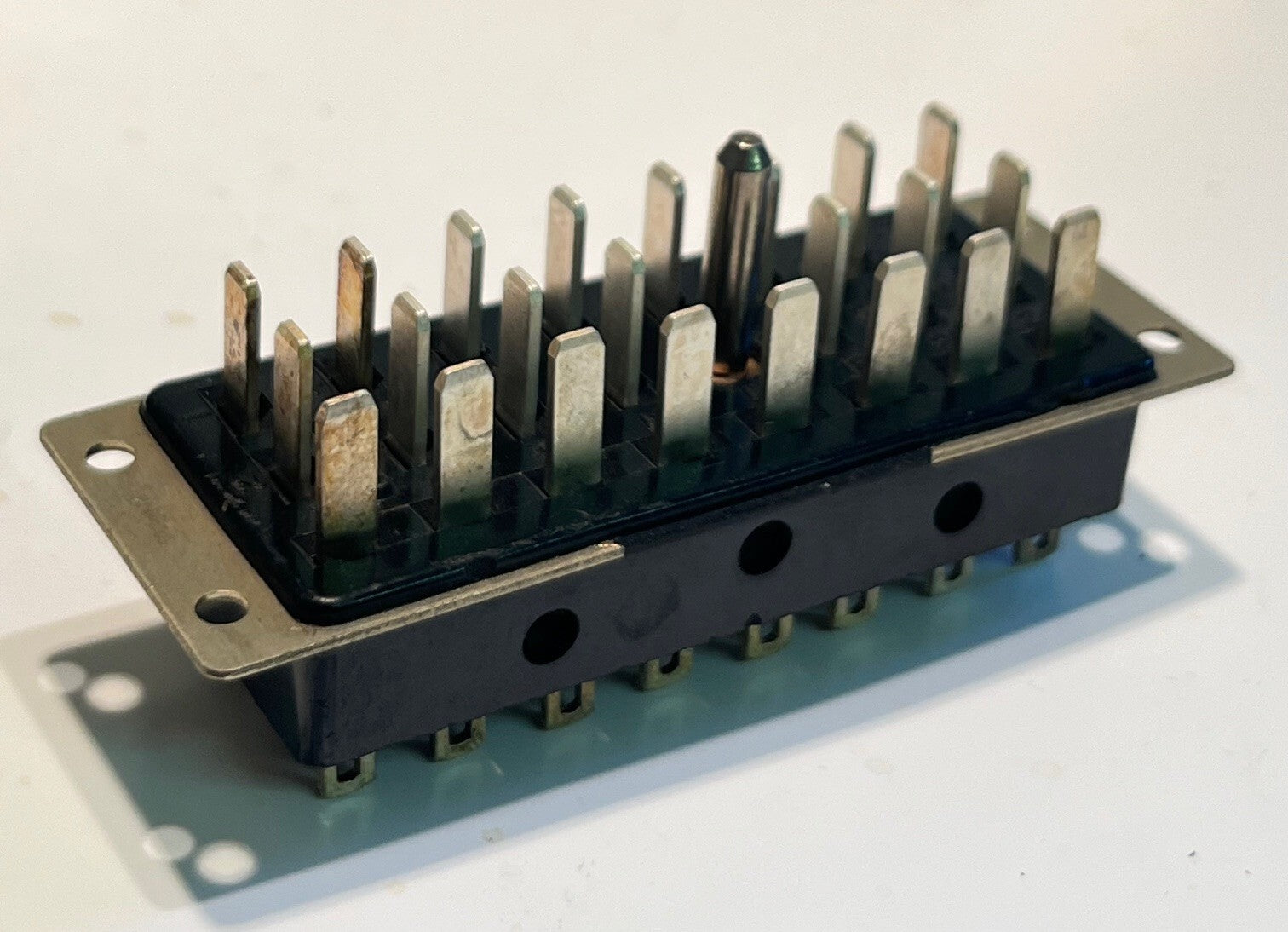

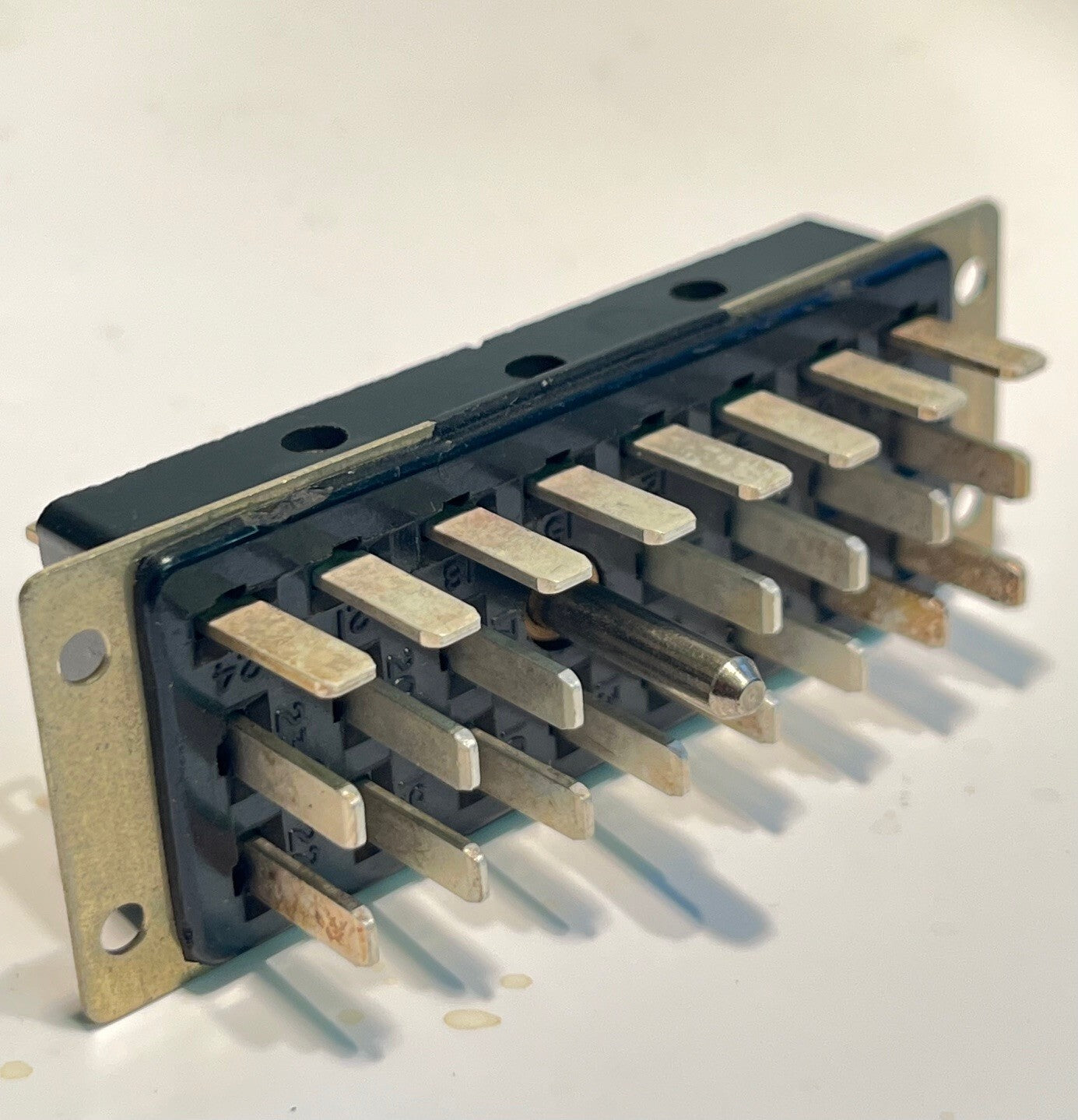

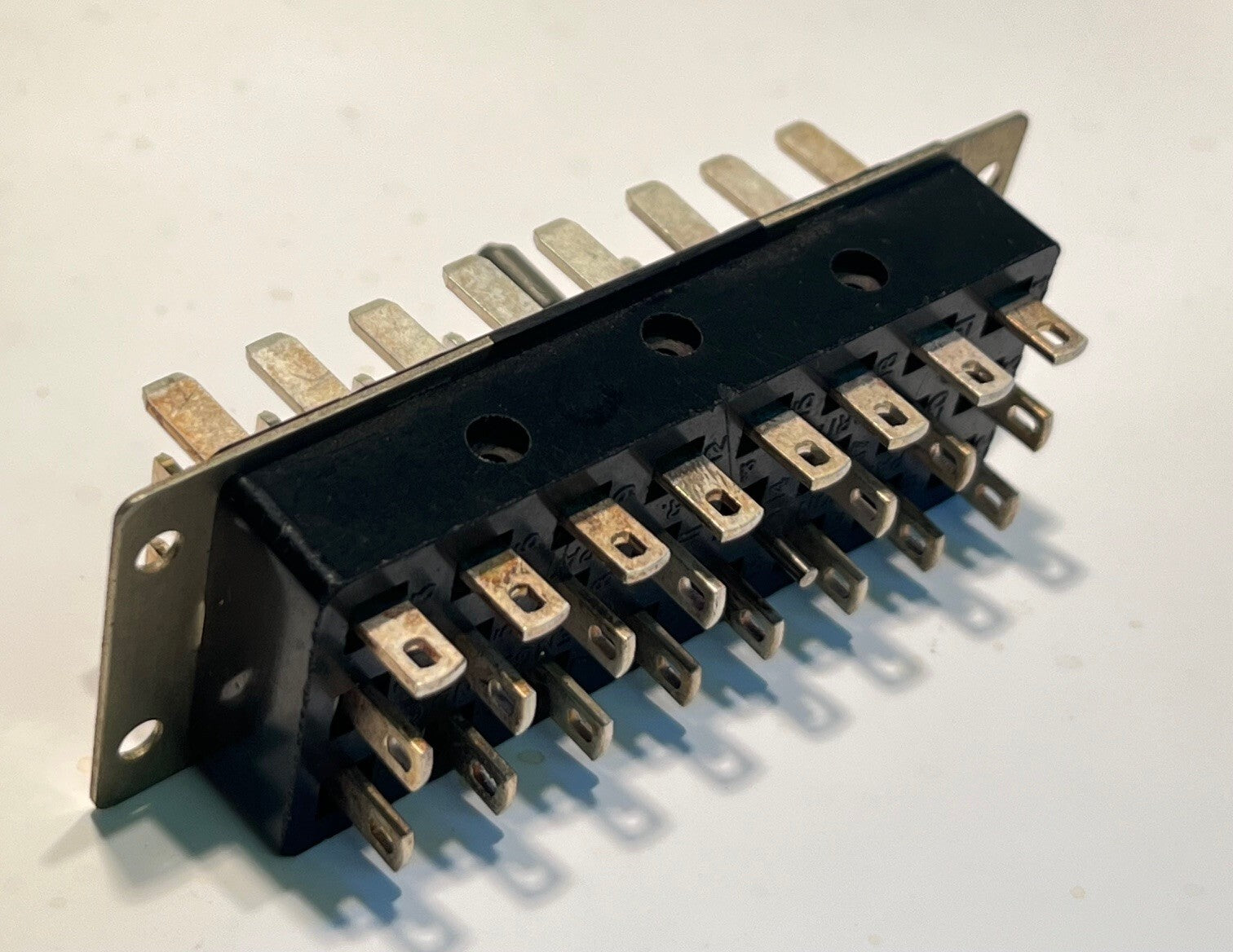

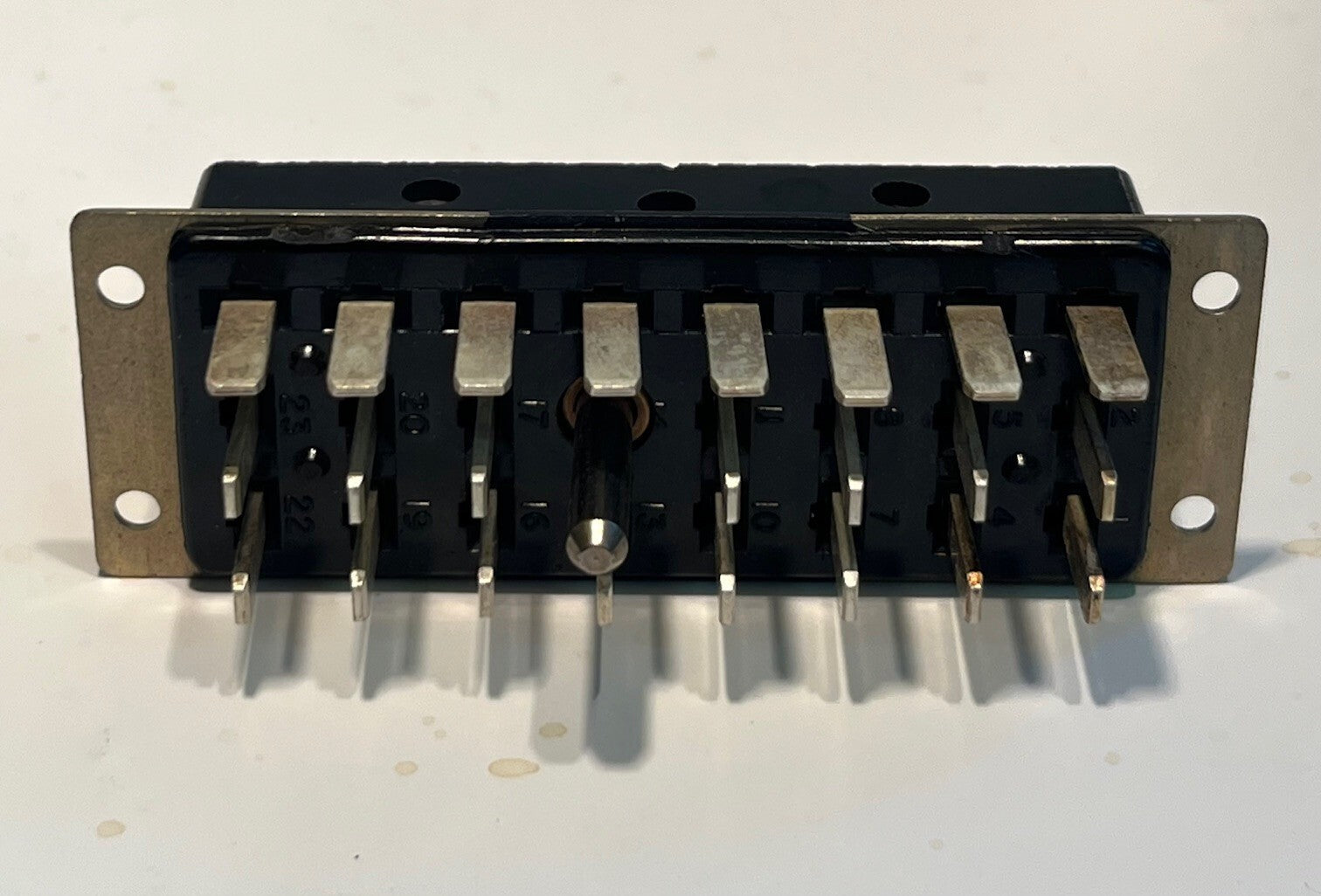

 This type is a 24 way chassis or panel mount male, which has a strong 4 hole mount face plate. Eight of the connections are at a 90 degree angle to the other sixteen, and one of the pins doubles as a locating pin, thus avoiding an incorrect connection.

    Superb vintage military specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

 Centers of the 4 holes for mounting are approx 74mm x 17mm

New and unused vintage stock
