24 PIN MULTI WAY PLUG & SOCKET PLESSEY JONES CONNECTOR PAIR fd2e4

24 PIN MULTI WAY PLUG & SOCKET PLESSEY JONES CONNECTOR PAIR fd2e4

£37.00
£37.00
Sale Sold out
Taxes included.

24 WAY HEAVY DUTY CONNECTORS

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

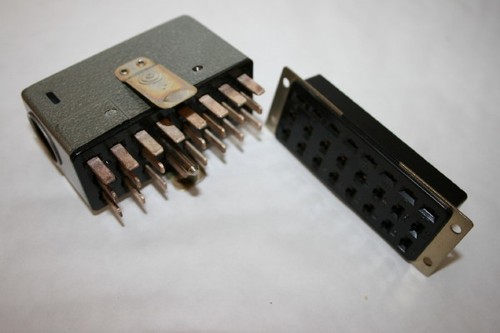

This type is a matching pair, 24 way cable mount 'free' or running male which has a galvonised pressed steel heavy duty housing, together with a matching chassis or panel mount female, which has a strong 4 hole mount face plate.

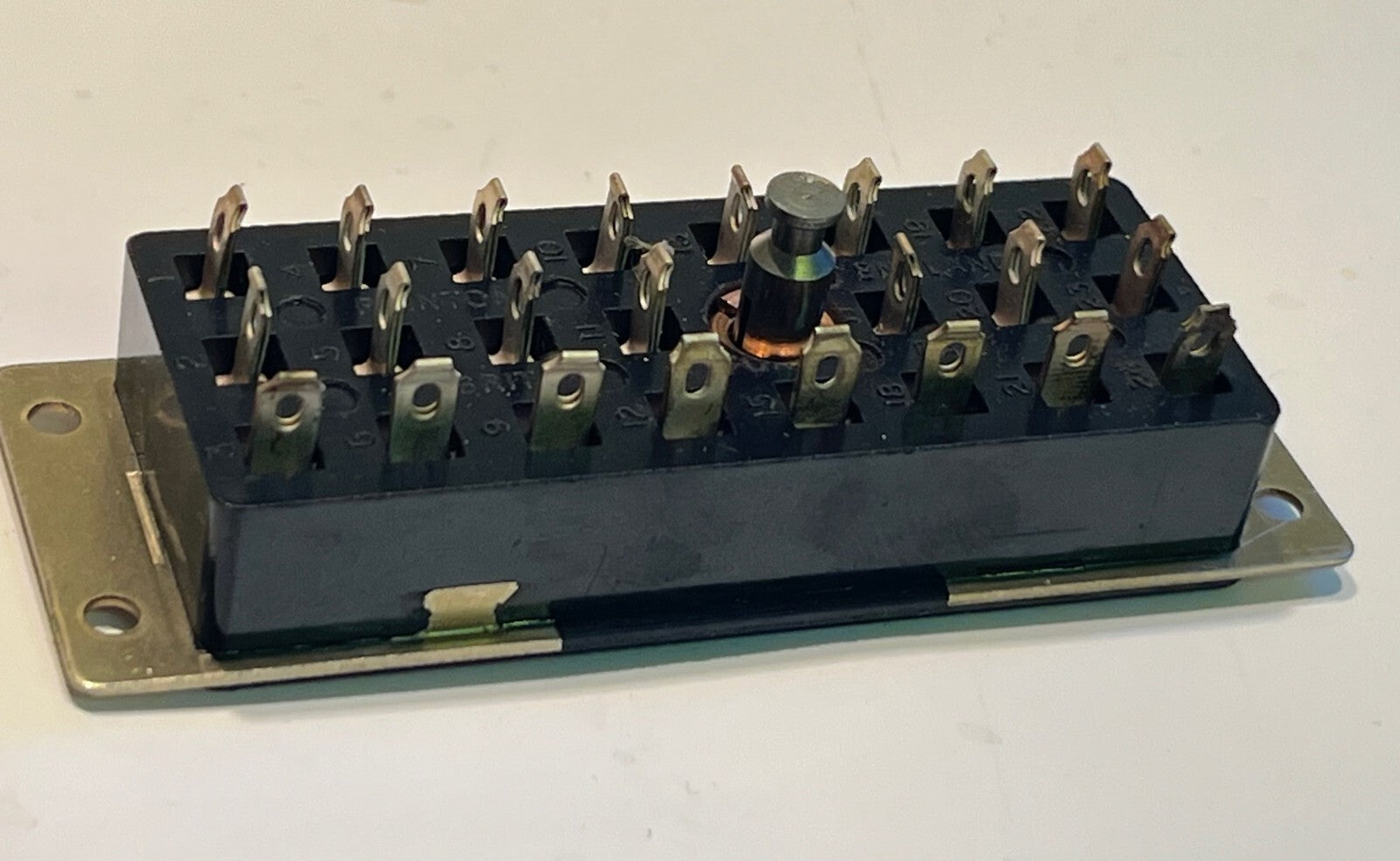

 Eight of the connections are at a 90 degree angle to the other sixteen, and one of the pins doubles as a locating pin, thus avoiding an incorrect connection.

Connectors of this size and quality would cost a fortune now, well over £100 for a matched pair like this.

 Superb vintage military specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

Dimensions of the housing of the cable male are approx 67mm x 37mm x 27mm with a cable entry of about 17mm. Mounting centers of the 4 holes in the chassis female are approx 74mm x 17mm

 New and unused vintage stock.
 SUPPLIED AS SHOWN IN THE PHOTO.
