2 POLE 17 WAY NSF WAFER ROTARY MILITARY QUALITY SWITCH ad1*18

2 POLE 17 WAY NSF WAFER ROTARY MILITARY QUALITY SWITCH ad1*18

£35.00
£35.00
Sale Sold out
Taxes included.

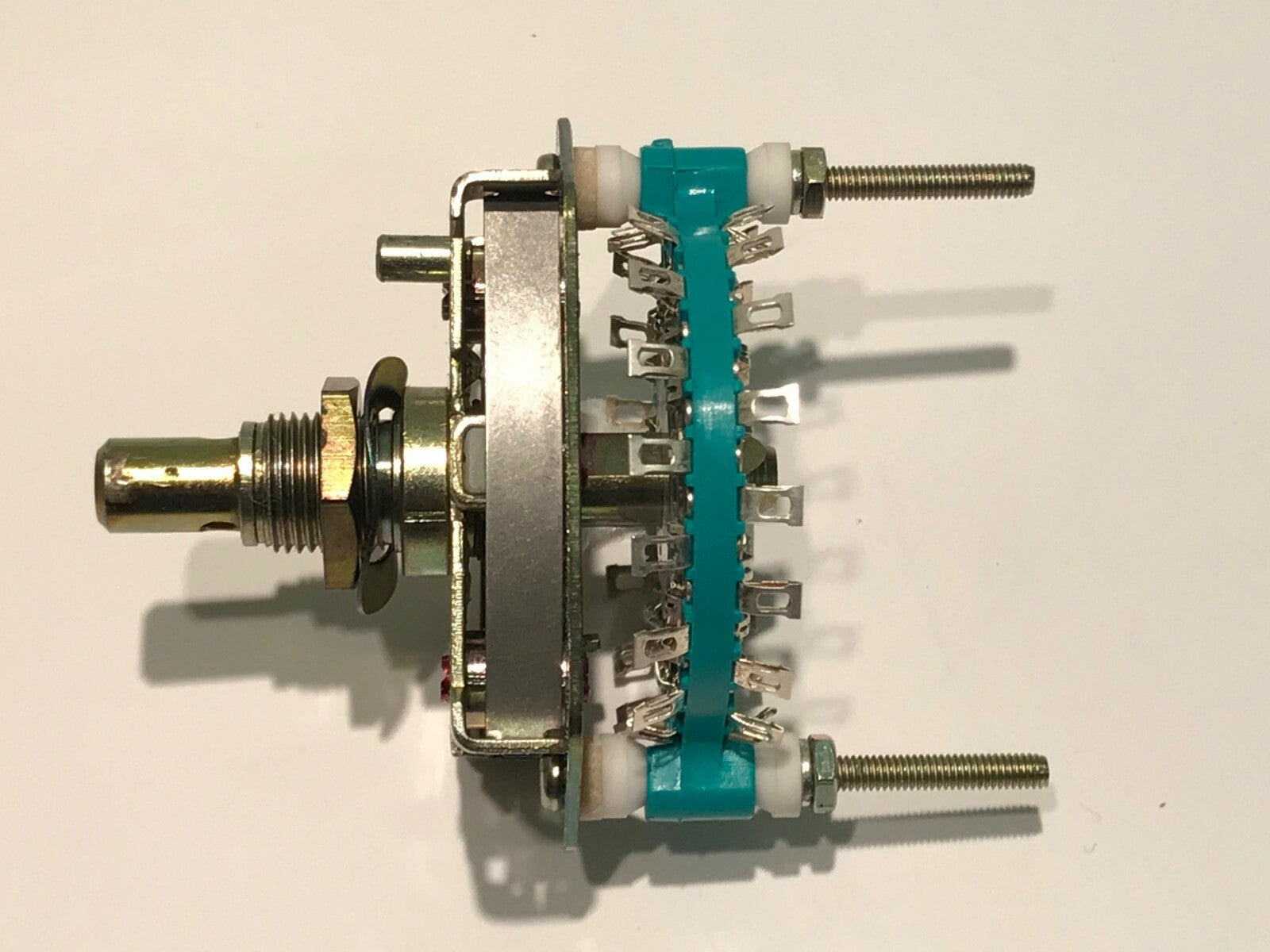

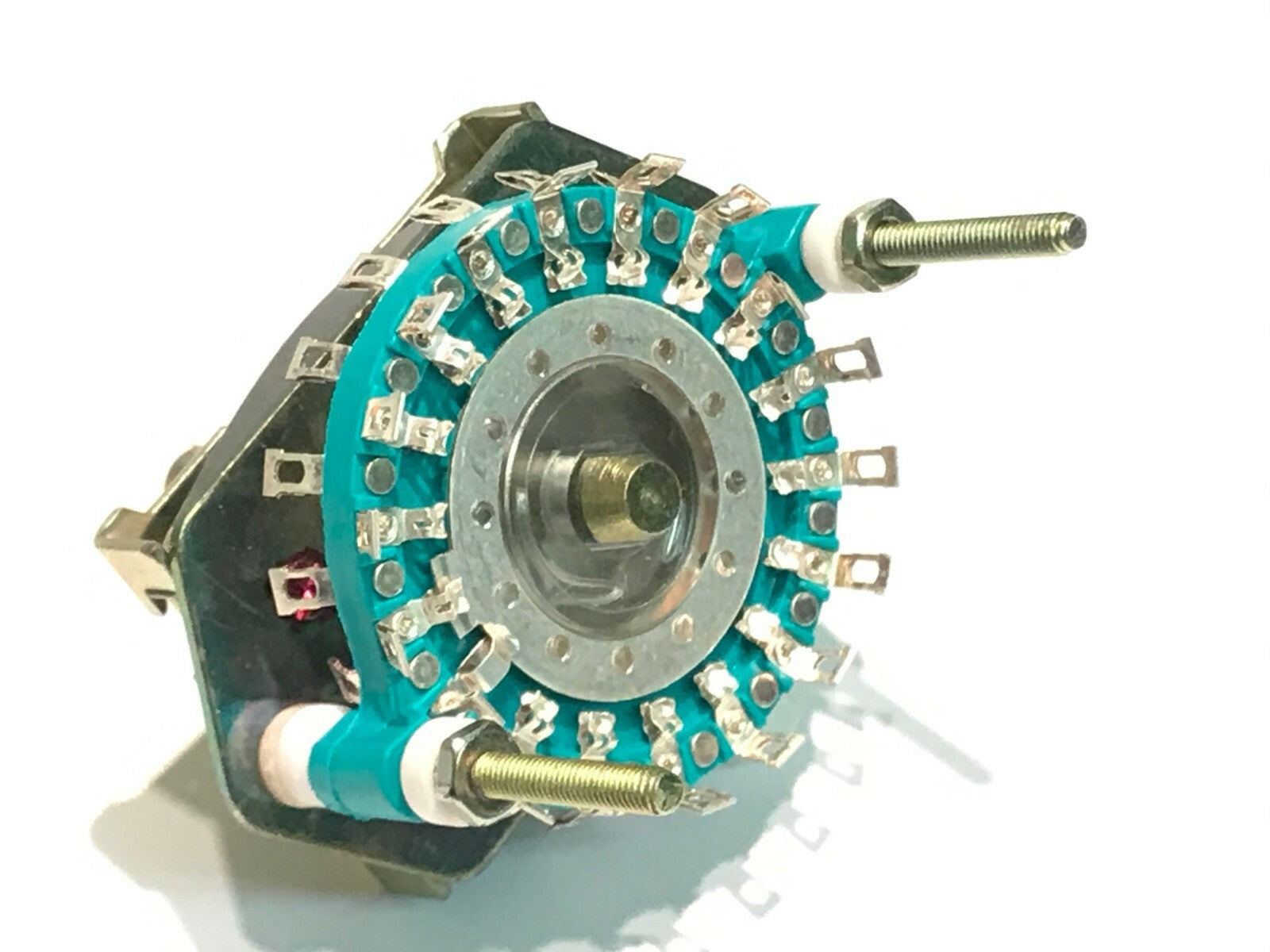

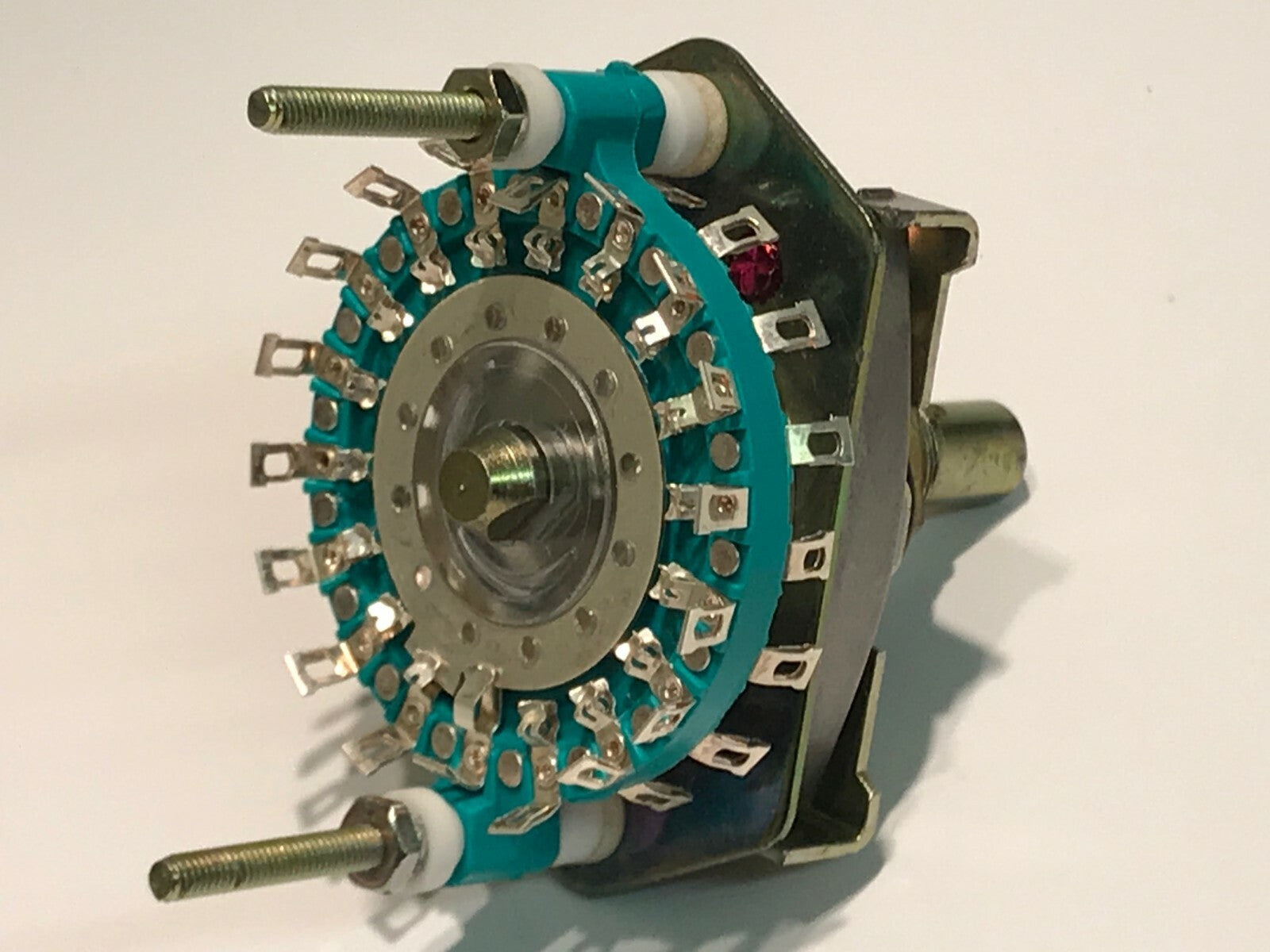

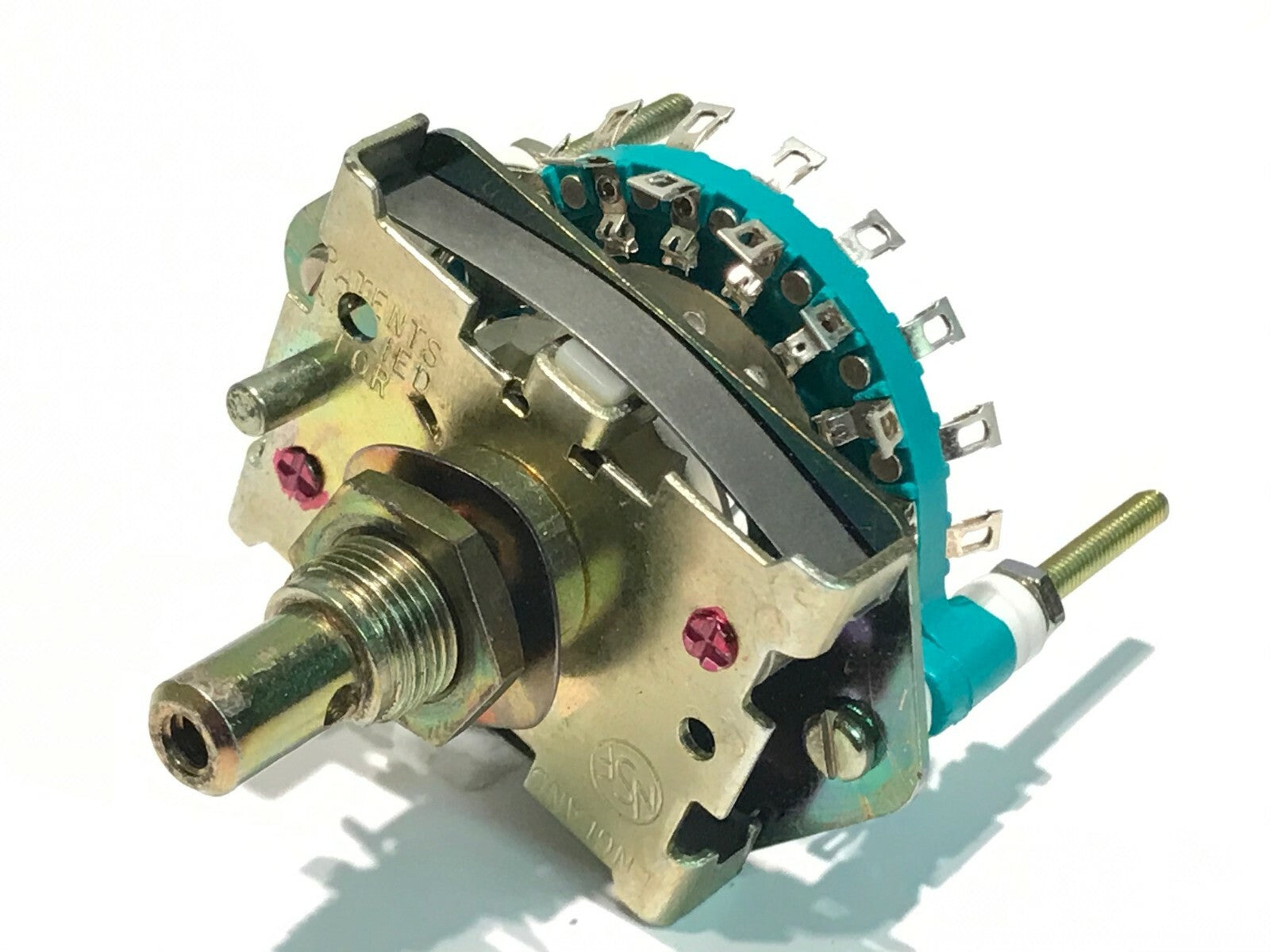

2 POLE 17 WAY WAFER ROTARY SWITCH

Manufactured by NSF to military specifications these are a premium quality old style stacked wafer rotary switch, with silver plated contacts.

They were spare parts for Marconi military attenuator sets.

2 pole 17 ways (make before brake)

Behind panel dimensions are roughly 30mm long x 45mm across, and the control shaft is standard 6.3mm diameter, and approximately 9mm long, plus the mounting bush (10mm deep) which requires a 10mm hole for mounting.

NEW OLD STOCK, LOVELY QUALITY INSTRUMENT CONTROL SWITCH

SUPPLIED AS SHOWN IN THE PHOTO.
