2 POLE 10 WAY NO STOP PAINTON ROTARY SWITCH faa15a

2 POLE 10 WAY NO STOP PAINTON ROTARY SWITCH faa15a

£22.00
£22.00
Sale Sold out
Taxes included.

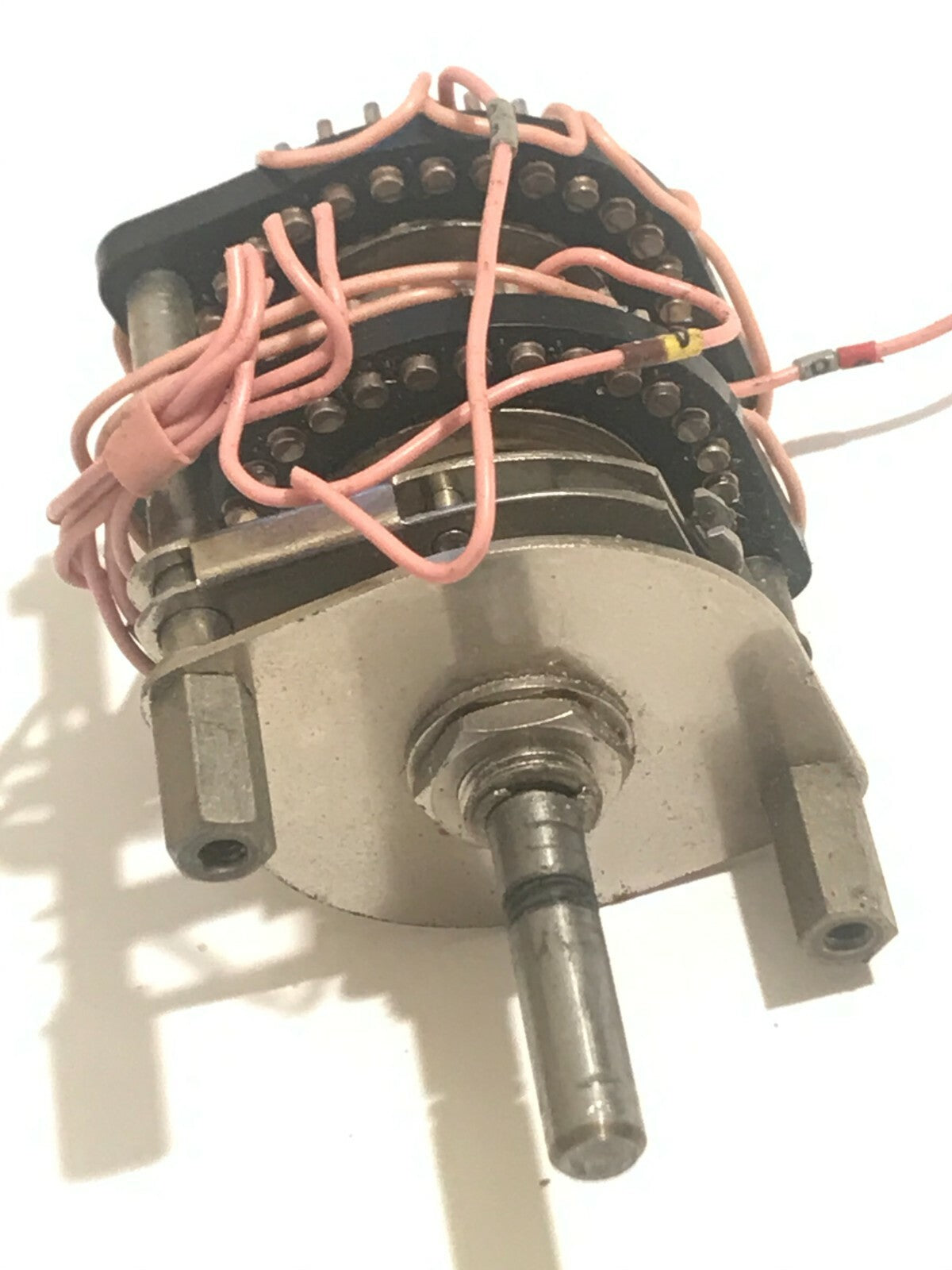

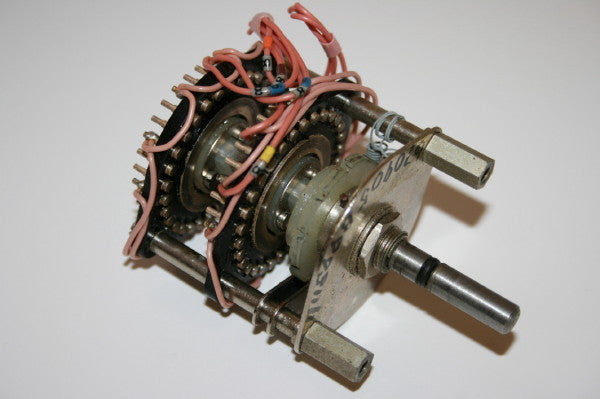

2 POLE 10 WAY NO STOP ROTARY SWITCH

These are the old fashioned 'Painton' type of multi-stack rotary switch.

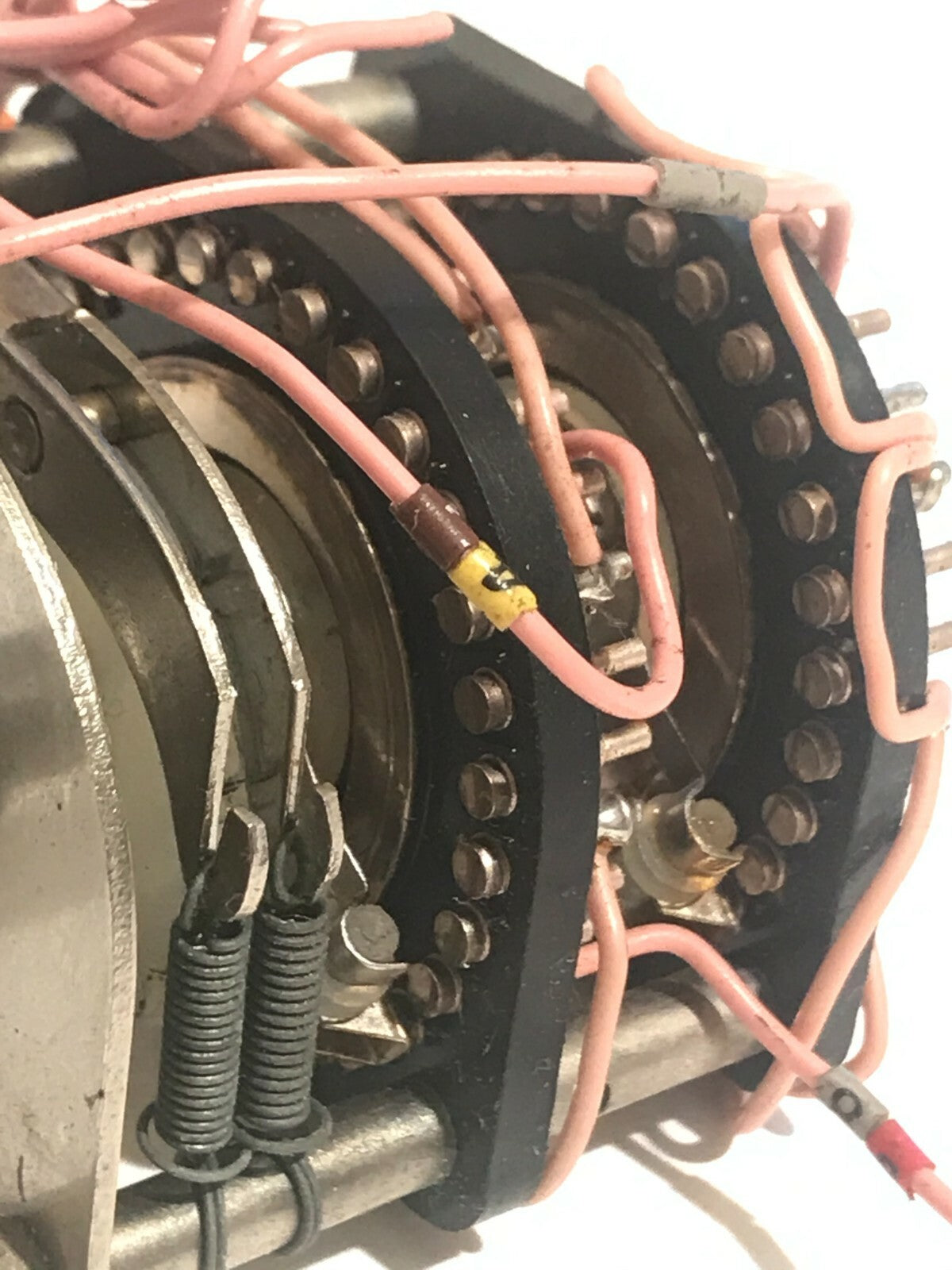

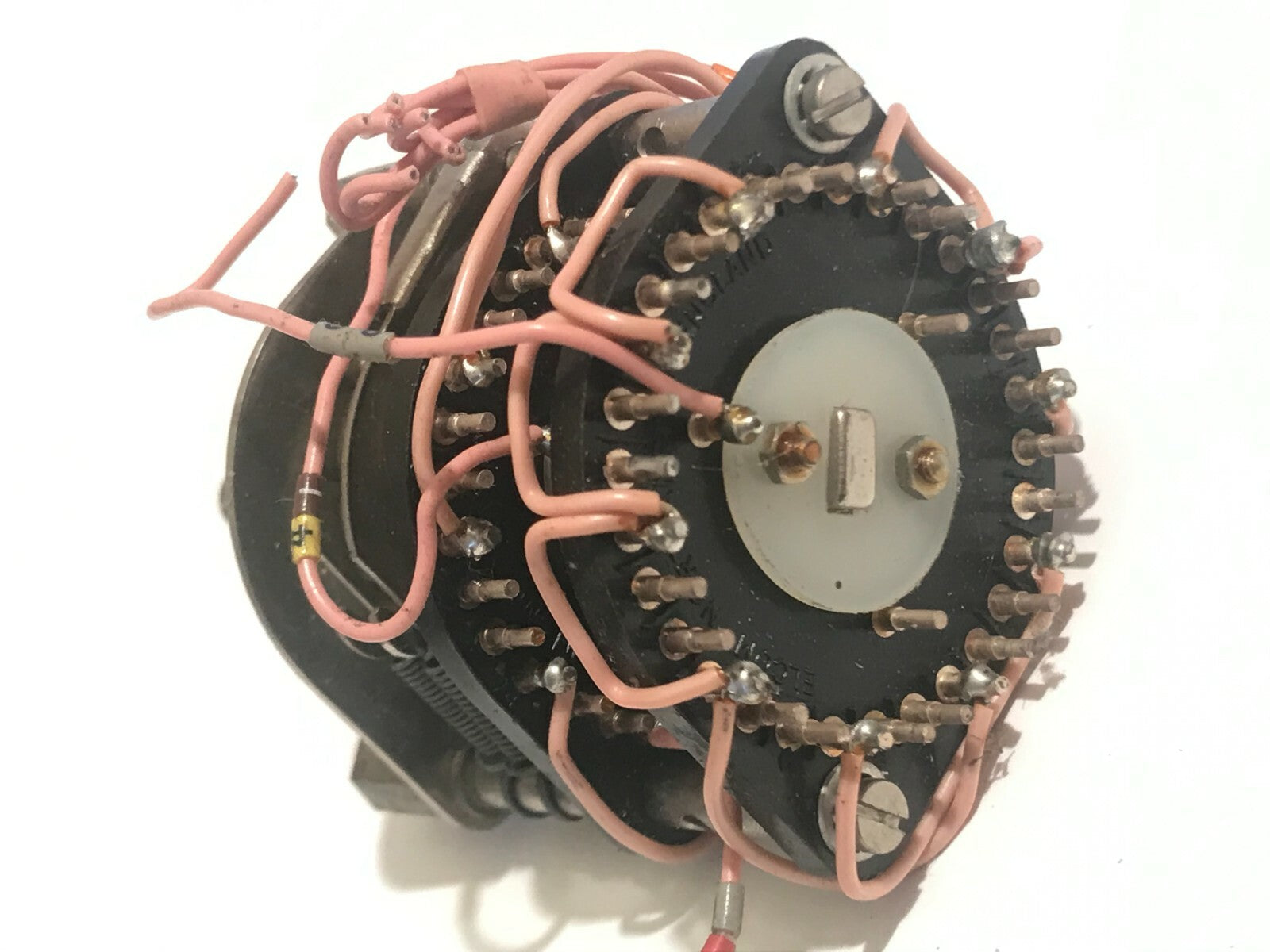

 2 wafers on this type, each of which is a single pole 10 way configuration, with no end point used, so the switch just rotates round and around the 10 positions.

 Manufactured to the highest specifications, heavily silver plated contacts, these have been removed from redundant military equipment, so the existing wiring will need to be removed before use, but as this switch originally cost over £120 these are a bargain and will give many more years of trouble-free use.

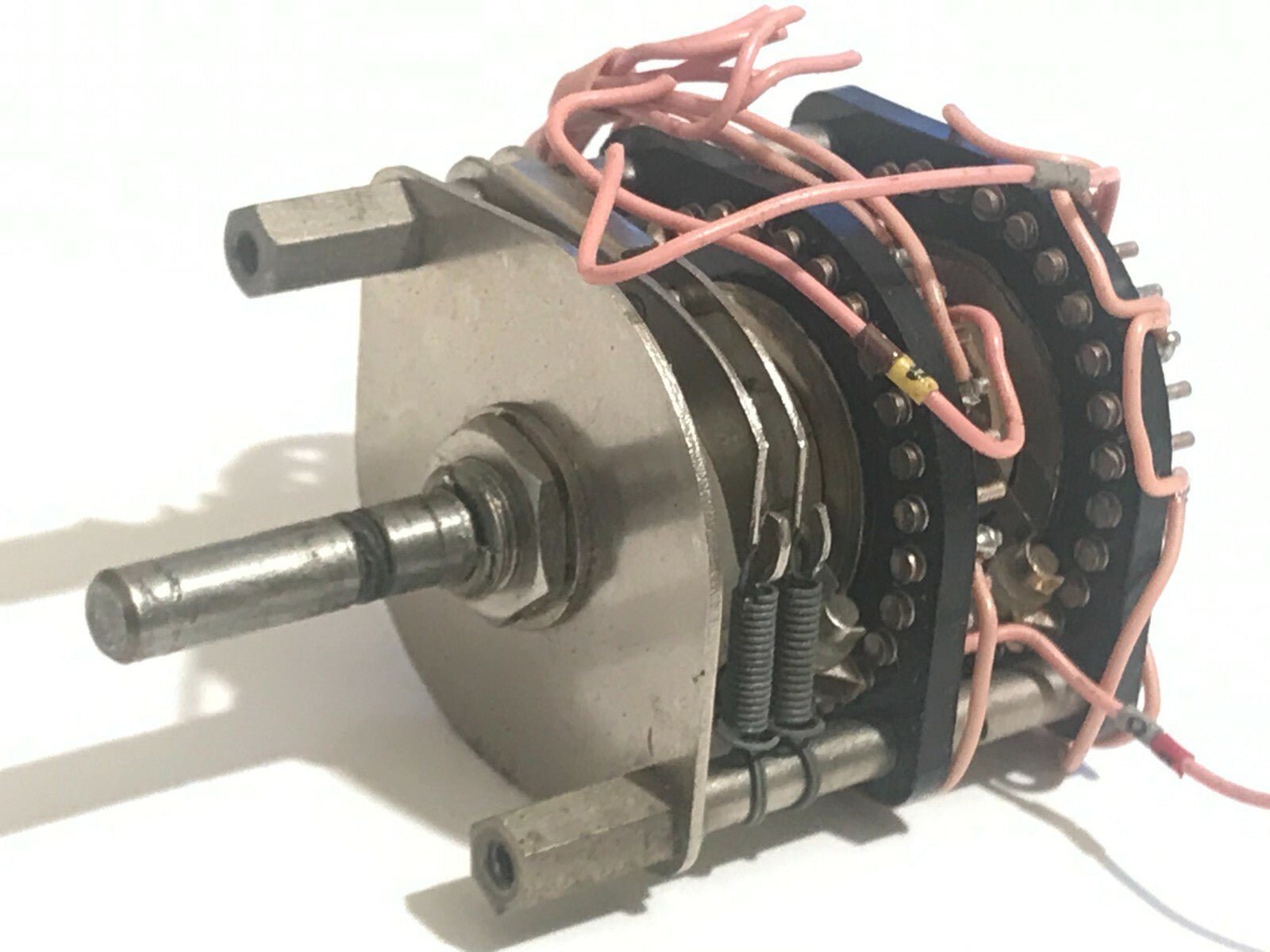

Standard 1/4" shaft, the unit measures approxiamatly 82mm in length overall x 55mm across.
