1SE2 MINIATURE SEALED MICRO SWITCH MILITARY HARSH ENVIRONMENT SPEC (x1) FD3A7

1SE2 MINIATURE SEALED MICRO SWITCH MILITARY HARSH ENVIRONMENT SPEC (x1) FD3A7

£25.00
£25.00
Sale Sold out
Taxes included.

MINIATURE 1SE2 SEALED MICRO SWITCH

Manufactured by Micro USA (now part of Honeywell) these are a military specification (aero - NSN 5930-99-947-2955) sealed miniature micro switch, manufacturers part number 1SE2.

One normally closed contact rated at  5A 250VAC contacts (so the circuit is broken when the plunger is pressed)

Although a reasonable amount of force is required to make the switch operate, it is a very precise, sensitive and short plunger travel which causes the operation.

Operating Force, Torque 141.7 ~ 482gf
Release Force 113gf
Pretravel 0.050" (1.27mm)
Differential Travel 0.004" (0.1mm)
Over travel 0.003" (0.076mm)
Beautiful switch ideal for many applications where a sealed unit is preferential.

Dimensions of the body are approxiamately 23mm x 15mm x 9mm with mounting holes are at 10mm centres.
Connection wires which are sealed into the switch are about 32cm in length.

New and unused, offered here at a fraction of the distributors usual cost.

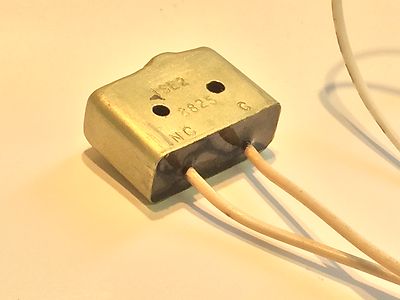

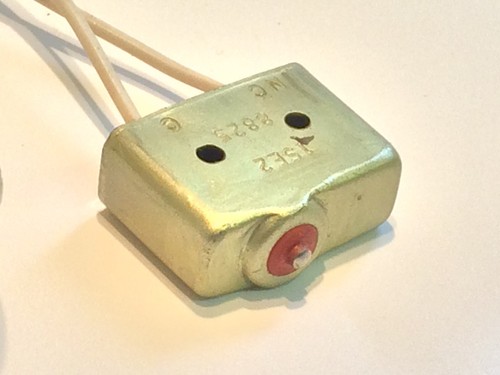

 SUPPLIED AS SHOWN IN THE PHOTO
