18 WAY JONES PLESSEY MALE & FEMALE PAIR CONNECTORS fd2e1p

18 WAY JONES PLESSEY MALE & FEMALE PAIR CONNECTORS fd2e1p

£26.00
£26.00
Sale Sold out
Taxes included.

18 WAY PLESSEY CONNECTOR PAIR

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

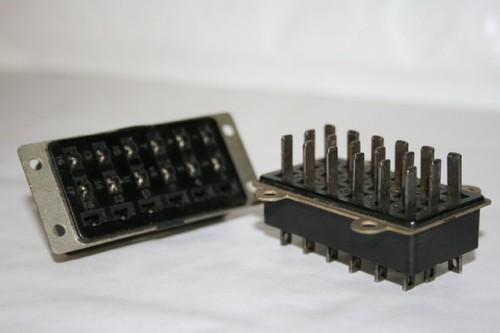

This type is a matching 18 way male and female pair, with 4 hole mounting plates. Six of the connections are at a 90 degree angle to the other twelve, thus avoiding an incorrect connection.

Only the connector bodies are supplied, used with some large heat shrink tubing or by mounting in a small die cast aluminium box for a housing (if required) they offer a quality pair of connections at a good price.

 Superb vintage miltary specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.
 Rated as high as 1000V working, and upto 10A 250V per contact.

Dimensions of the bodies are approx 50mm x 26mm and the mounting plates have securing holes at approx 32mm x 34mm centres.

 New and unused vintage stock.
