Plessey

18 WAY JONES PLESSEY CHASSIS MALE CONNECTOR fd2e1

18 WAY JONES PLESSEY CHASSIS MALE CONNECTOR fd2e1

£17.00
£17.00
Sale Sold out
Taxes included.

18 WAY PLESSEY CHASSIS PLUG

These are known as Plessey Painton connectors, being manufactured by the company of the same name. Plessey actually called them the 'Multicon' range, they are also sometimes referred to as Jones or in the USA, Cinch plugs.

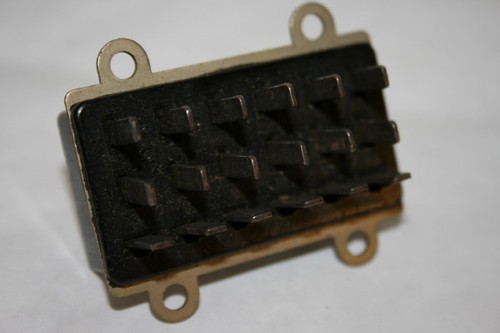

This type is an 18 way male (designed primarily for chassis mount), with a strong 4 hole mounting plate. Six of the connections are at a 90 degree angle to the other twelve, thus avoiding an incorrect connection.

 Superb vintage miltary specification heavy duty connectors, the contact is provided by a heavily silver plated plug blade contact engaging with a heavily silver plated socket clip contact. Absolute reliability is ensured because each socket clip has 4 individual areas of contact with each plug blade.

Rated as high as 1000V working, and upto 10A 250V per contact.

 Dimensions of the body are approx 50mm x 28mm and the 4 hole mounting plate is approx 65mm x 29mm

New and unused vintage stock.

 SUPPLIED AS SHOWN IN THE PHOTO.
