18 WAY BNC & PHONO VIDEO AND AUDIO IN OUT / OUTPUT CARD PCB fca26A

18 WAY BNC & PHONO VIDEO AND AUDIO IN OUT / OUTPUT CARD PCB fca26A

£18.00
£18.00
Sale Sold out
Taxes included.

PCB WITH 18 BNC AND PHONO FEMALES

These are an interesting and potentially useful item, they were manufactured for use in Inspires Blue 960H 16 Channel video / audio recorders, the PCB assembly number is 0B-6188FD-V1.0

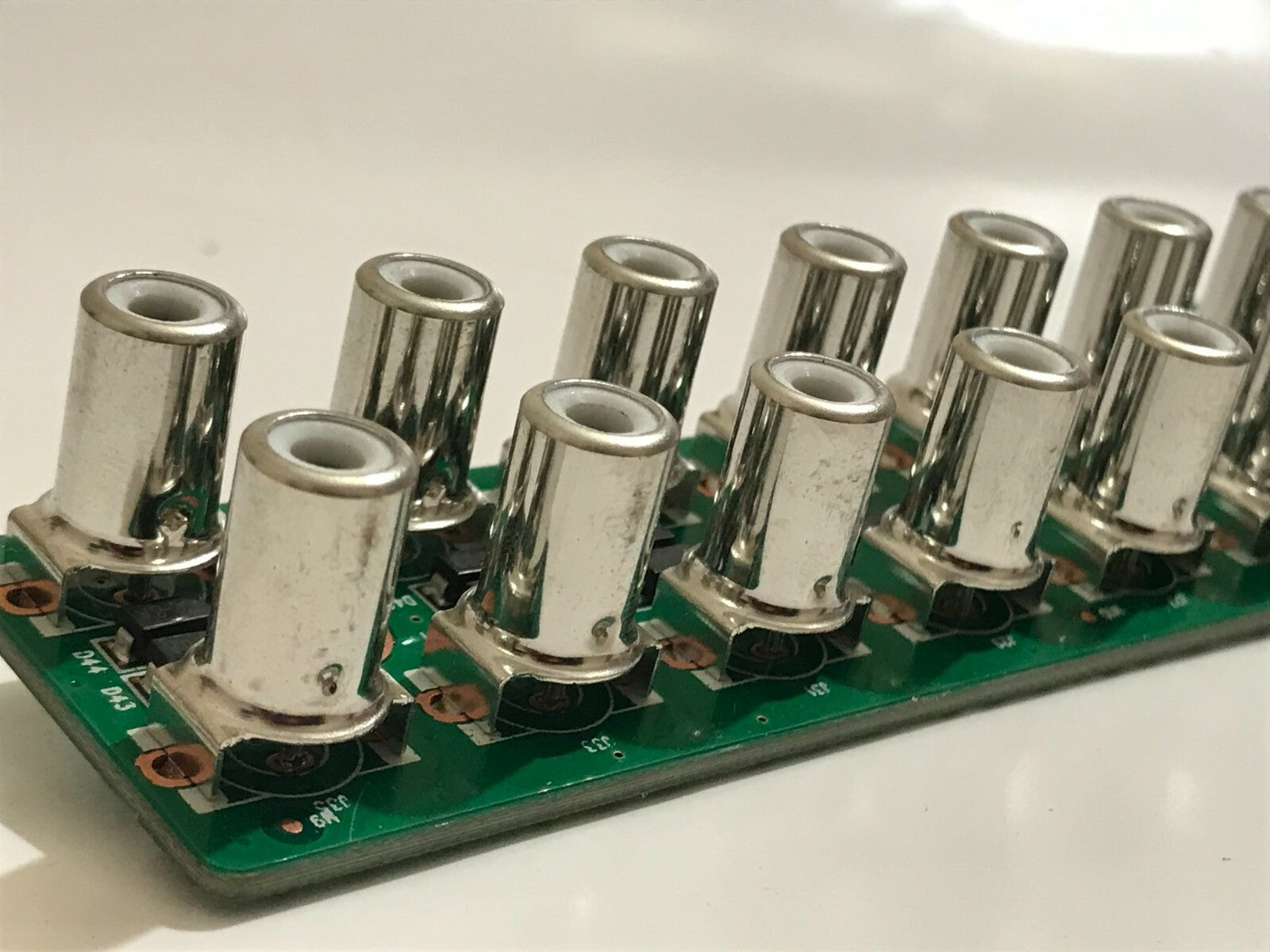

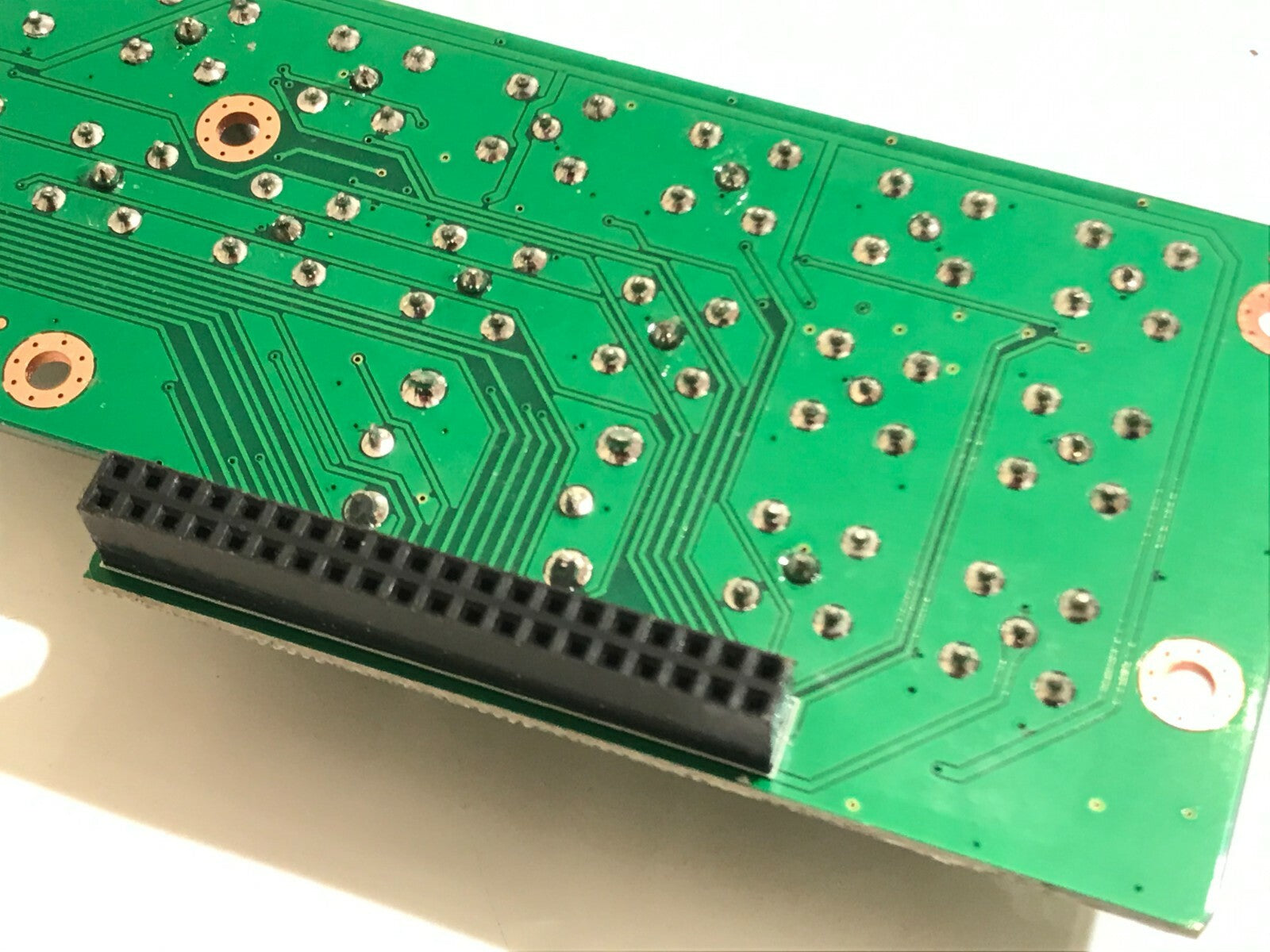

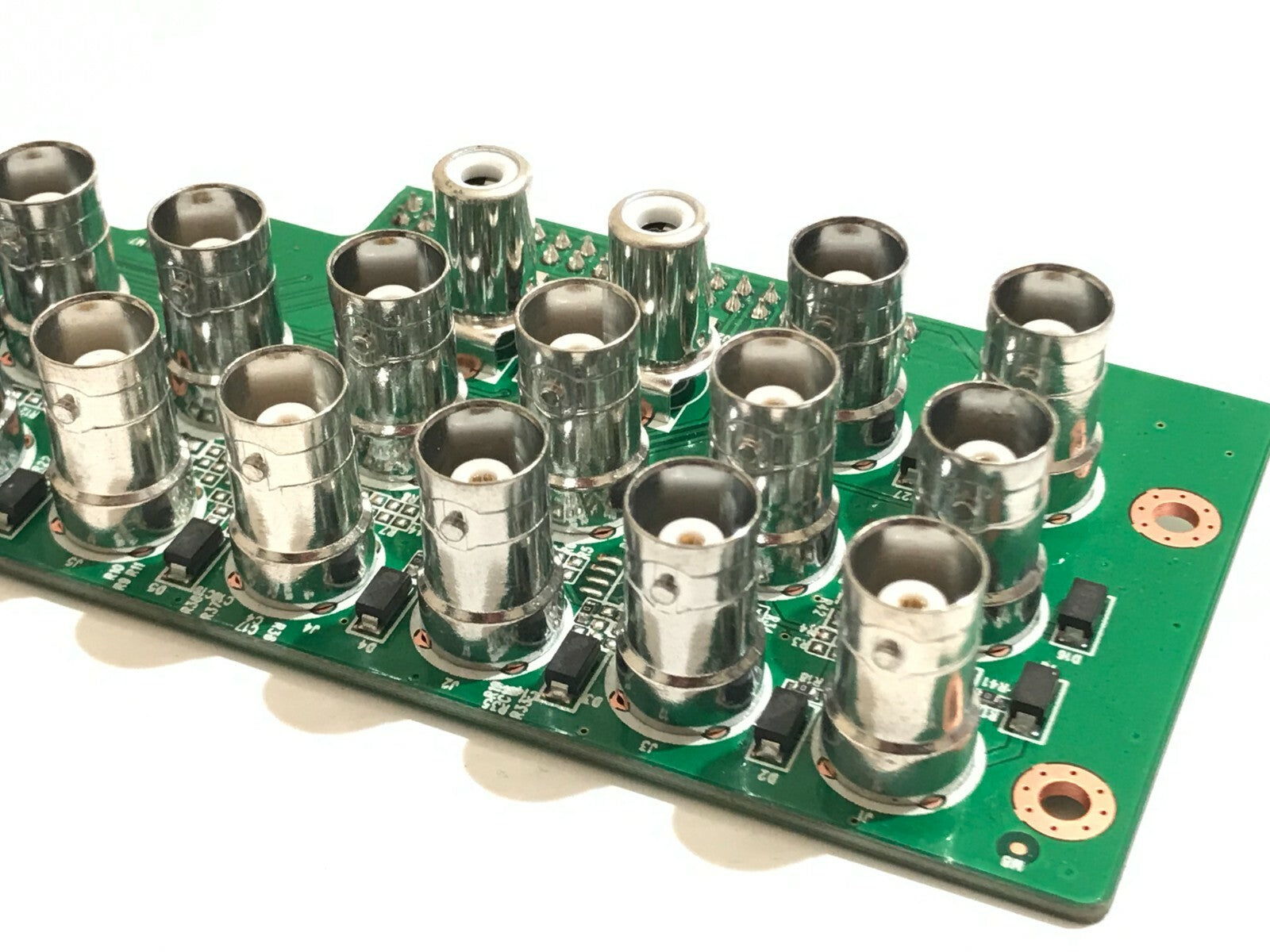

They are basically a highly populated video input / output card, with 18x 75 Ohm BNC females, and 18x RCA phono females.  They were configured in the original equipment as 16 inputs and 2 outputs.  But all the sockets are connected individually back to a single 40 way standard IDC type connector.

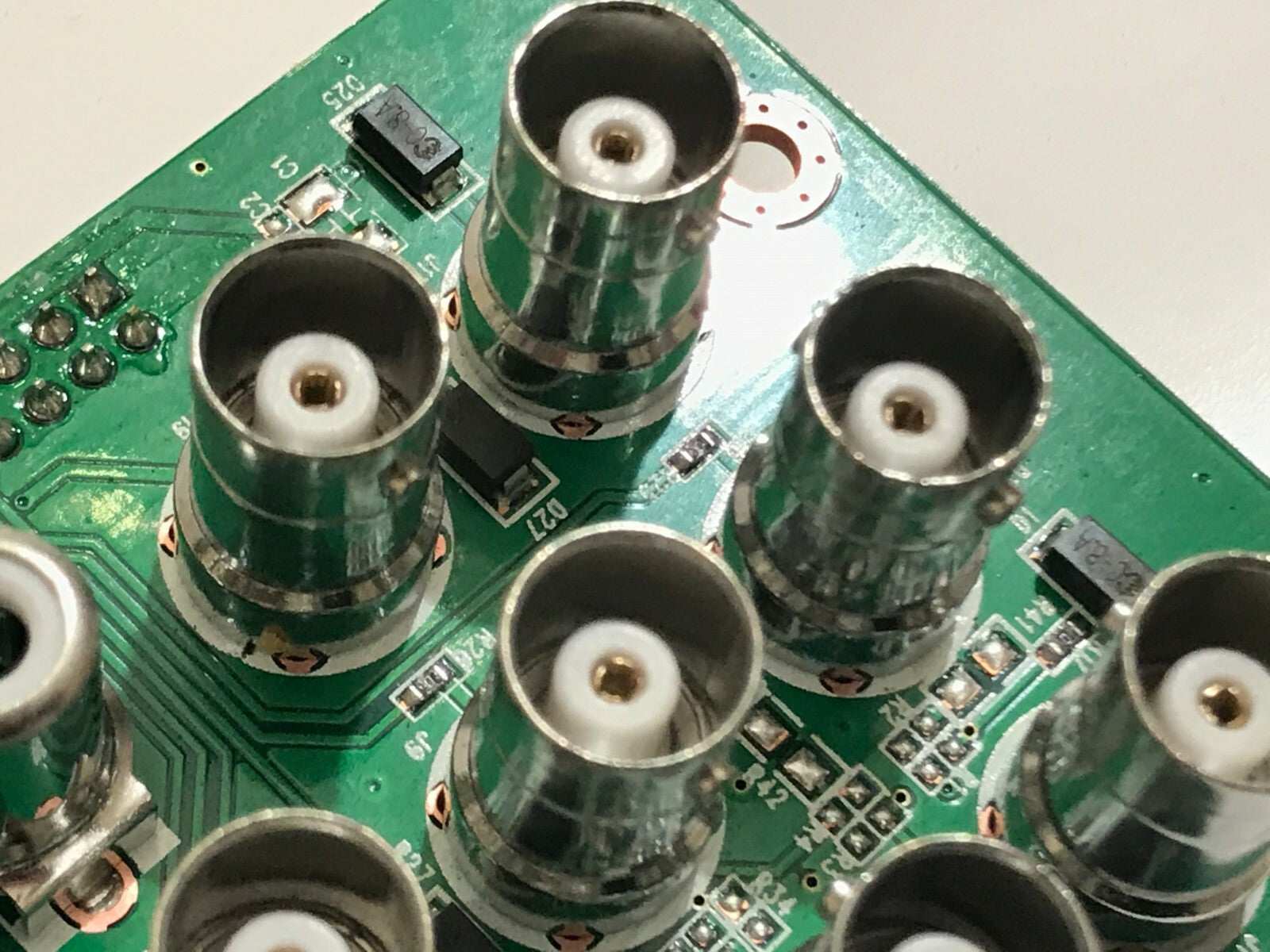

Every socket also appears to be protected by a diode.

Very high quality assemblies with the PCB been gold plated.

Very useful for anyone playing with video / audio in multiple channels.

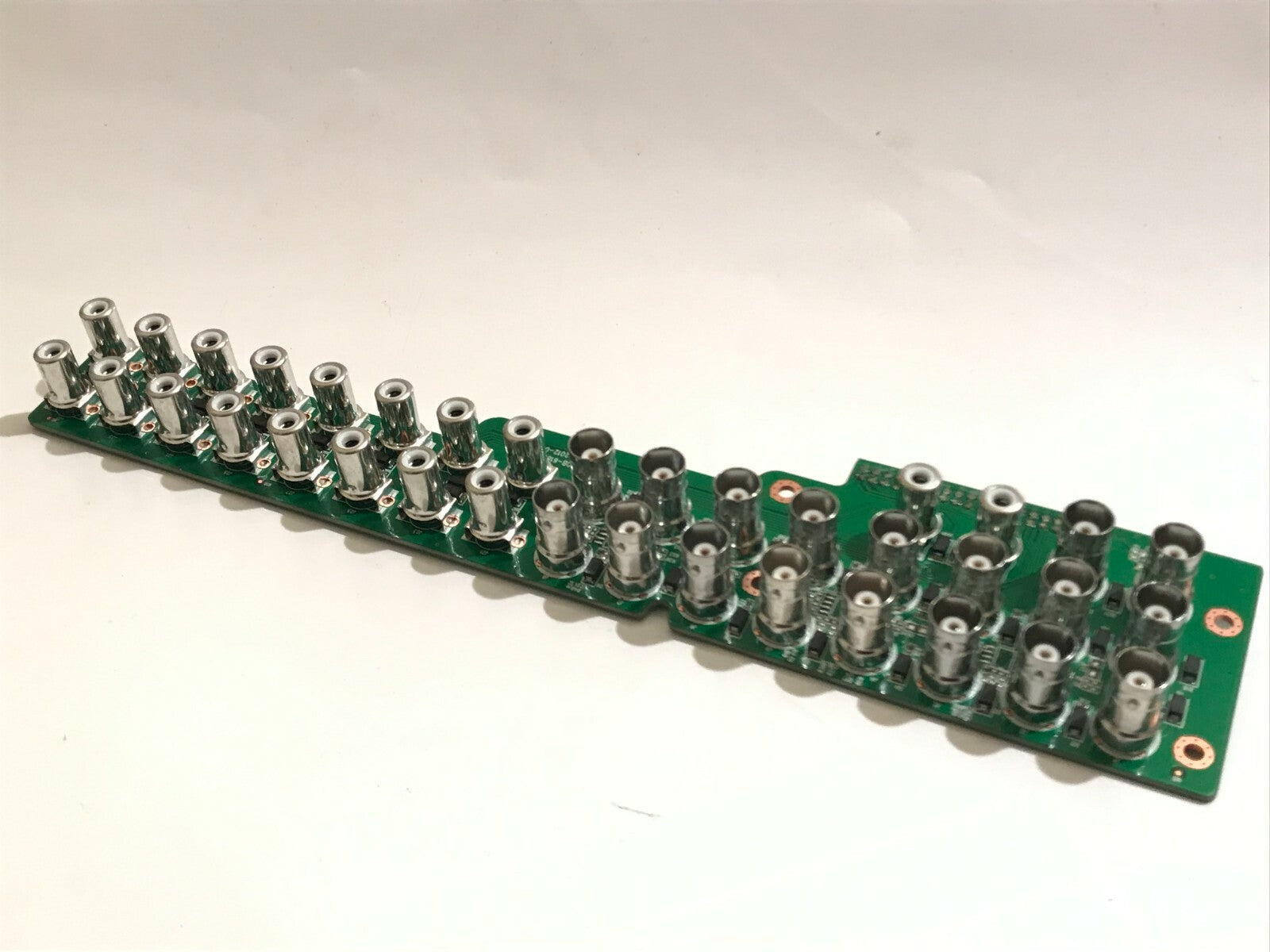

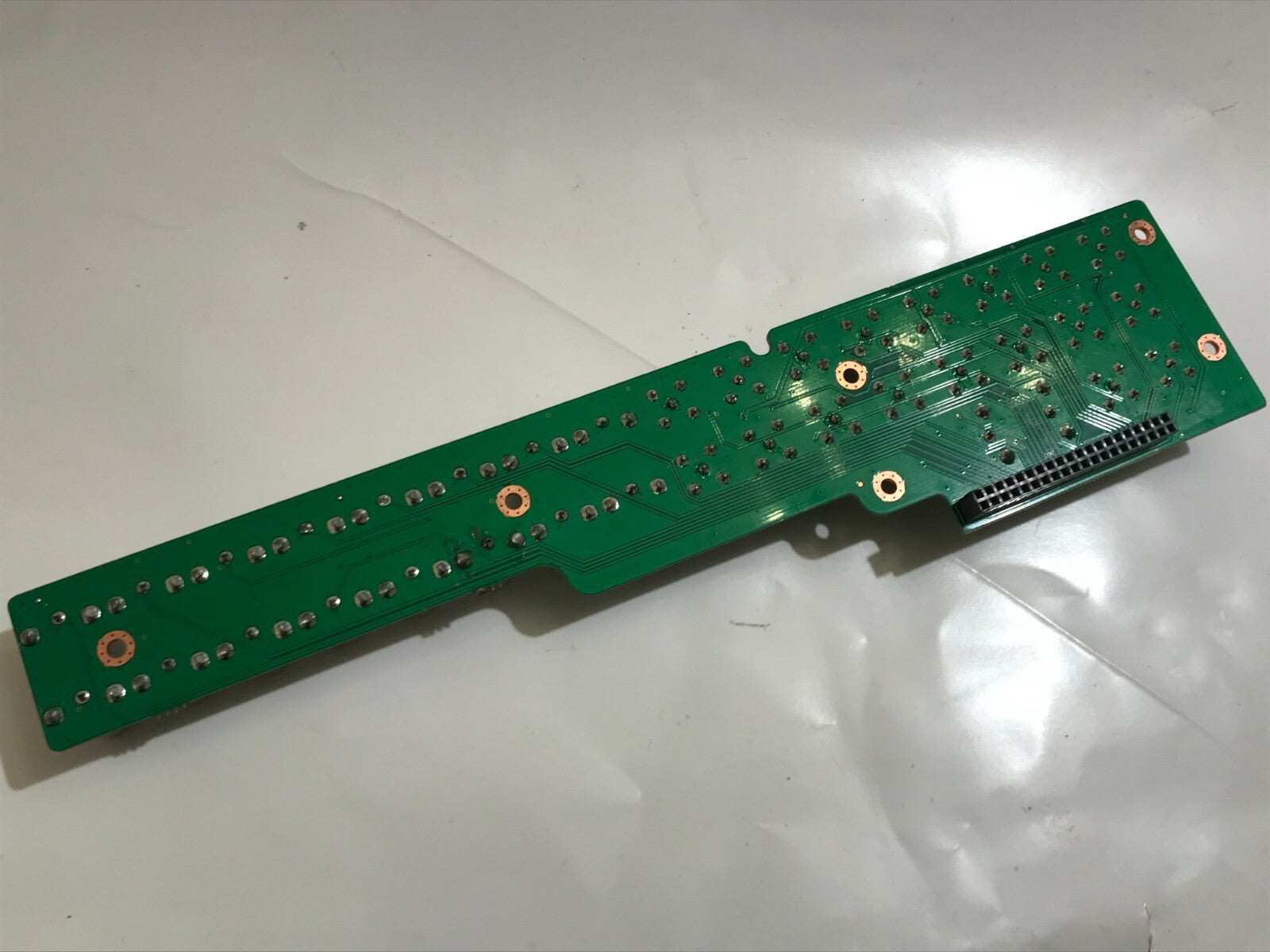

Dimensions are 265mm x 60mm at the widest end and 32mm at the narrow end, please see all the photos.

 New stock, never used.
Sold and priced each x1
