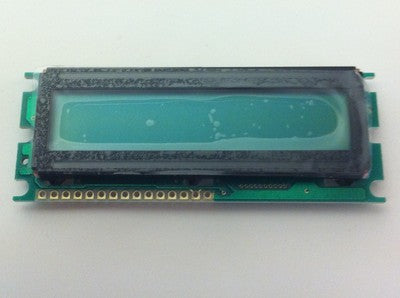

16 CHARACTER 2 LINE LCD DISPLAY VIKAY 2364ST NOT BACK LIT bsb5da

16 CHARACTER 2 LINE LCD DISPLAY VIKAY 2364ST NOT BACK LIT bsb5da

£6.00
£6.00
Sale Sold out
Taxes included.

16 X 2 LCD DISPLAY

These are a standard good quality 16 character 2 line L.C.D.

Black text on grey background, not back lit.
Dimensions are 80mm x 30mm.

Connections:

1. VSS Ground terminal of module
2. Vdd Supply terminal of module, +5V
3. Vo Power supply for Liquid Crystal Drive
4. RS Register Select
5. R/W Read/Write
6. E Enable
7~14. DBθ ~ DB7
15. Not connected PRICED AND SUPPLIED EACH  X1
