15 AMP NORMALLY CLOSED BONNELLA V3 MICRO SWITCH fba27

15 AMP NORMALLY CLOSED BONNELLA V3 MICRO SWITCH fba27

£5.00
£5.00
Sale Sold out
Taxes included.

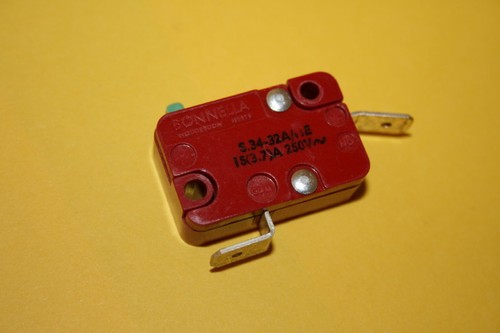

15 AMP NORMALLY CLOSED V3 MICRO SWITCH

Manufactured in the UK by Bonnella, these are a standard pattern V3 micro switch with 15 amp 250V AC rated normally closed contacts, (normally closed means the circuit is made when the switch is in its resting state, when the actuator is pressed then the circuit is  broken.

The distance the actuator has to move before switching is about 2mm, and although they are quite a sensitive switch, a fair force is required to push the actuator, they are quite sprung. Maximum travel after the switch has been activated is about another 2mm.

Priced and supplied each x1 with quantity discounts available
