12V DC SINGLE POLE ON - OFF HEAVY DUTY RELAY WITH 30A CONTACTS x1 - 20 fba12B

12V DC SINGLE POLE ON - OFF HEAVY DUTY RELAY WITH 30A CONTACTS x1 - 20 fba12B

£8.00
£8.00
Sale Sold out
Taxes included.
HOW MANY

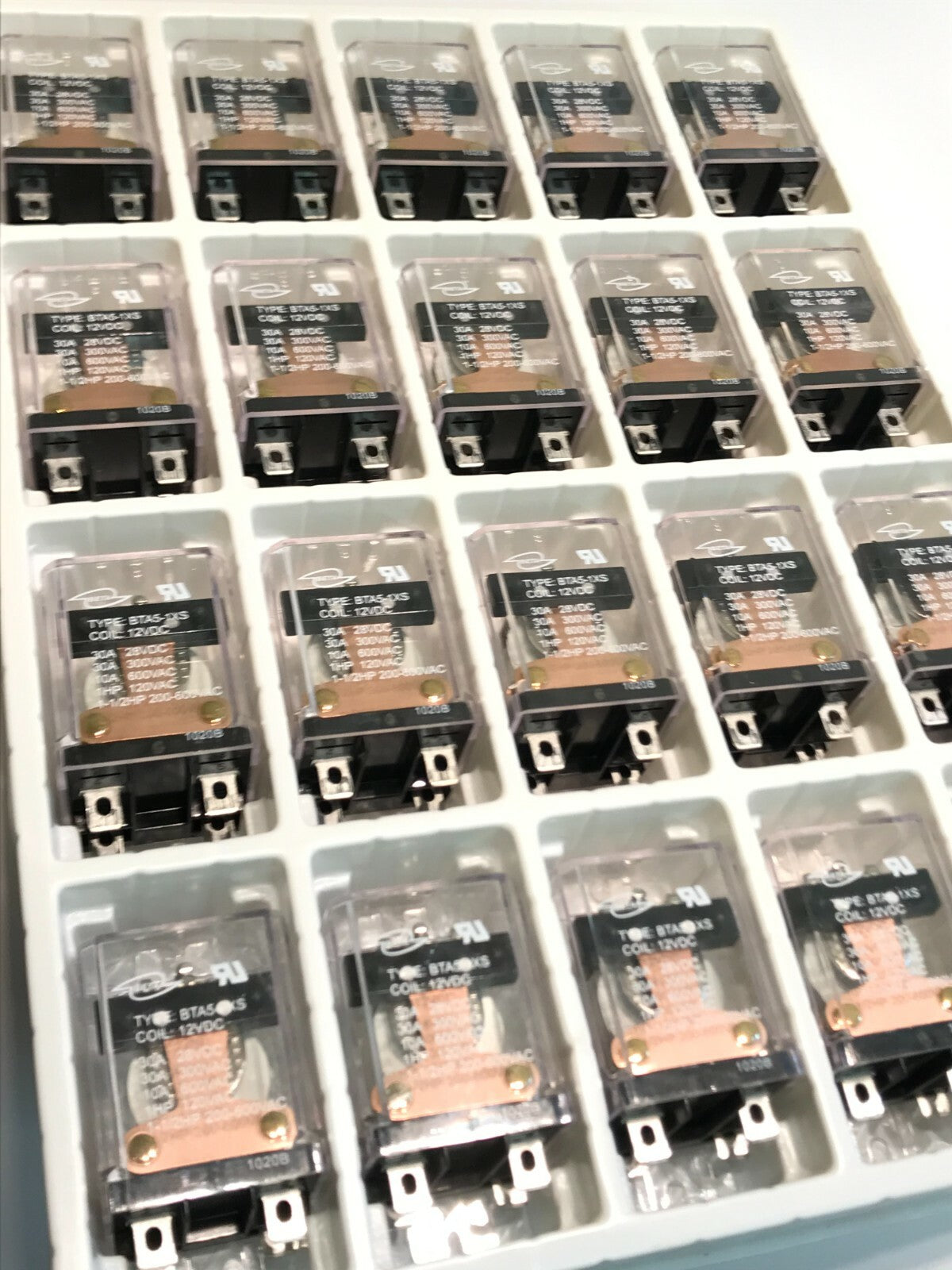

12V DC HEAVY DUTY SINGLE POLE RELAYS
size="6">

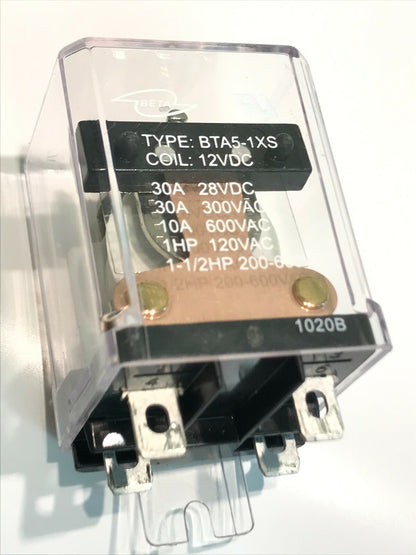

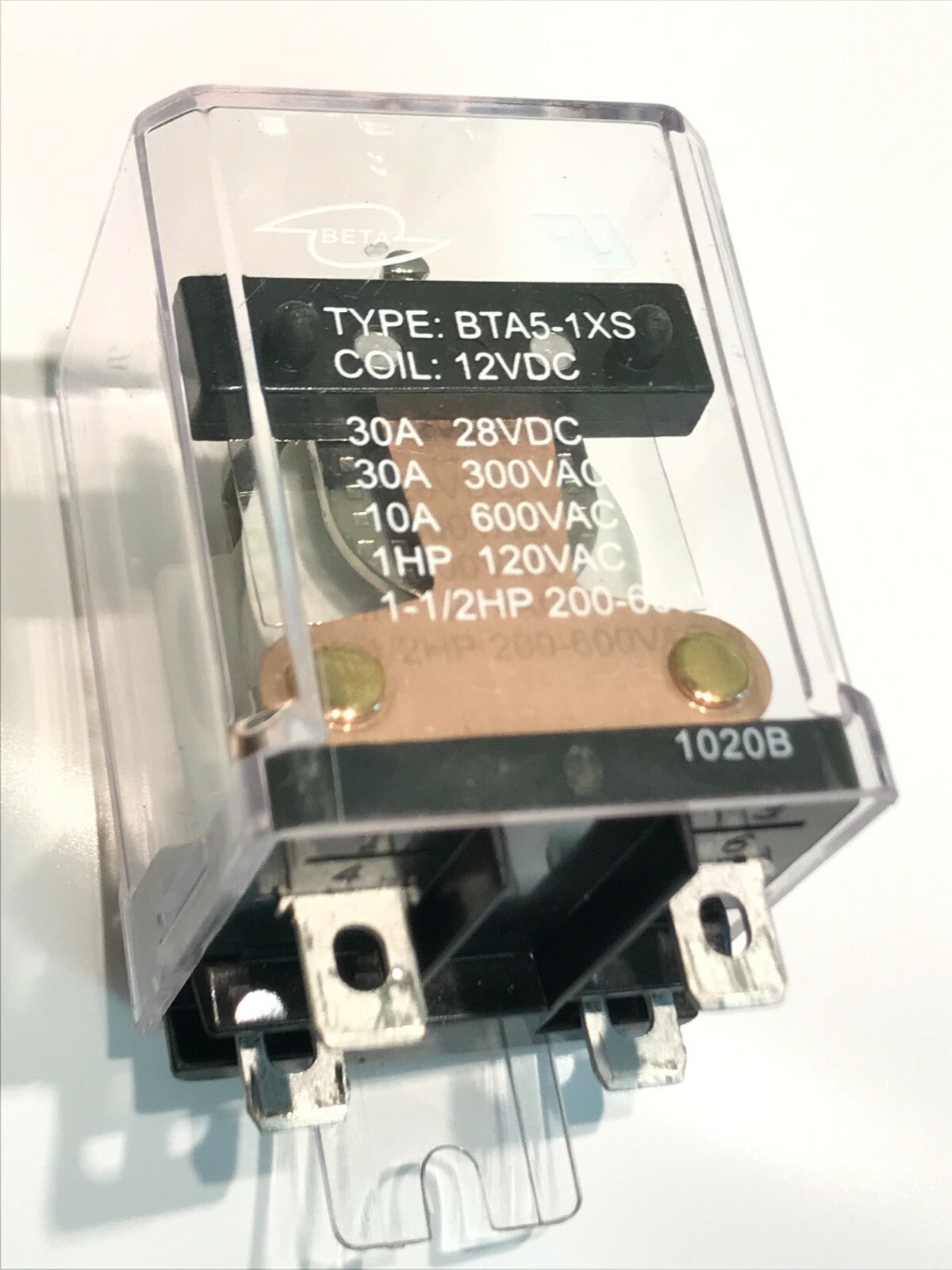

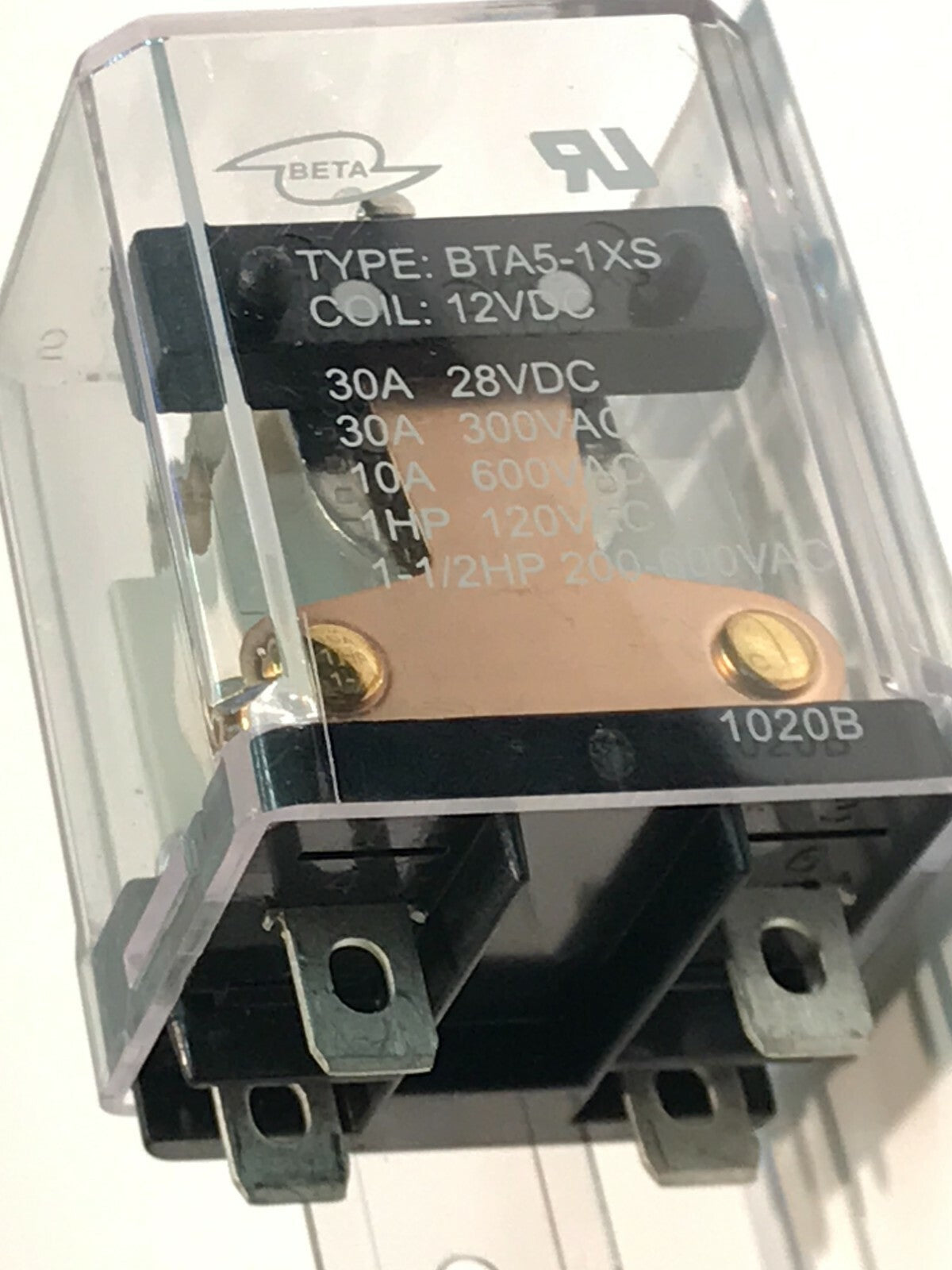

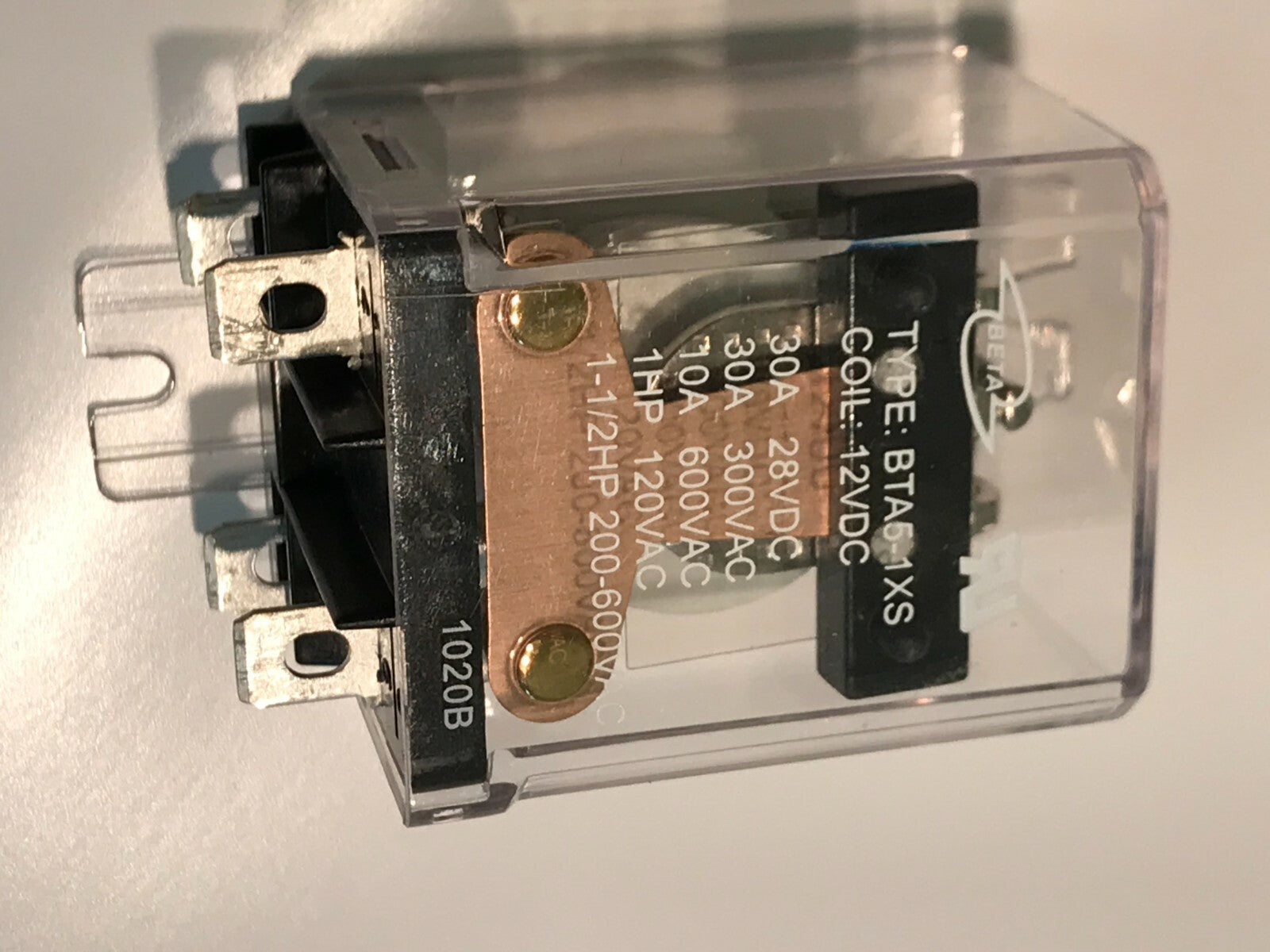

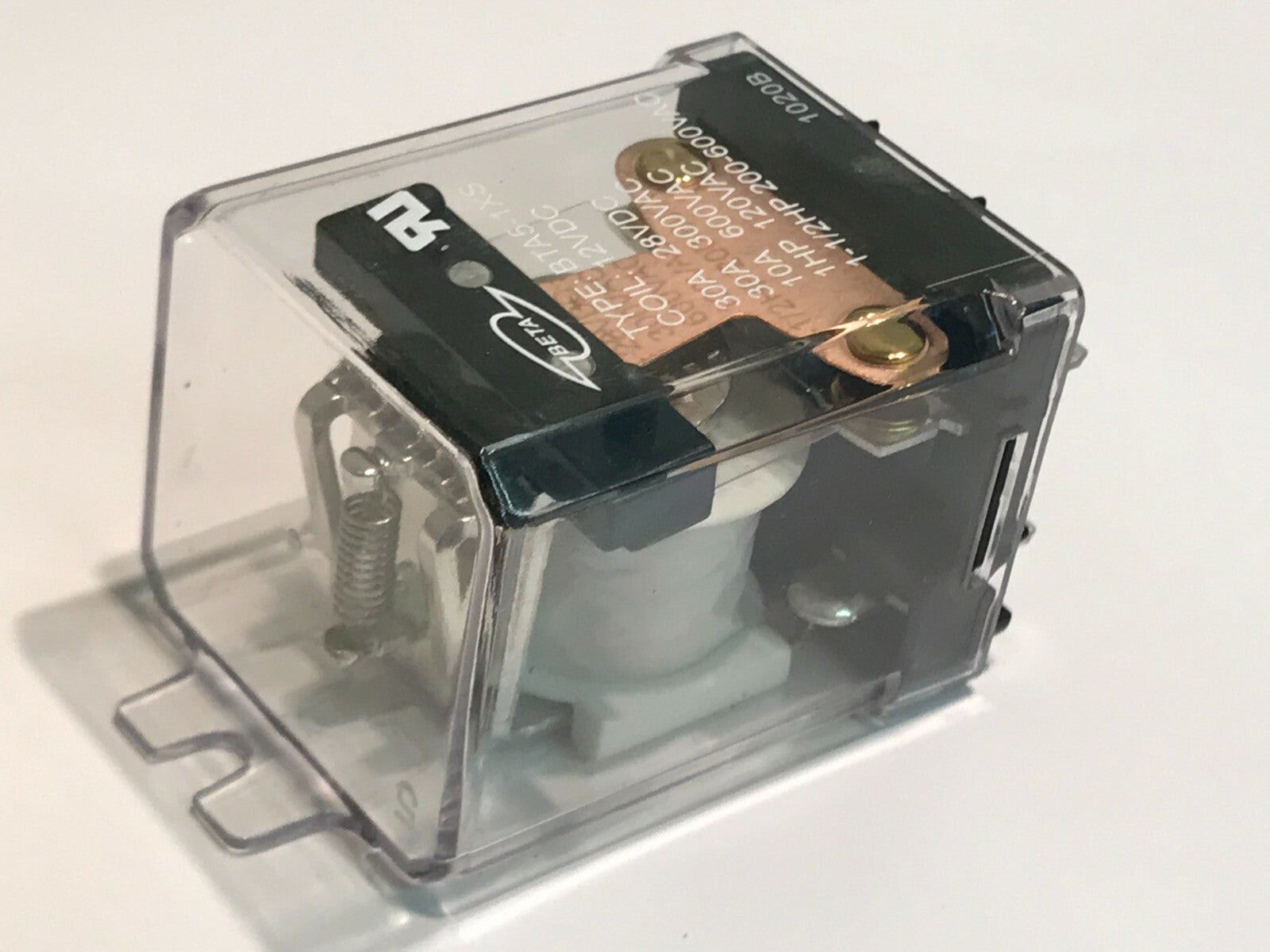

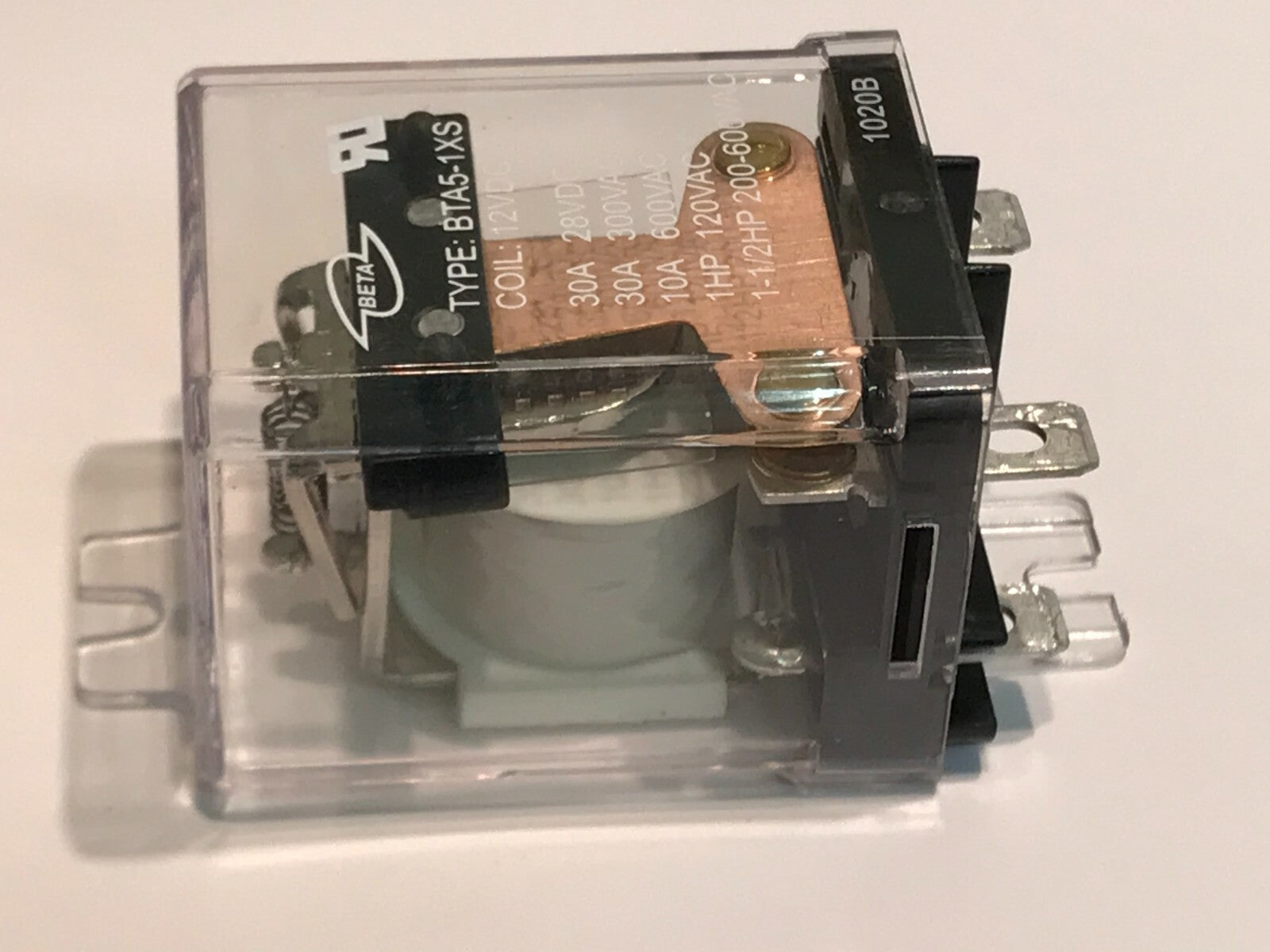

 Manufactured by Beta as their part number
BTA5-1XS-S-C1-12VDC these are a premium quality industry standard 12V DC coil high power ON - OFF ( so single pole single throw SPST) relays.

 SPST gold plated heavy duty contacts rated to 30A at 28Vdc, 30A at 600Vac, 1HP at 120Vac

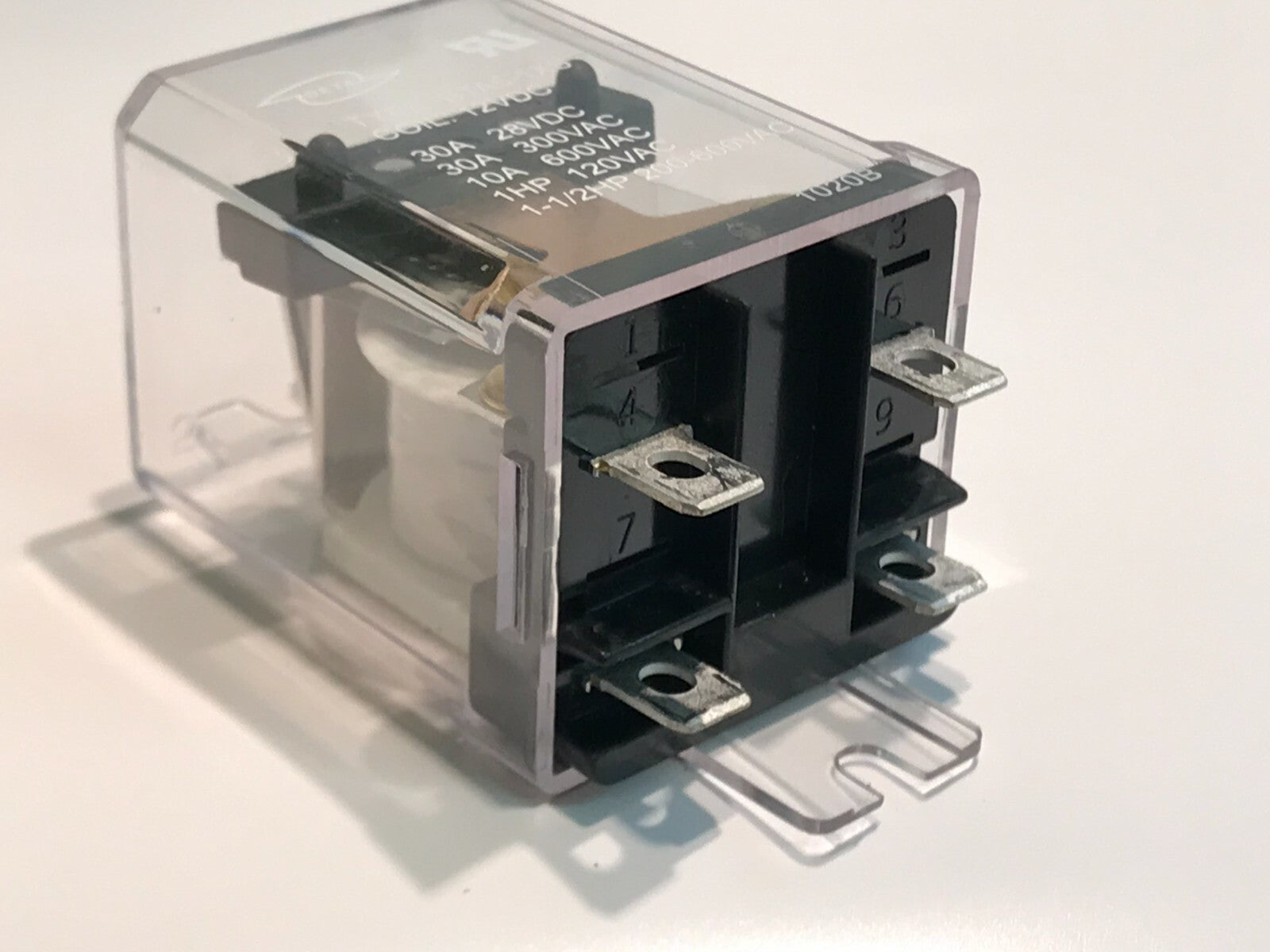

4 Faston 6.3mm spade terminal connections and with flange mounts if it is required to be bolted down.

UL & CE Approved

 Dimensions of the main body 48 x 38 x 35mm (plus connections) 70mm across the flange mount with mounting centers at 64mm.
Overall body length including the connections is 57mm.
