PENTAGON

10R 130W 10 OHM VARIABLE HIGH POWER LOAD RESISTOR NEW PENTAGON PB130H fd1K11

10R 130W 10 OHM VARIABLE HIGH POWER LOAD RESISTOR NEW PENTAGON PB130H fd1K11

Regular price £45.00
Regular price Sale price £45.00
Sale Sold out
Taxes included.

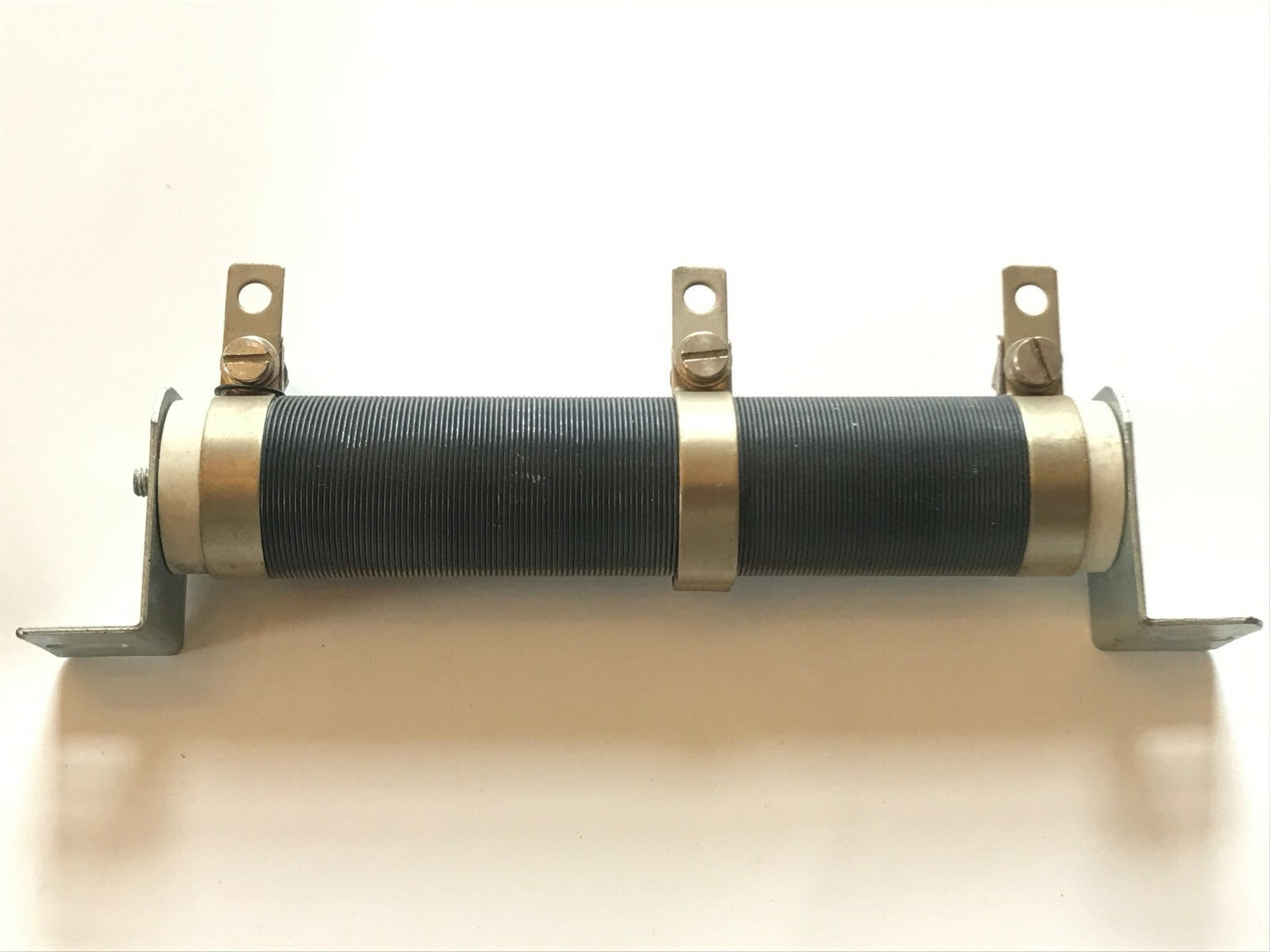

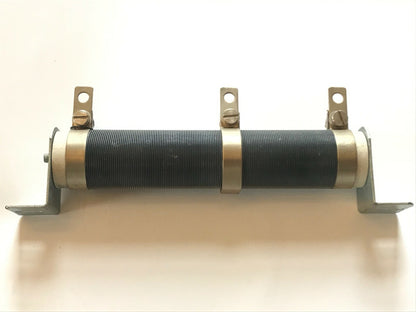

10R 130W VARIABLE LOAD RESISTOR

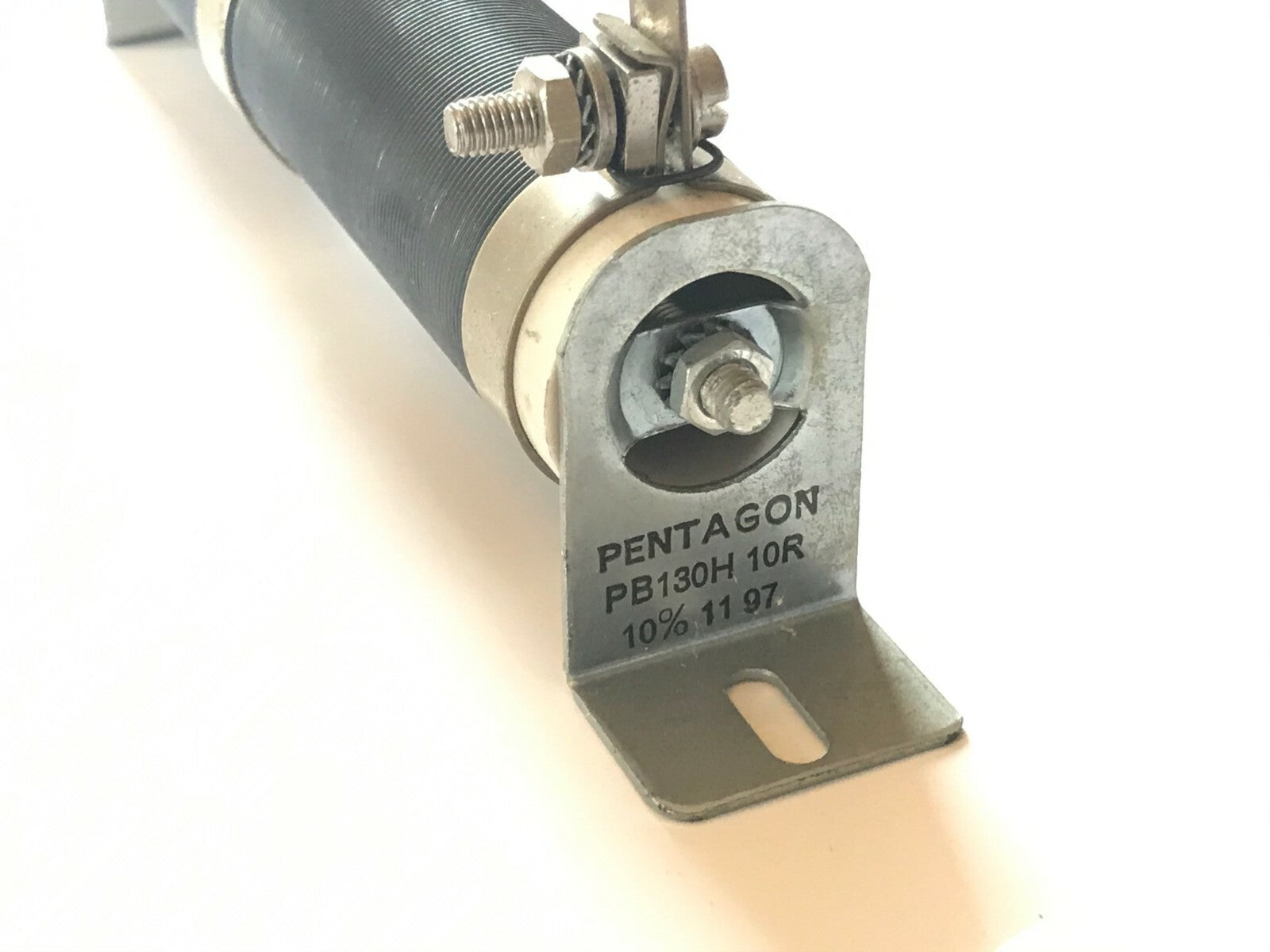

Manufactured by Pentagon in the UK as their part number PB130H-10R, these are a 10 Ohm 130 Watt wire wound adjustable resistor.

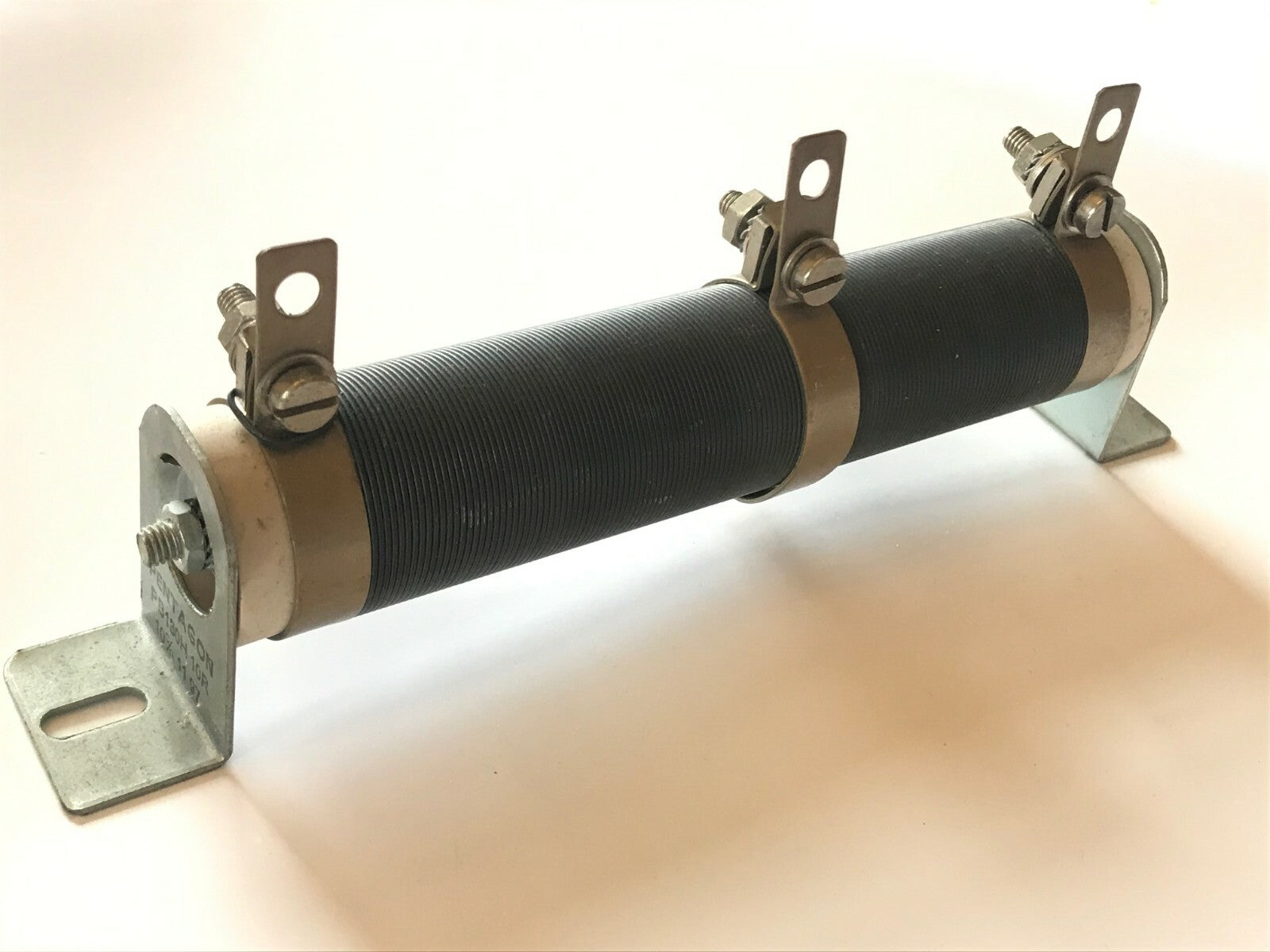

 The resistance is changed by moving the adjustable center sliding lug.

Not often seen anymore, very useful low value high power load resistor, they make an ideal voltage divider.

The center sliding connection can be tightened up and 'set' once the desired resistance has been found.

Overall dimensions including brackets are 195mm long x 28mm diameter, plus connections. Overall height from bottom of bracket to top of connections is 67mm.
