1000UF 16V 105 TEMP LOW IMPEDANCE ESC CAPACITOR (x2) fba20d

1000UF 16V 105 TEMP LOW IMPEDANCE ESC CAPACITOR (x2) fba20d

£2.00
£2.00
Sale Sold out
Taxes included.

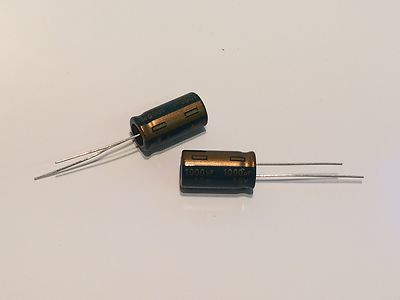

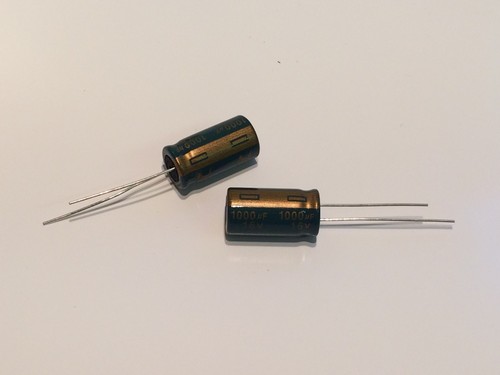

1000UF 16V 105 TEMP CAPACITOR (X2)

Manufactured by Arcotronic as part of the ESC series of industry standard long life, low leakage and low impedance radial electrolytics, these are a best quality 1000uF 16 Volt electrolytic can capacitor.

Extended life and 105 degrees temperature rating, quite a high ripple current of 1.25A for the physical size, these caps are designed specially for high frequency applications.

 Designed with professional applications in mind, this capacitor is ideal for filtering in linear and switching power supplies, motor drives and similar applications. Low E.S.R rating, it exhibits good audio band capabilities and as such is also a very good general purpose PSU capacitor for audio applications, excellent value for money.

Insulated sleeve manufacture with a bottom safety vent.

Compact size Dimensions are 19mm high x 10mm diameter with leads at 10mm centres.

 For those concerned, this item is ROSH compliant, and Arcotronics part number is ESC108M016AH4AA

 PRICED AND SUPPLIED IN PACKS OF 2 WITH QUANTITY DISCOUNTS AVAILABLE.
