ELMA

10 WAY 2 POLE NO STOP ELMA 01 SERIES MINI ROTARY SWITCH AUDIOPHILE TBA

10 WAY 2 POLE NO STOP ELMA 01 SERIES MINI ROTARY SWITCH AUDIOPHILE TBA

£30.00
£30.00
Sale Sold out
Taxes included.

2 POLE 10 WAY ROTARY SWITCH AUDIOPHILE

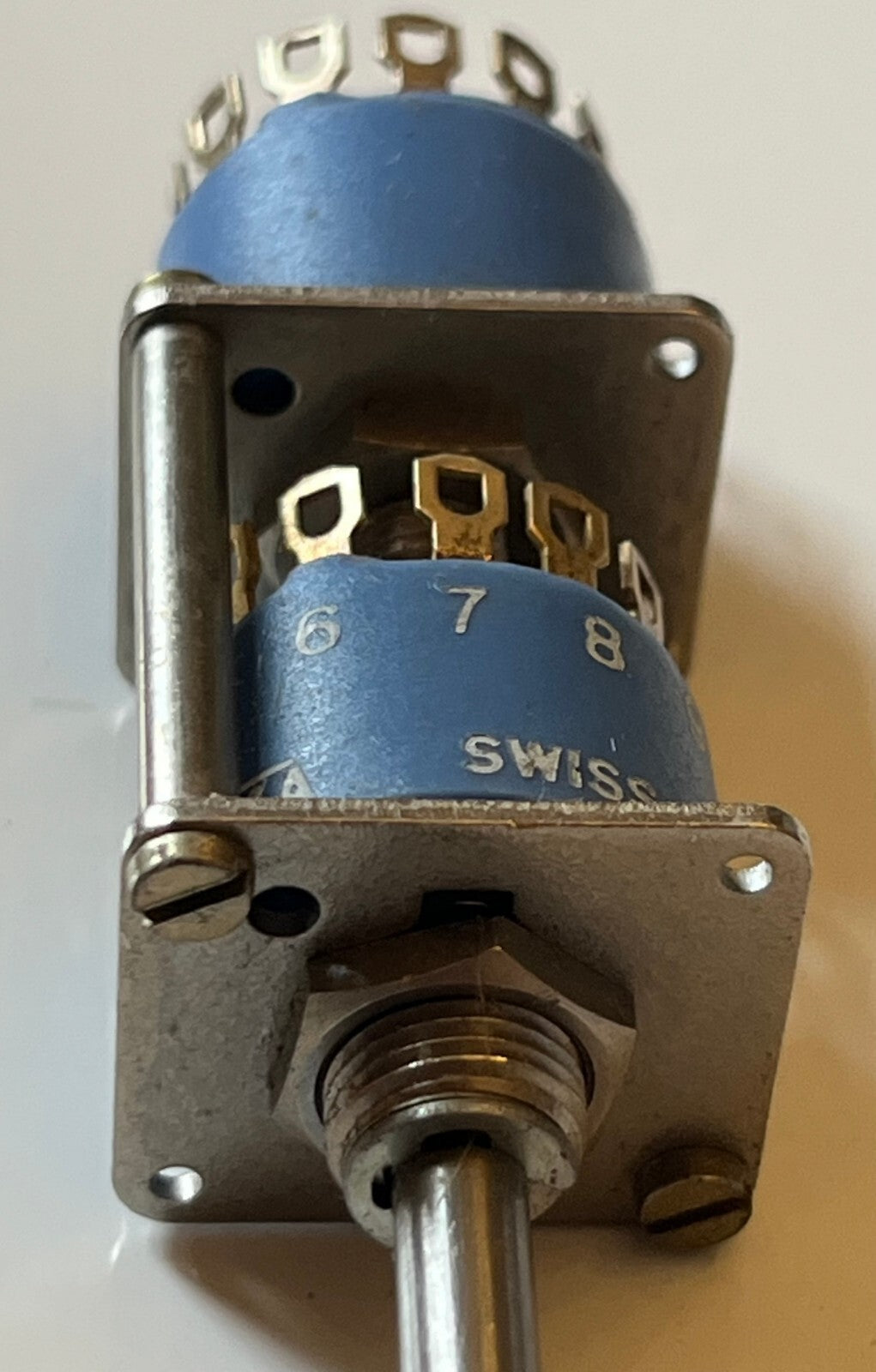

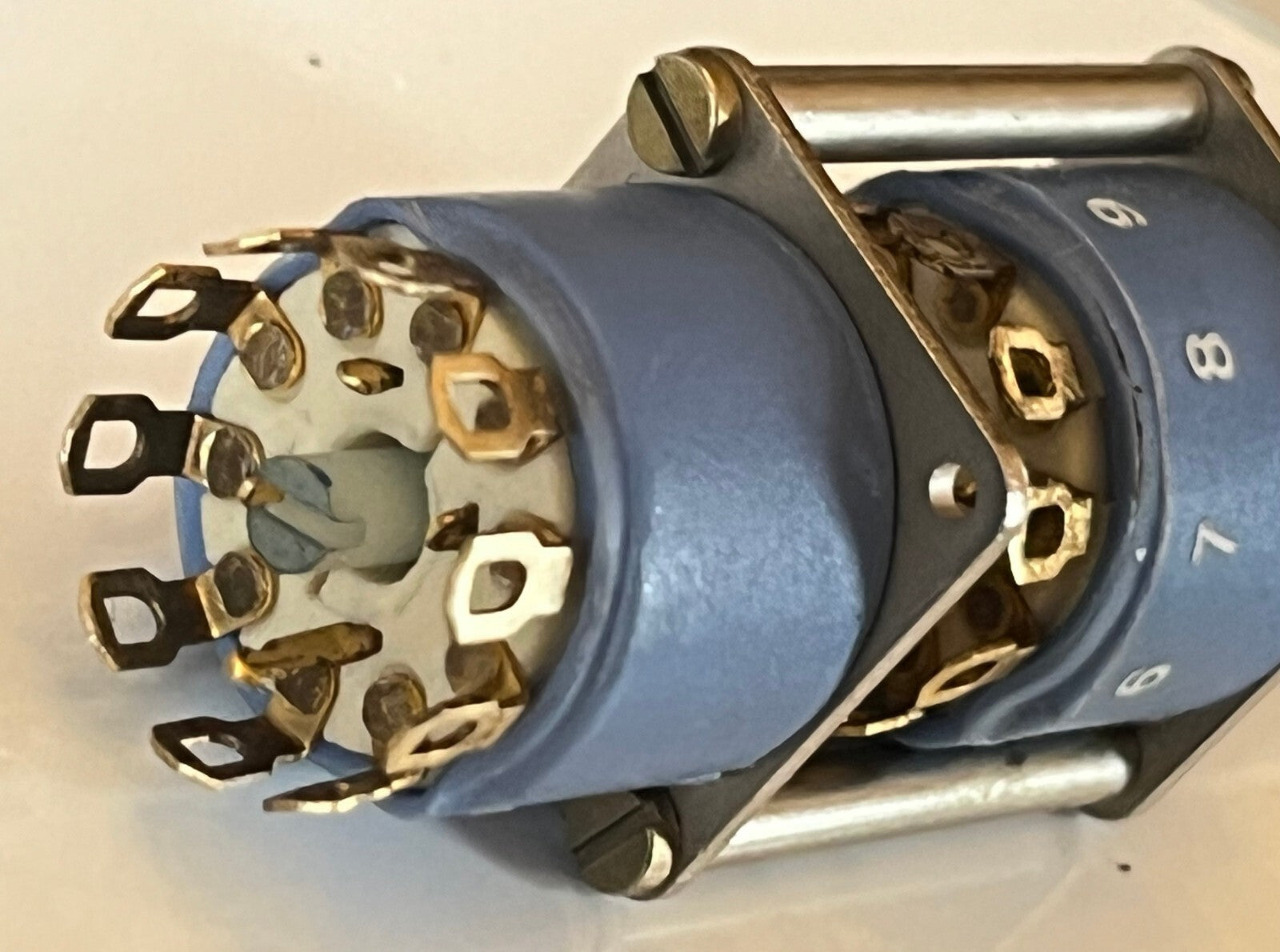

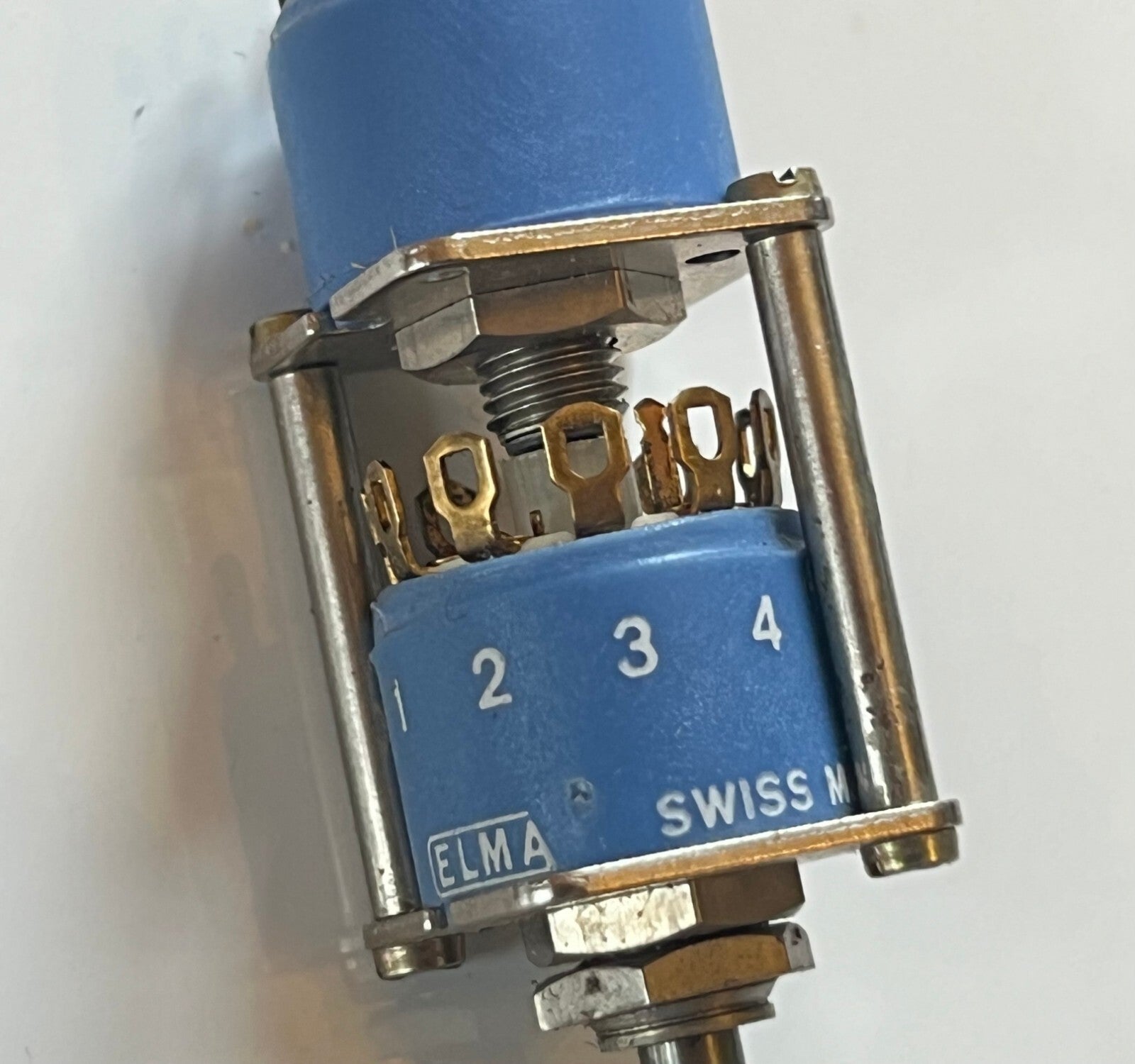

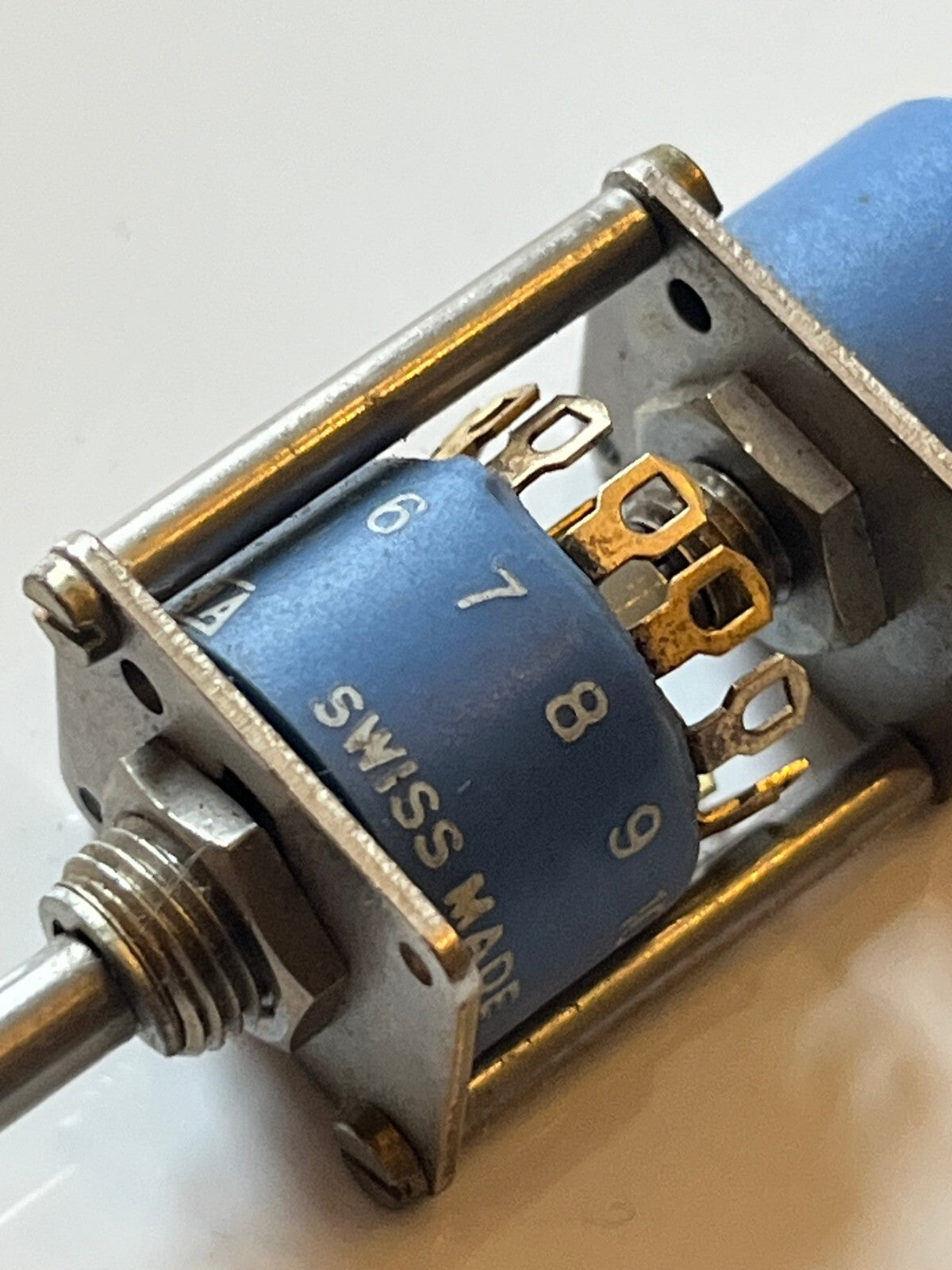

Manufactured by Elma in Switzerland as part of their type 01 series of miniature rotary switches, these are a beautifully crafted very high quality rotary selector switch, double pole (2 ganged ) 10 way, with heavily gold plated contacts.

There is no stop position on these switches, so when turned they turn continuously through 360 degrees.

These are vintage new old stock from the 1980's, the gold plating back then was considerably thicker than is found on the modern day counterparts.

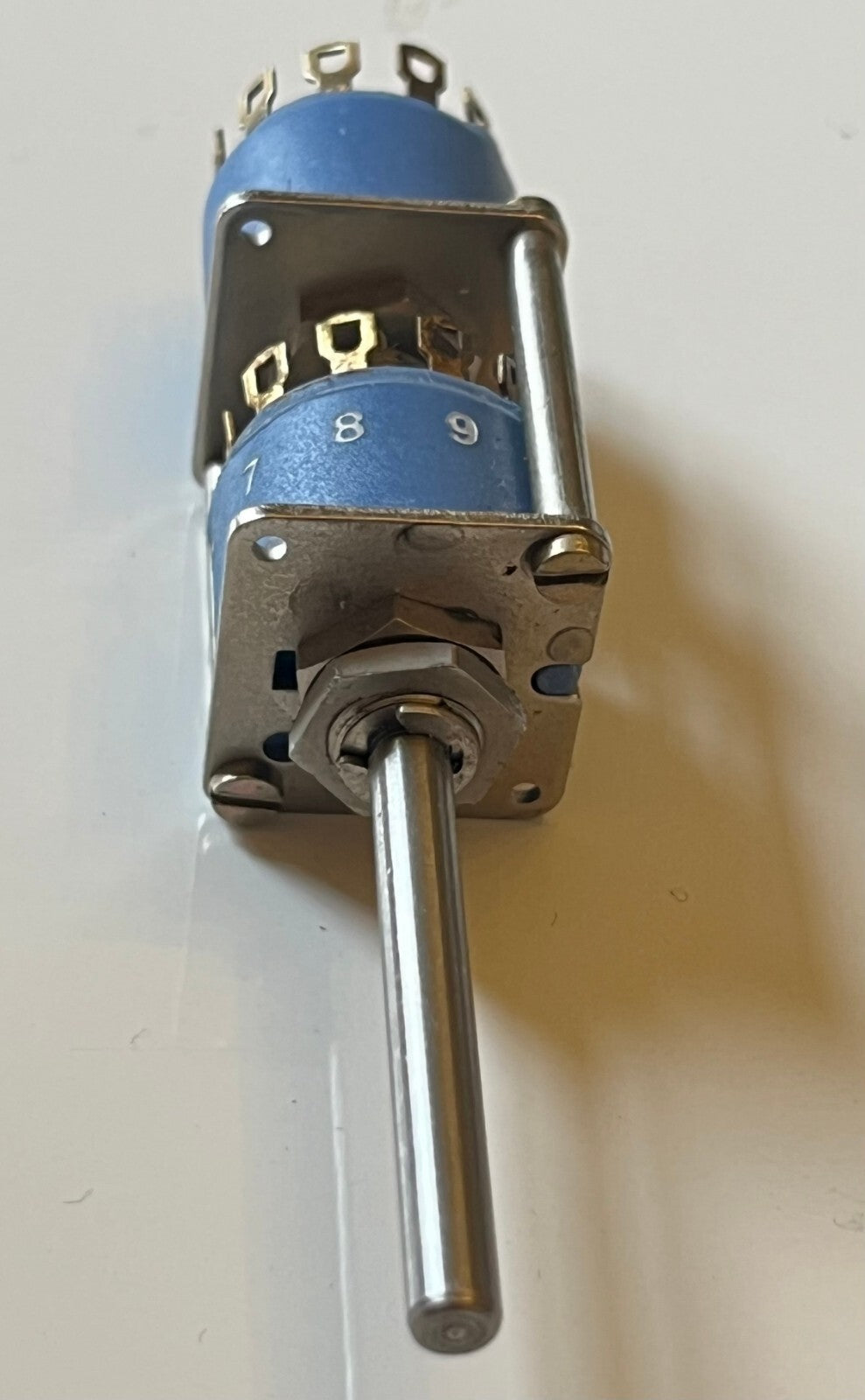

Designed to be panel mounted through a 8mm panel hole with a 4mm round shaft.

Perfect for signal control where loss and noise are premium factors.

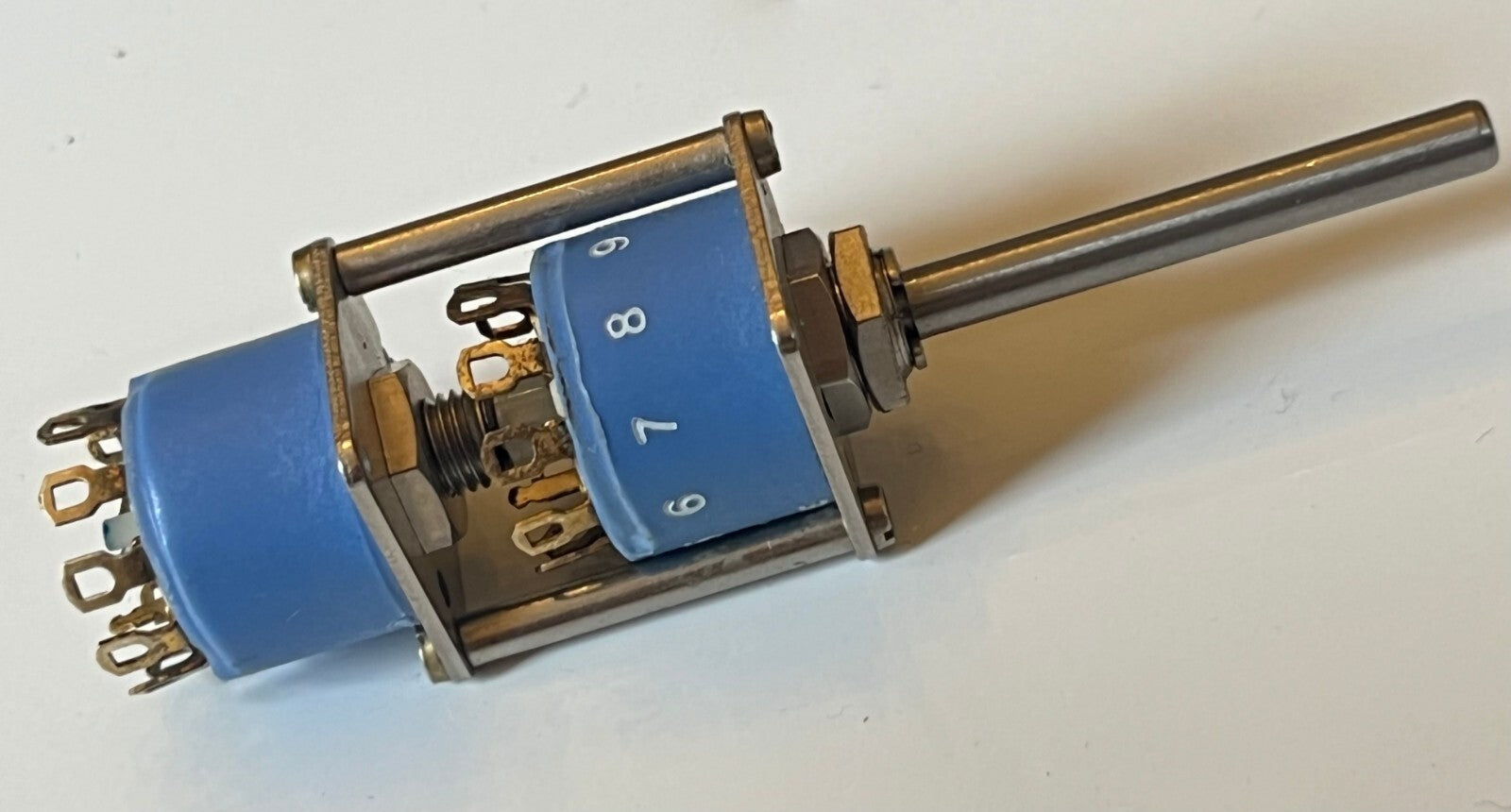

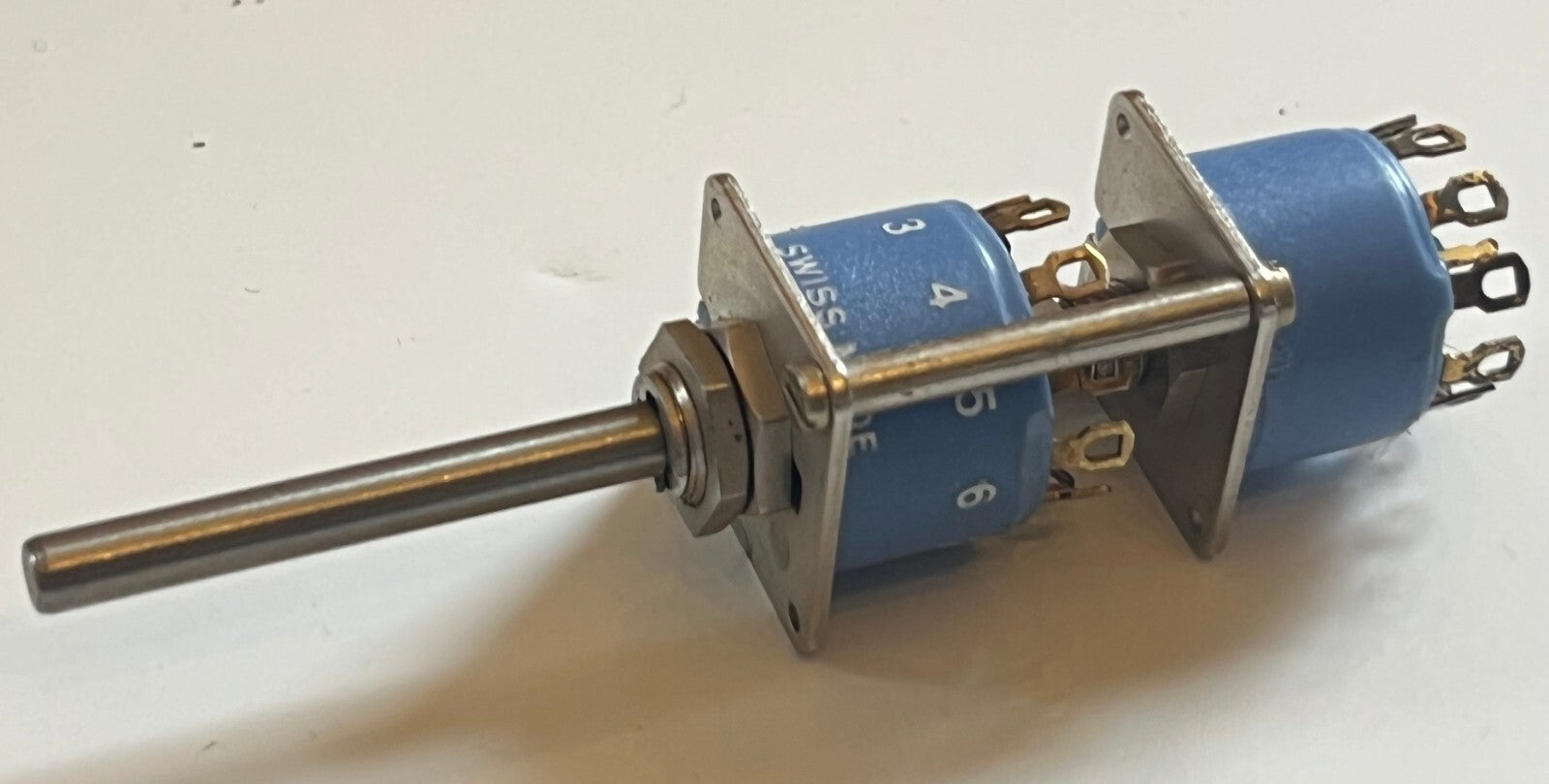

Dimensions are roughly 20mm x 18mm, overall length including the long shaft is 80mm, the long shaft is 30mm long and of course can be cut down to suit.

Full specifications can be found by searching the internet for Elma series 01 rotary switch

Offered here at a fraction of the manufacturers price.

 Priced and supplied individually, each (x1)
