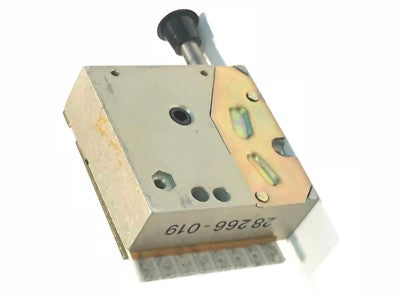

10 POSITION MILITARY PUSH WHEEL SWITCH 28266-019 fd7b13

MILITARY 10 POSITION LEVER SWITCH

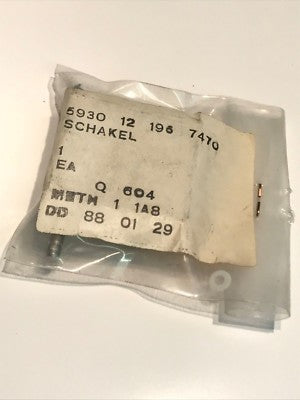

These are a specialist switch, manufactured, to military specifications (NSN 5930-12-196-7470).

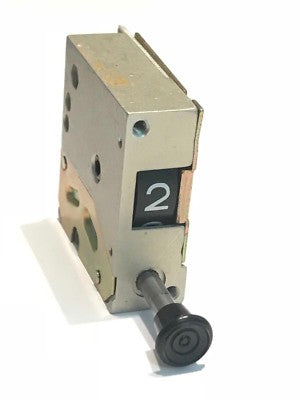

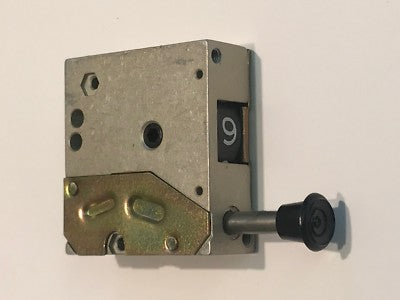

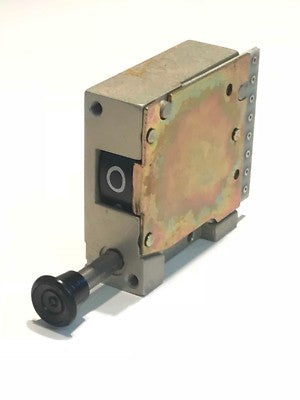

They are a 10 position  - 0 to 9 - push thumb-wheel switch with a very positive action, pushing the button in by about 7mm moves the switch onto the next position. When the switch is incremented past 9 it returns to 0.
There is no stop, the switch just continues cycling through the positions returning to 0 after 9.

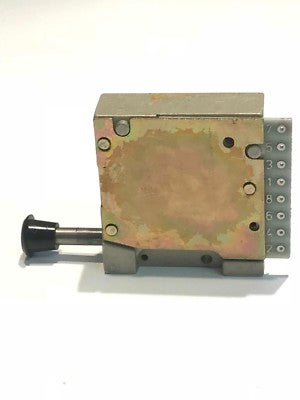

The main body dimensions are 37mm high x  35mm deep plus connections (41mm including the connections)  x 13.5mm wide. The distance between the 2 mounting holes is 30mm. The actuator lever extends from the front of the switch by 18mm and the knob is 9mm diameter.

 Priced and supplied each, individually x1.
