HIGH CURRENT 6.5 µH AXIAL INDUCTOR CHOKE (x1) FD6J35

HIGH CURRENT 6.5 µH AXIAL INDUCTOR CHOKE (x1) FD6J35

£2.00
£2.00
Sale Sold out
Taxes included.

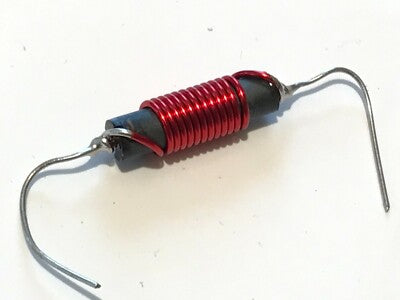

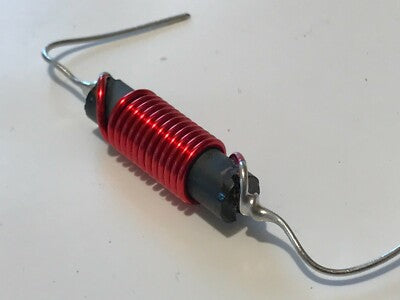

HIGH CURRENT 6.5 µH CHOKE

Manufactured by ECM, these are a high power 6.5 µH axial wound copper on high saturation ferrite bobbin which allows high inductance with low DC resistance, the high resistivity core offers very high parallel resistance, resulting in maximum coil performance.

6.5 µH
  0.10 Ohm resistance
Dimensions are  27mm x 8.5mm diameter with 30mm leads.

They are protected by flame retardant UL type VW-1 per MIL-I-23053/5, class 3 requirements polyolefin tubing.

These are new date code lead free components.

Priced and supplied each x 1, with quantity discounts available
